471.3-125-B14 GN 471.3-B Boring

471.3-125-B14

GN 471.3-B Boring

Aluminium
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 471.3

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 471.3-125-B14
l
125
d1 H7 bore
B 14
d2
32
d3
35
h1
34
h2
22
h3
14
h4
19.5
h5 ≈
67.5
Ø Handle
23
220

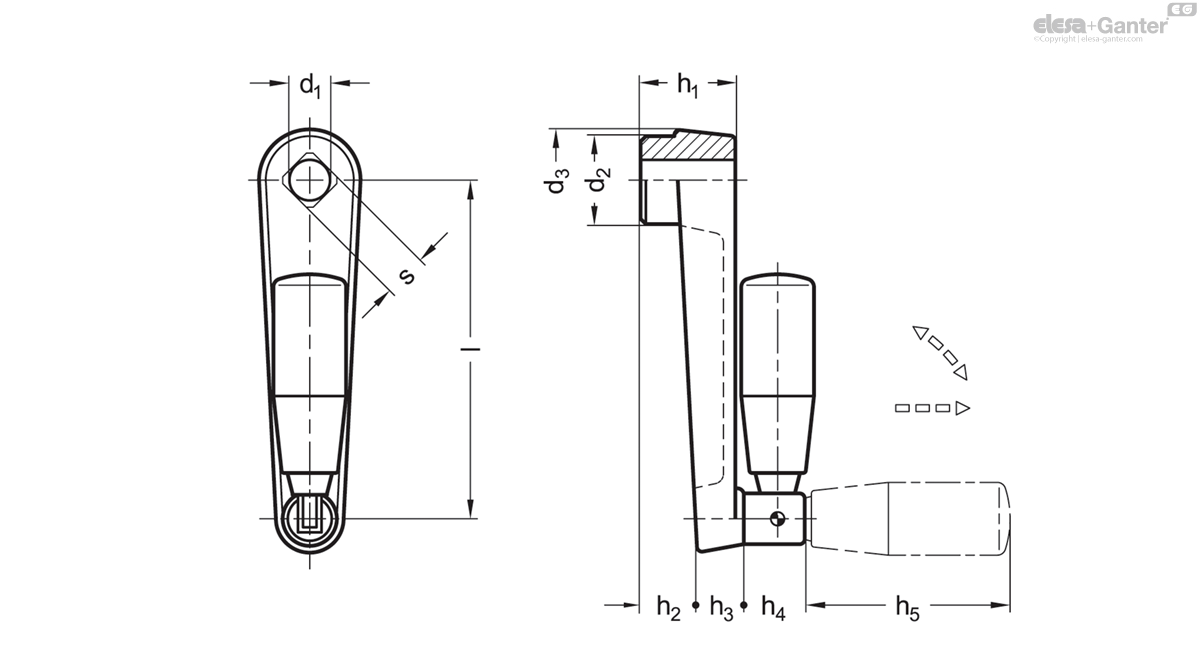

471.3-125-B14 drawing

Body

Aluminum

  • Powder coated
  • Black, textured finish
  • Contact face of hub machined

Retractable Handle GN 598.3

Plastic, Polyamide (PA)

  • Black, shiny finish
  • Retractable Mechanism
  • Steel, blackened

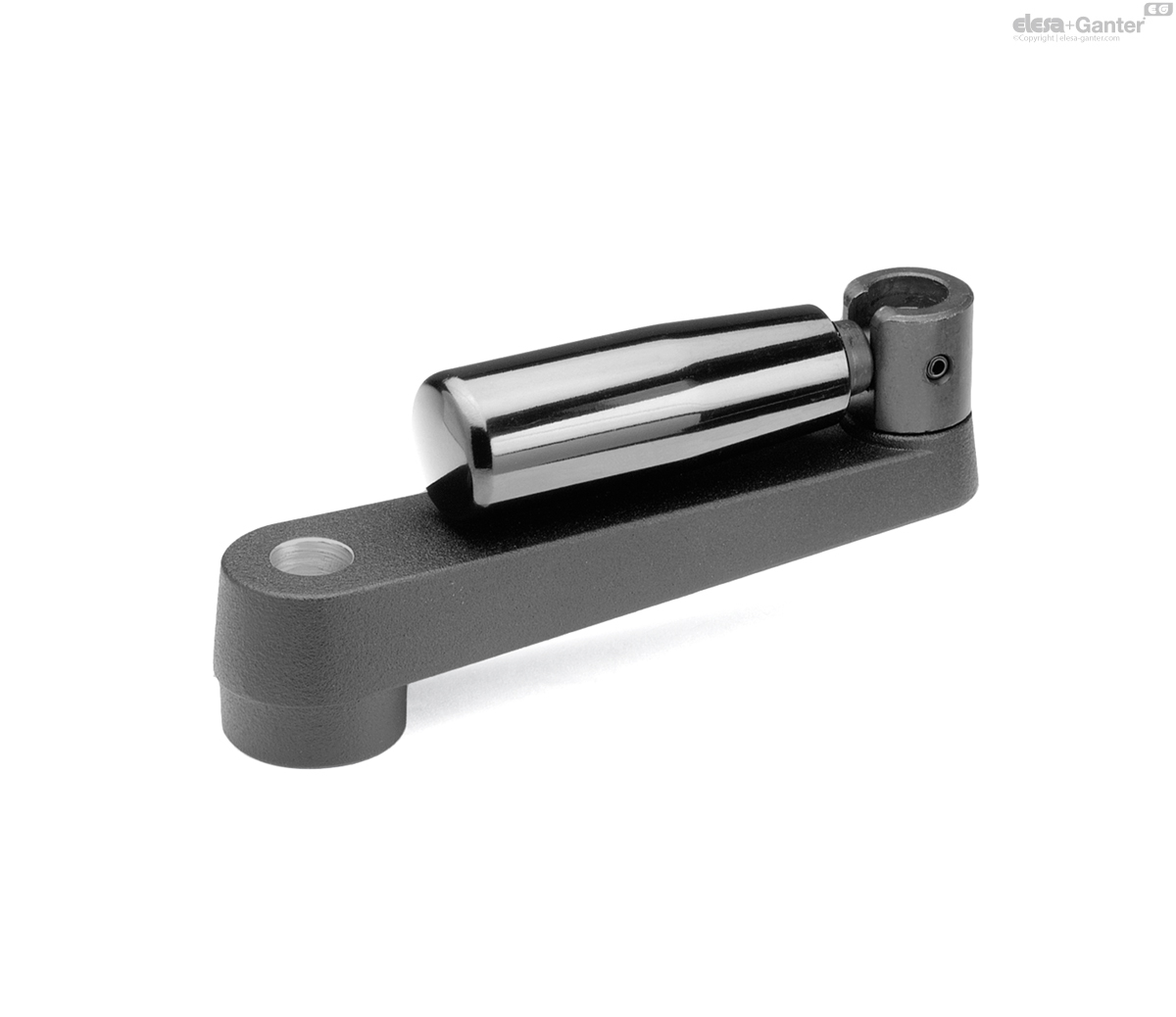

The handle of the cranked handles with retractable handle GN 471.3 is locked in a tapered bore in the operating position.

For tilting, the handle must first be pulled out of the taper in axial direction.

A pressure spring holds the handle in both end positions. When folded out, it automatically re-engages.

  • (Retractable Mechanism Stainless Steel)
