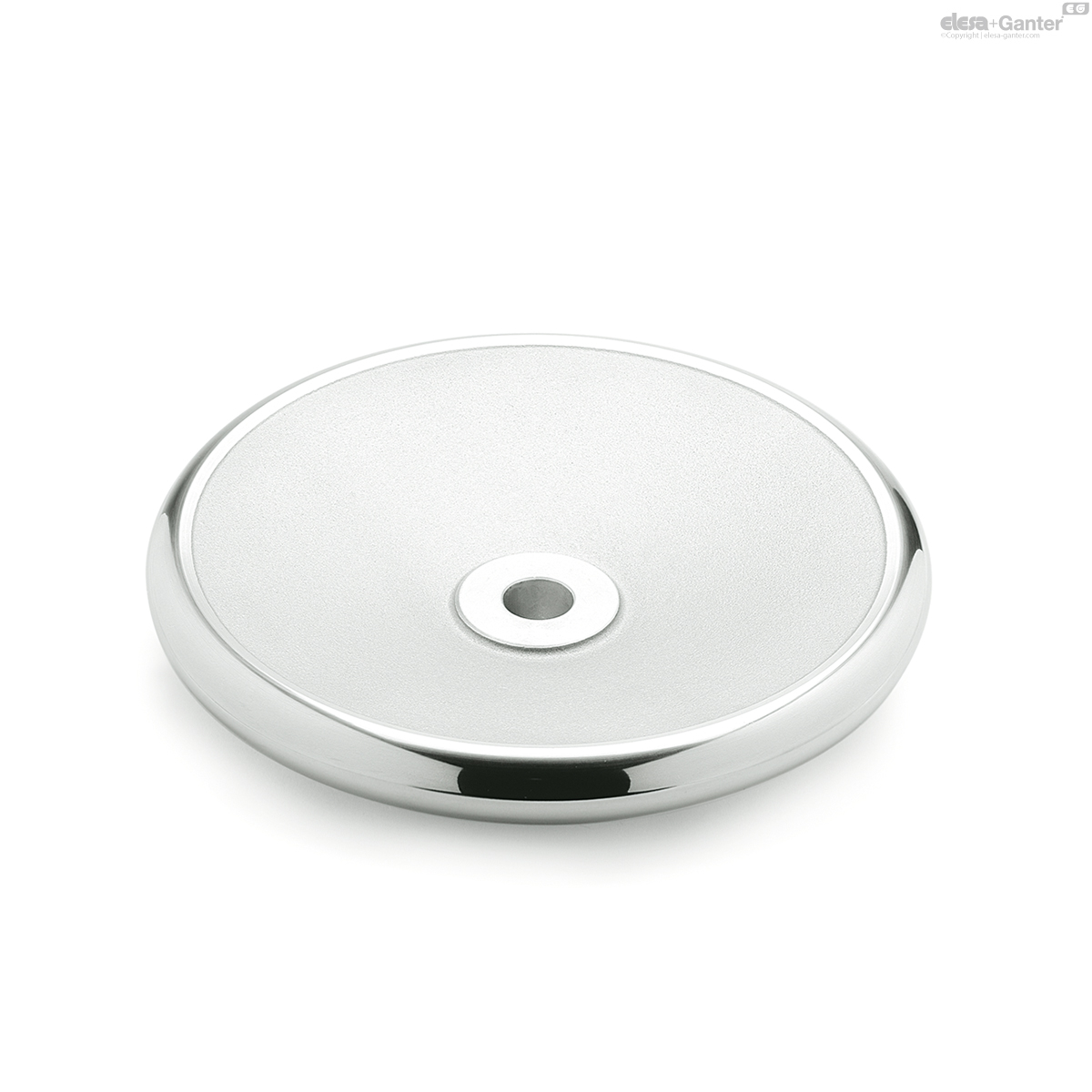

3670-250-B26 DIN 3670-B Zonder spiebaan

3670-250-B26

DIN 3670-B Zonder spiebaan

Aluminium
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van DIN 3670

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
DIN 3670-250-B26
d1
250
d2H7 Bore
26
b
26
d3
48
l1
28
l2 ≈
50
1582
3670-250-B26 drawing

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9

Aluminum

  • Hub machined
  • Rim
  • turned and polished
  • Radial and axial runout of the rim < 0.4
  • Unmachined body shot-blasted

Disk handwheels DIN 3670 have recessed grips at their back. As a rule they are supplied without handle, but the mounting of a handle is possible.

The handwheel diameter d1=80 and d1=400 are not provided in the official standard sheet.

  • GN 184 Countersunk Washers (for Axial Fixing)
