3670-160-B16 DIN 3670-B Zonder spiebaan

3670-160-B16

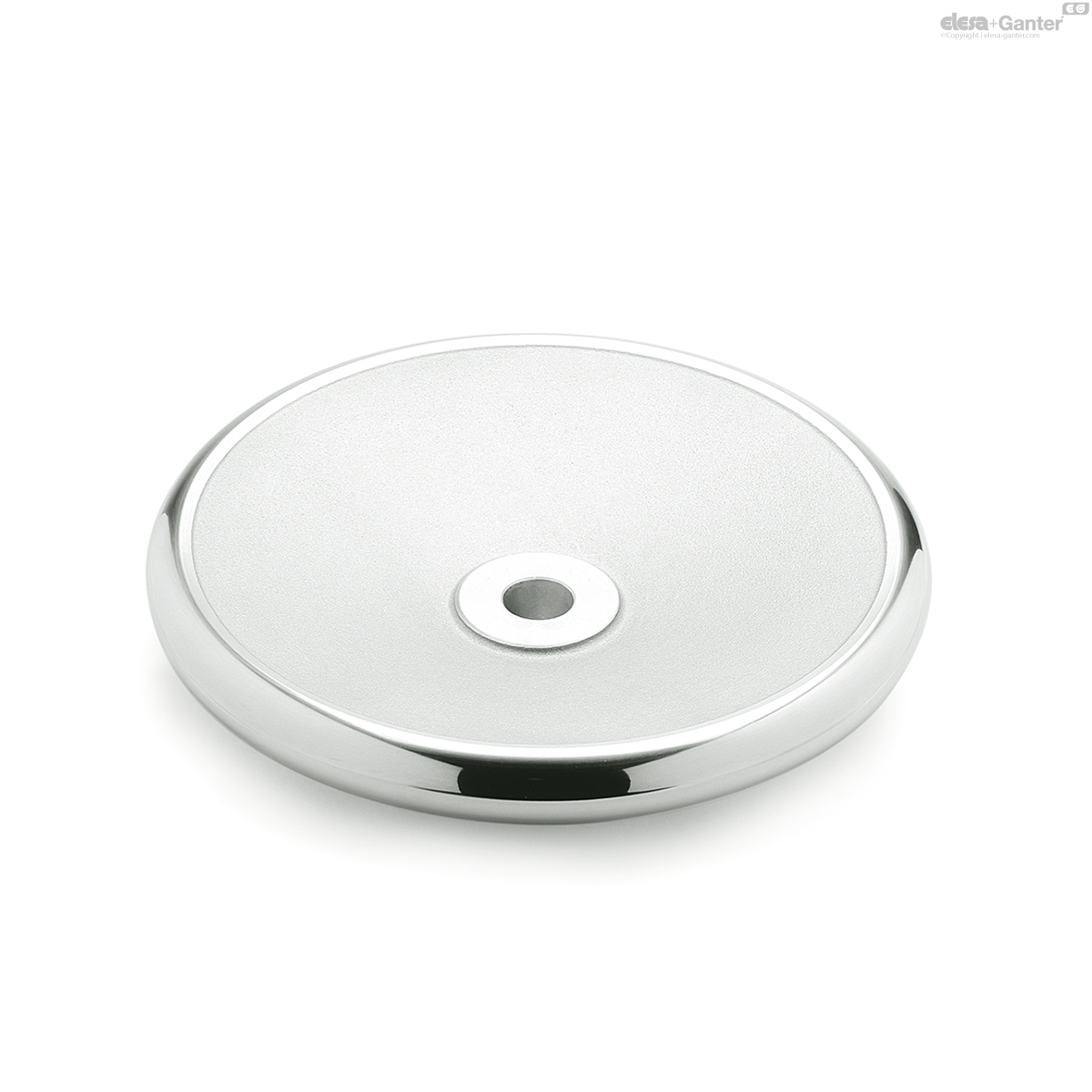

DIN 3670-B Zonder spiebaan

Aluminium
  • RoHS

Lt: 1-2 weken Alle maten en varianten van DIN 3670

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
DIN 3670-160-B16
d1
160
d2H7 Bore
16
b
18
d3
36
l1
20
l2 ≈
40
510
3670-160-B16 drawing

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9

Aluminum

  • Hub machined
  • Rim
  • turned and polished
  • Radial and axial runout of the rim < 0.4
  • Unmachined body shot-blasted

Disk handwheels DIN 3670 have recessed grips at their back. As a rule they are supplied without handle, but the mounting of a handle is possible.

The handwheel diameter d1=80 and d1=400 are not provided in the official standard sheet.

  • GN 184 Countersunk Washers (for Axial Fixing)
