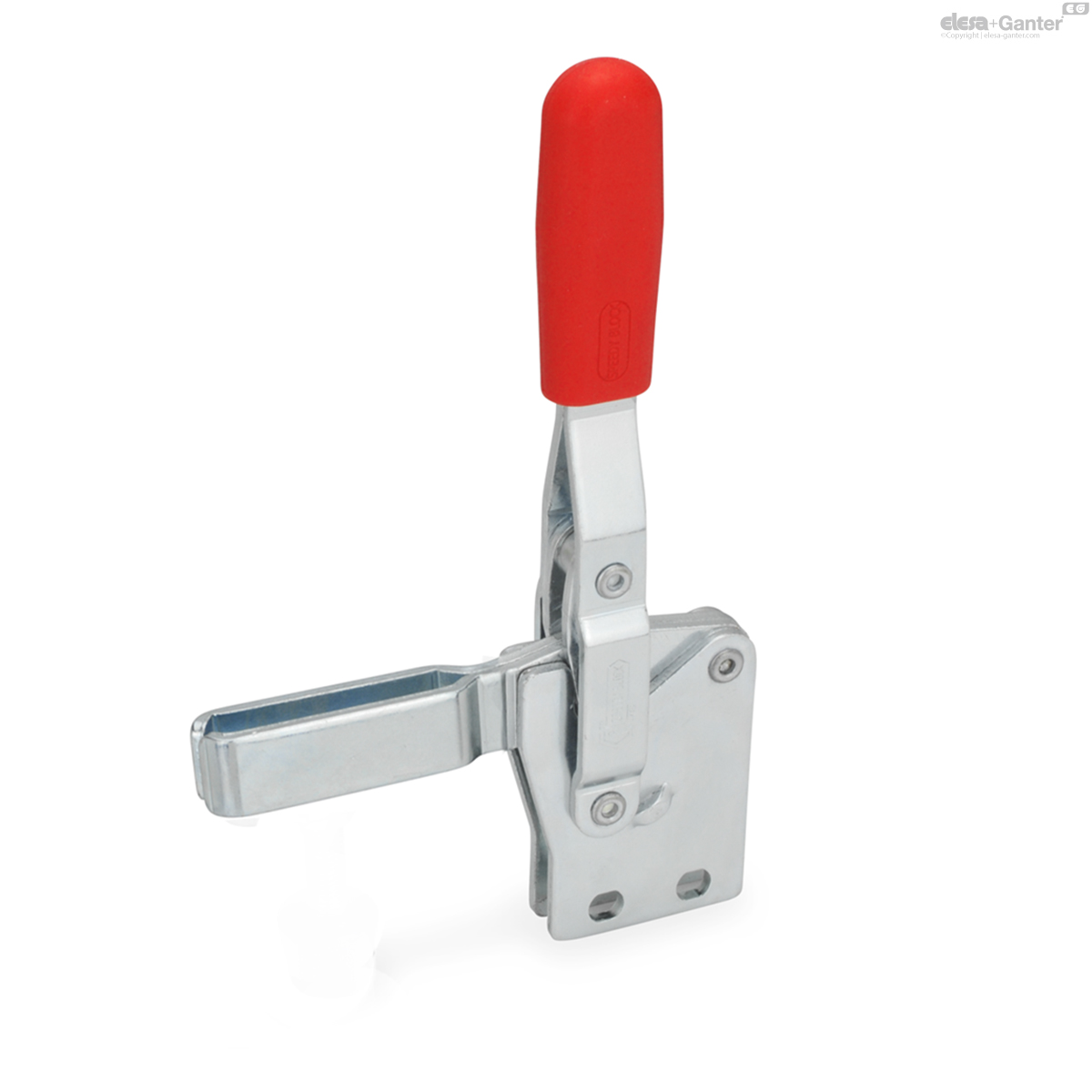

810.1-530-B GN 810.1 Staal

810.1-530-B

GN 810.1 Staal

Staal/roestvrij staal, met verticale montagebasis
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Lt: 1-2 weken Alle maten en varianten van GN 810.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 810.1-530-B
Size
530
FH in N
4500
a ≈
90
b1
77
b2
18
b3
10
b4
12.5
d1
M 12
d2 ≈
12.5
h1 ≈
337
h2
117.5
h3
32
l1 ≈
223
l2 ≈
128
m1
50
m2
51
m3
12.5
m4
12.5
r ≈
212
1870
810.1-530-B drawing
Types
  • Type B: U-bar version, with two flanged washers
  • Type BC: U-bar version, with two flanged washers and GN 708.1 spindle assembly
  • Type F: Solid bar version, with clasp

Version in Steel

  • Case-hardened Steel C10, zinc plated, blue passivated
  • Bearing pins tempered
  • Bearing rivets (for size 230 and up), case-hardened

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A-

  • Steel, zinc plated
  • Rubber tip 85 Shore A
Version in Stainless Steel NI

Stainless Steel AISI 304

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

  • Stainless Steel AISI 304
  • Rubber tip 85 Shore A

GN 810.1 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Vertical acting toggle clamps in the U-bar version with two flanged washers (Type B) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type BC.

Type F version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 clamp mounts to hold the work piece in place.

  • Spindle assemblies-
  • GN 801 clamp mounts for toggle clamps (for Type B)
  • GN 809 clamp mounts for toggle clamps (for Type F)
