240.2-M10 GN 240.2 Snelkoppelingen

240.2-M10

GN 240.2 Snelkoppelingen

met hoekige en radiale offset-compensatie
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 240.2

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 240.2-M10
d1
M10
d2
21
x
0.7
e
44
l1 ≈
81
l2
43
l3
30.5
l4
22
l5 min.
24
l6
16
A/F 1
41
A/F 2
18
A/F 3
12
x Max. radial off-set
0.7
Max. pull-/push
load in kN
6.5
403

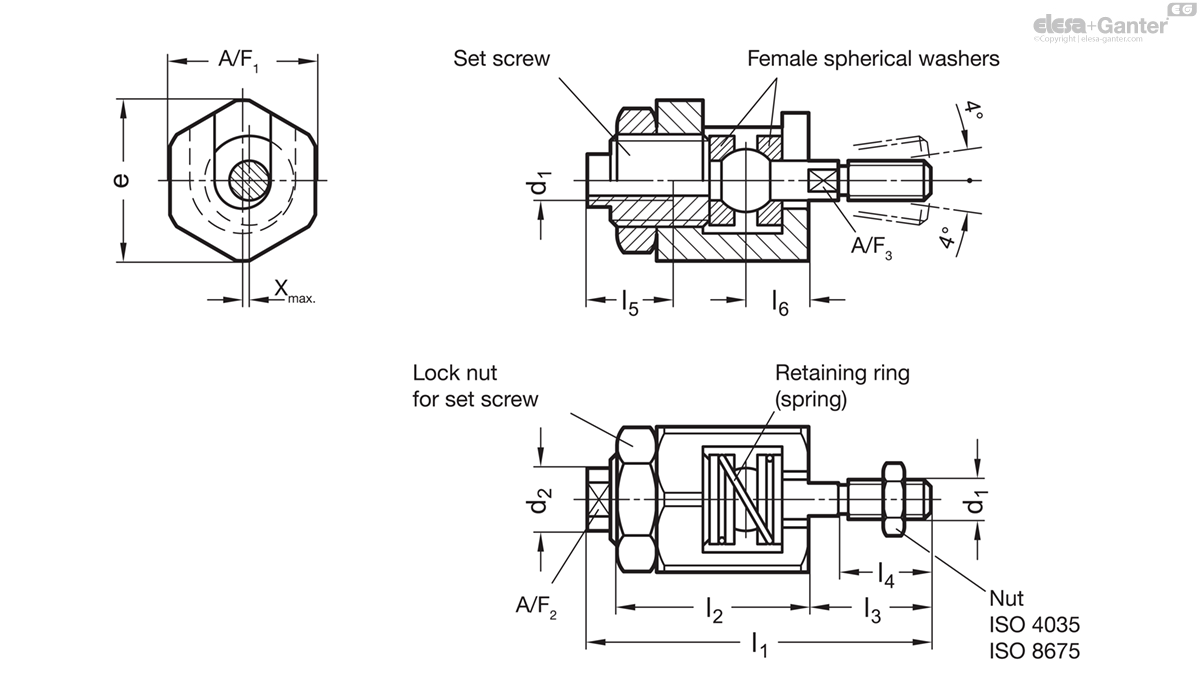

240.2-M10 drawing

Steel

  • tempered
  • phosphated

Retaining ring (spring)

Stainless Steel AISI 631

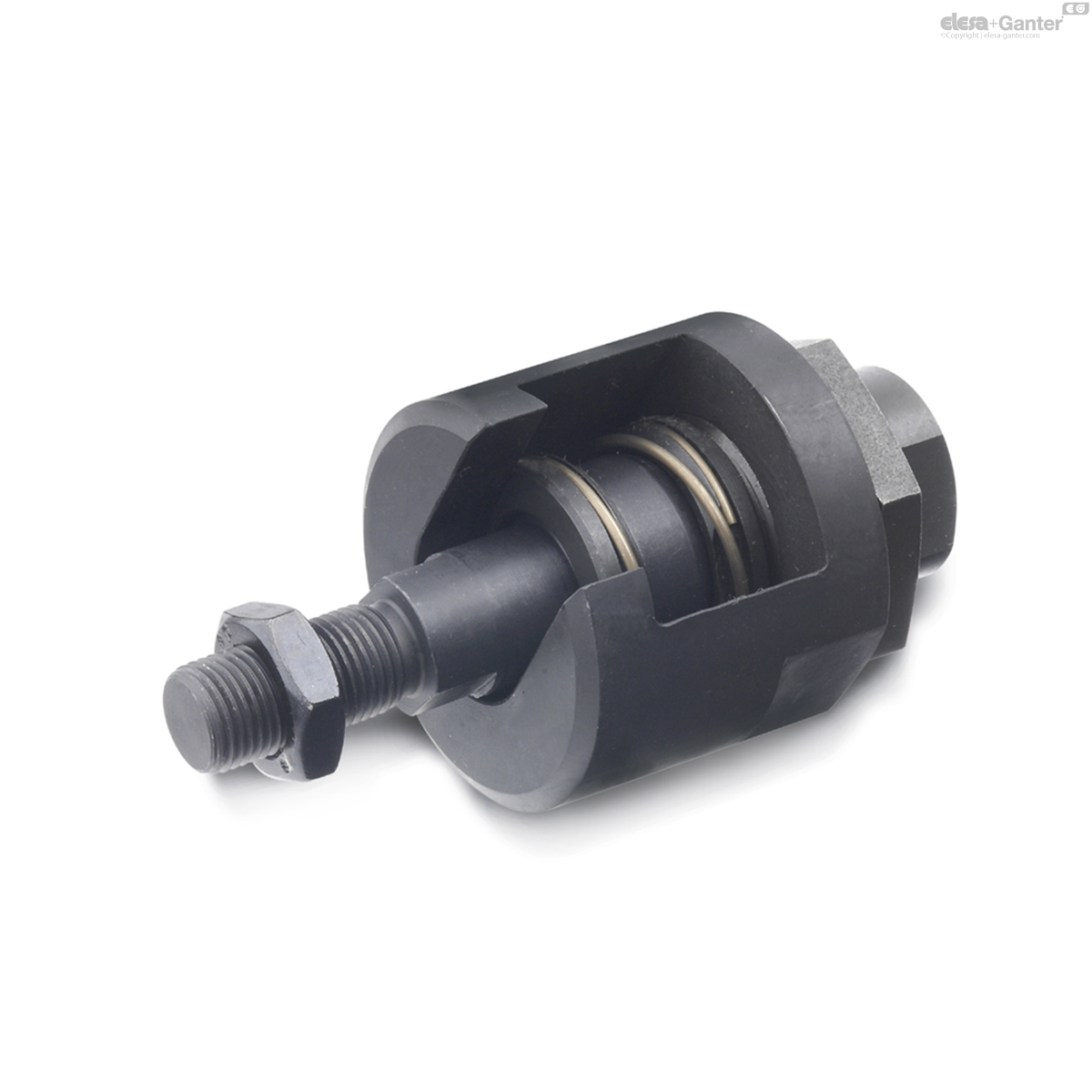

Quick-fit couplings GN 240.2 have been designed to compensate a radial and angular off-set. Furthermore they are axially freely adjustable via the set screw.

A typical application is the axial link to a piston rod of a cylinder operating in any type of fixture or system.

The coupling is renowned by its very compact construction without any loose components.

It is not designed for the transfer of torque.
