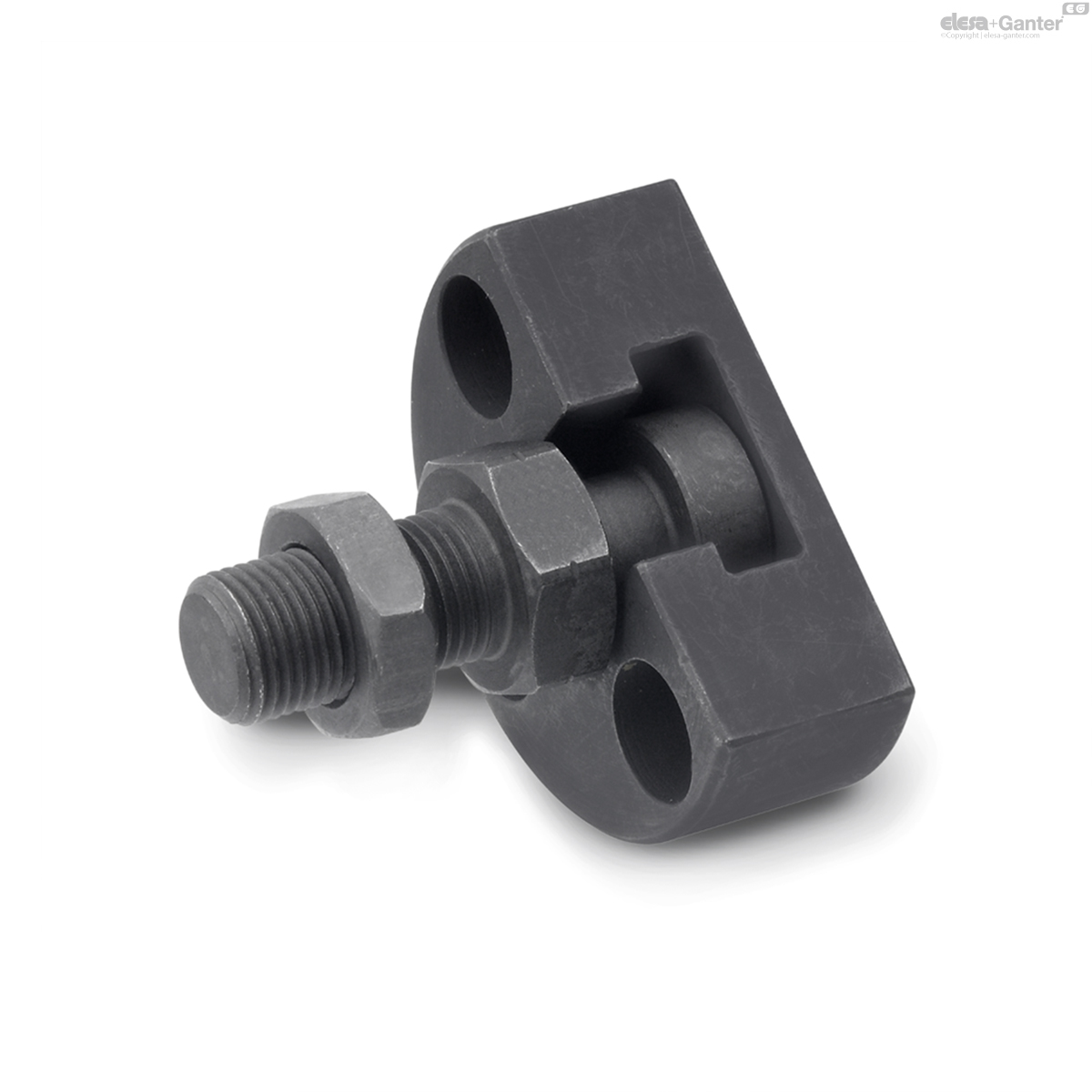

240.1-M12X1,25-B GN 240.1 Snelkoppelingen

240.1-M12X1,25-B

GN 240.1 Snelkoppelingen

met radiale offset-compensatie
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 240.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 240.1-M12x1,25-B
d1
M12x1.25
d2
55
x
Max. shaft
off set
0.8
d3
6.5
e ≈
21
k1
10
k2
19
k3
38
l1 ≈
53
l2
20.5
l3 min.
17.5
A/F
19
x Max. radial off-set
0.8
Max. pull-/push
load in kN
10
276
240.1-M12X1,25-B drawing

Types

  • Type A: with male thread
  • Type B: with female thread

Steel

  • tempered
  • phosphated

Quick-fit couplings GN 240.1 have been designed for the purpose of compensating a radial shaft off-set (x). A typical application is the axial link to a piston rod of a cylinder operating in any type of fixture or system.

The coupling is not designed for the transfer of torque.
