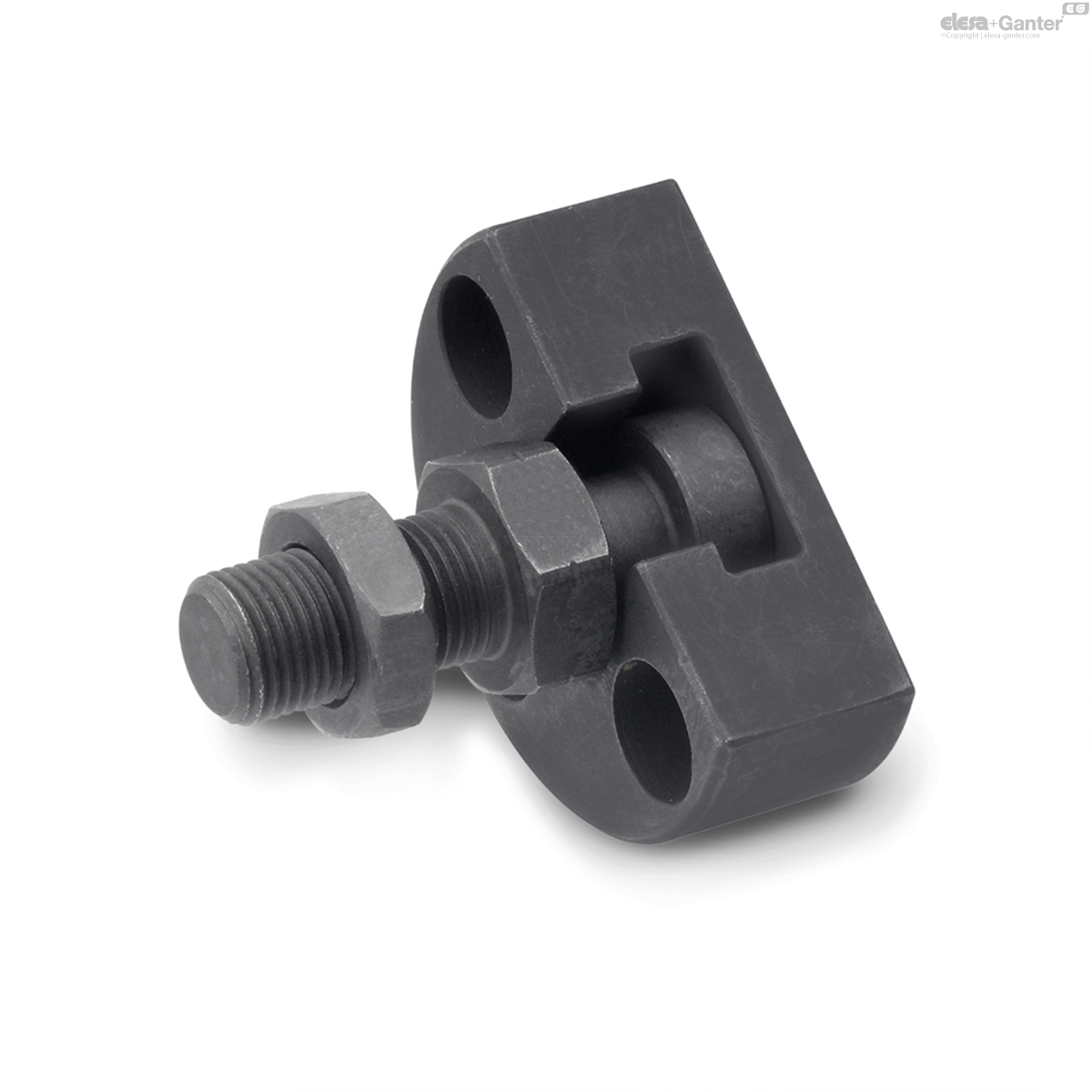

240.1-M10-A GN 240.1 Snelkoppelingen

240.1-M10-A

GN 240.1 Snelkoppelingen

met radiale offset-compensatie
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 240.1

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 240.1-M10-A
d1
M10
d2
50
x
Max. shaft
off set
0.7
d3
6.5
k1
9
k2
17
k3
34
l1 ≈
43
l2
16
l3 min.
16
l4
20
A/F
17
x Max. radial off-set
0.7
Max. pull-/push
load in kN
6.5
173
240.1-M10-A drawing

Types

  • Type A: with male thread
  • Type B: with female thread

Steel

  • tempered
  • phosphated

Quick-fit couplings GN 240.1 have been designed for the purpose of compensating a radial shaft off-set (x). A typical application is the axial link to a piston rod of a cylinder operating in any type of fixture or system.

The coupling is not designed for the transfer of torque.
