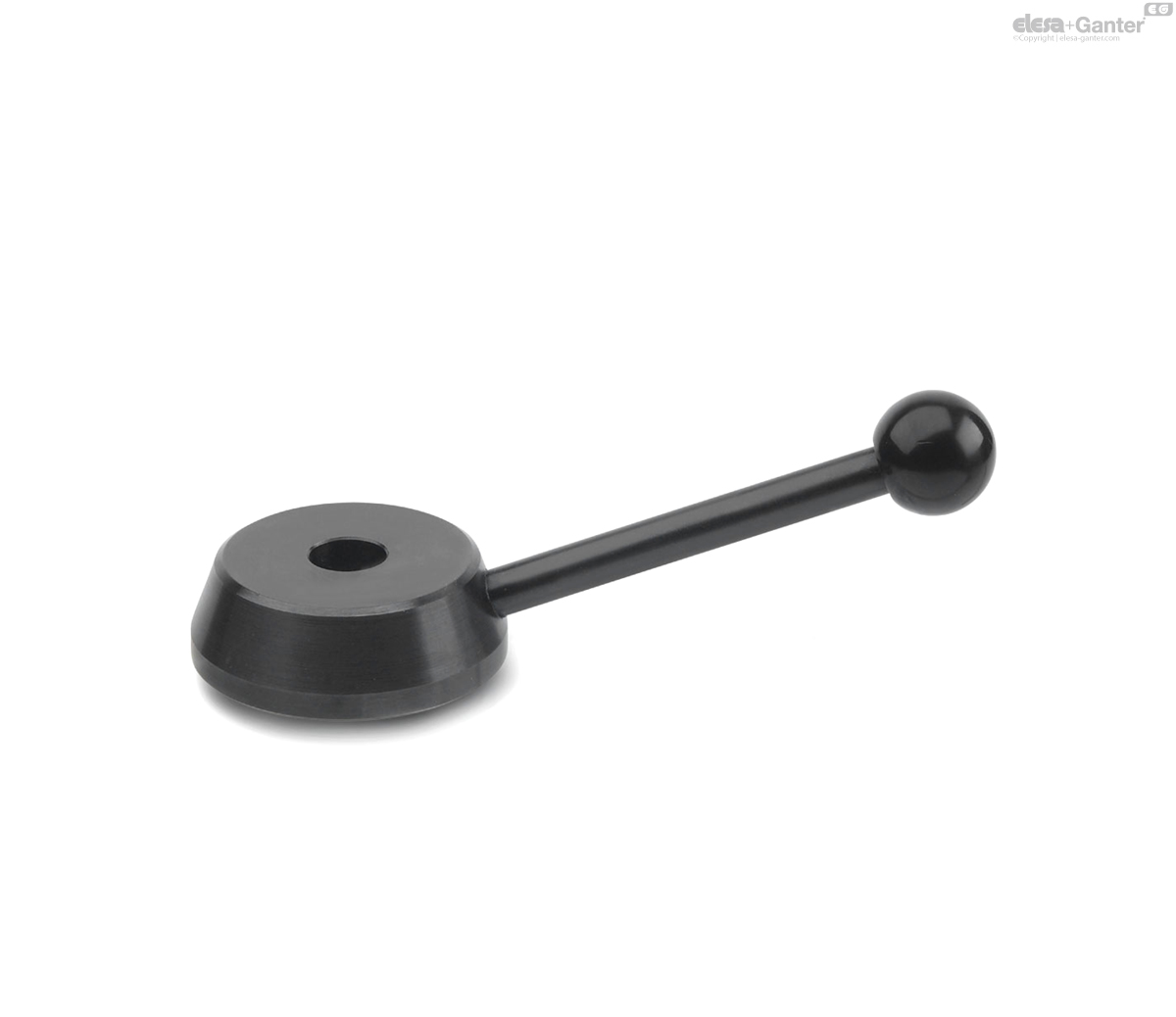

211-80-B20 GN 211-B Zonder spiebaan

211-80-B20

GN 211-B Zonder spiebaan

Staal, gezwart
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 211

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 211-80-B20
d1
80
d2 H7
B 16
d3
14
d4
35
h1
24
h2
6
h3 ≈
74
Length l≈
138
951
211-80-B20 drawing

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9
  • Version V: With square DIN 79

Hub / Shaft

Steel

Blackened

Ball knob DIN 319

Plastic, phenolic resin (PF)

Black, shiny finish

Control levers GN 211 can be used in connection with indexing elements, grooves for angle limitations and such like due to their comparably big hub diameter.

Spring plungers as well as indexing plungers can be used as indexing elements.
