GN 000.5 Koppelhulpstukken
Lt: 1-2 weken Alle maten en varianten van GN 000.5
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens

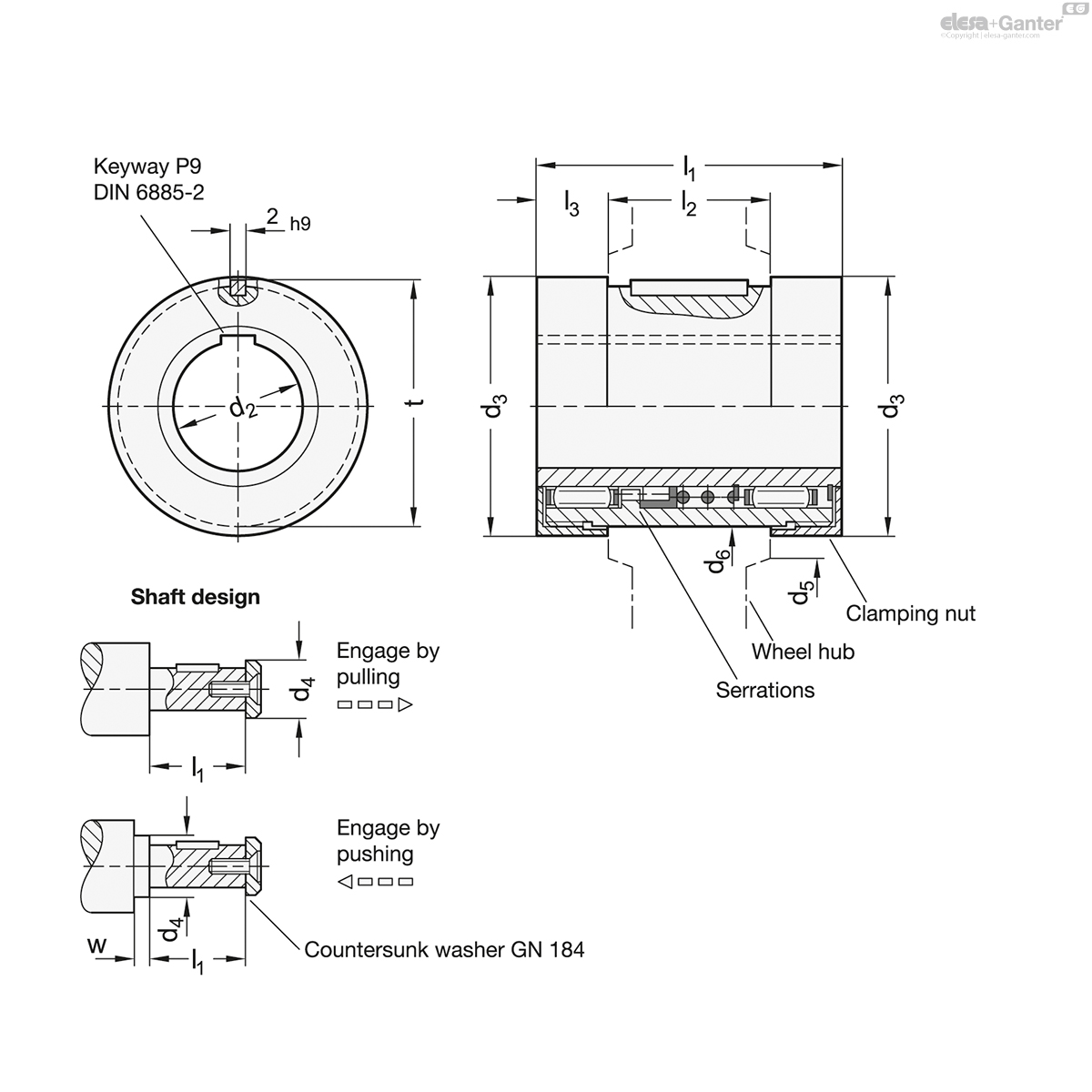

- Code
- GN 000.5-1-K12
Nominal size- 1
- d1 Ø Handwheel
GN 321
GN 322
GN 323 - 125 140
- d2 H7 Bore with keyway
- K 12
- d3
- 29
- d4 max.
- 17
- d5 Minimum-Ø
of handwheel hub - 29
- d6 -0.05 Bore Ø of handwheel hub H7
- 25
- l1
- 42
- l2 ±0.1 Length of handwheel hub
- 18 19
- l3
- 12
- t
- 26
- w min.
- 4
- 130
Steel
- Hardened
- Bearing surfaces ground
The use of needle bearings and the hardened bearing surfaces make the clutch engagement extremely easy. This is also assisted by the finer teeth of the clutch and the increased length of the coupling attachment.
Its suitability for high shaft speeds, especially when these are maintained for long periods, is a further advantage of the needle bearing.
An oil-hole is provided which in the completely assembled safety handwheel connects with the handwheel hub.
The coupling attachment is axially secured in the handwheel hub by a clamp nut.
