GN 900.6 Draaitafels
Lt: 1-2 weken Alle maten en varianten van GN 900.6
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens

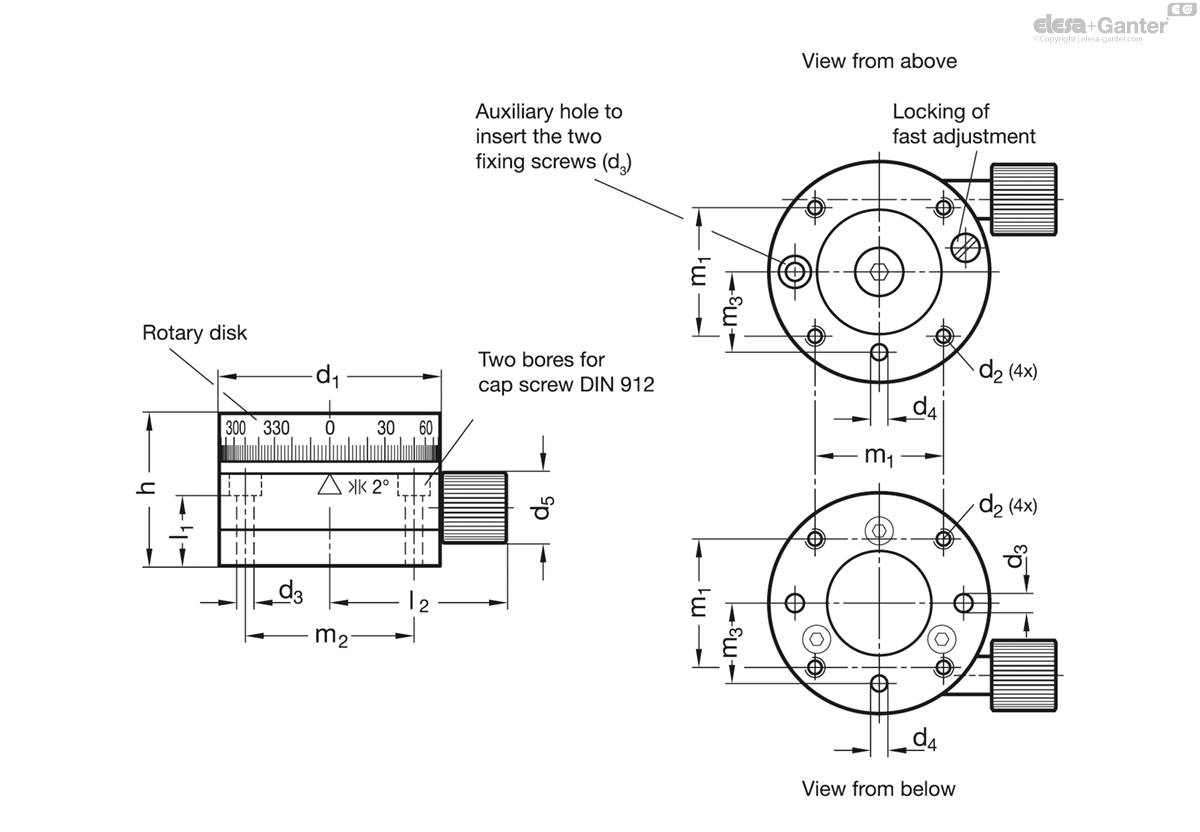

- Code
- GN 900.6-80
- d1 h7
- 80
- d2
- M 5 - 8
- d3 Screw
- M 5
- d4 H7
- 4 - 10
- d5
- 23
- h
- 45
- l1
- 24
- l2
- 59
- m1
- 40
- m2
- 60
- m3 ±0.02
- 30
- useable forH
mounting platesH
GN 900.4H
Size - 80 120
- 1800
Rotary disc
Stainless Steel AISI 303
all other parts
Steel (some zinc plated)
ad/ or Brass
Control knob
Aluminium
black anodized
Rotary tables GN 900.6 is a turning unit for manual operation. To get the turning movement we use a high quality worm gear.
The rotary table is also fitted with a fastadjustment and for this purpose a grub screw on the side of the rotary disc has to be released. In addition the rotary disc can also be clamped via an easily accessible grub screw. In both cases internal conically shaped arresting components come into use.
- Adjustable slide units GN 900
- Mounting plate GN 900.4 (for clamping to an adjustable slide unit)
| d1 | Rotating range | Concentricity tolerance | circular runout tolerance | max. entry torque MD | max. load capacity od rotary disc unclamped | max. load capactiy of rotary disc clamped MK | F max. in Newton |
| 55 | 0° | ± 0.02 | ± 0.02 | 1.5 Nm | 5 Nm | 10 Nm | 50 |
| 80 | 0° | ± 0.03 | ± 0.03 | 2.5 Nm | 5 Nm | 10 Nm | 100 |
