GN 900.6 Plateaux diviseurs rotatifs
Délai: 1-2 semaines Toutes les tailles et variantes de GN 900.6
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques

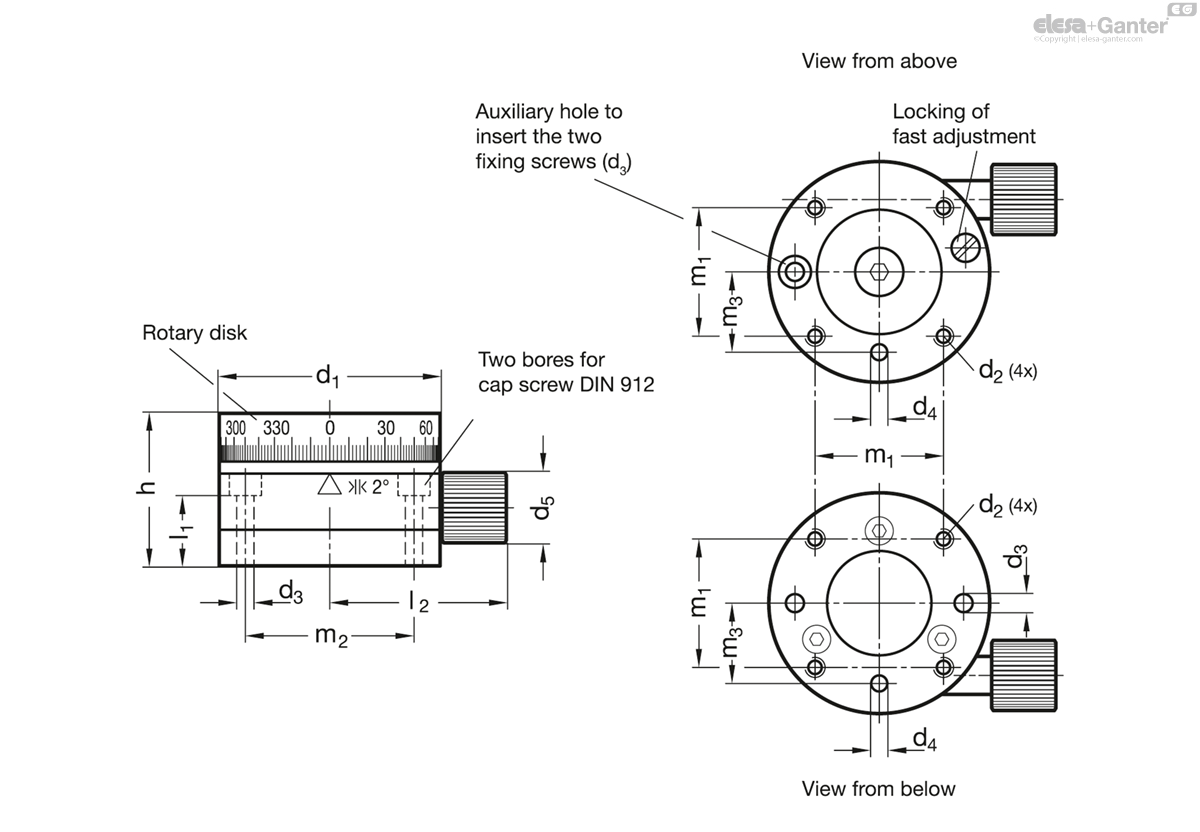

- Code
- GN 900.6-80
- d1 h7
- 80
- d2
- M 5 - 8
- d3 Screw
- M 5
- d4 H7
- 4 - 10
- d5
- 23
- h
- 45
- l1
- 24
- l2
- 59
- m1
- 40
- m2
- 60
- m3 ±0.02
- 30
- useable forH
mounting platesH
GN 900.4H
Size - 80 120
- 1800
Rotary disc
Stainless Steel AISI 303
all other parts
Steel (some zinc plated)
ad/ or Brass
Control knob
Aluminium
black anodized

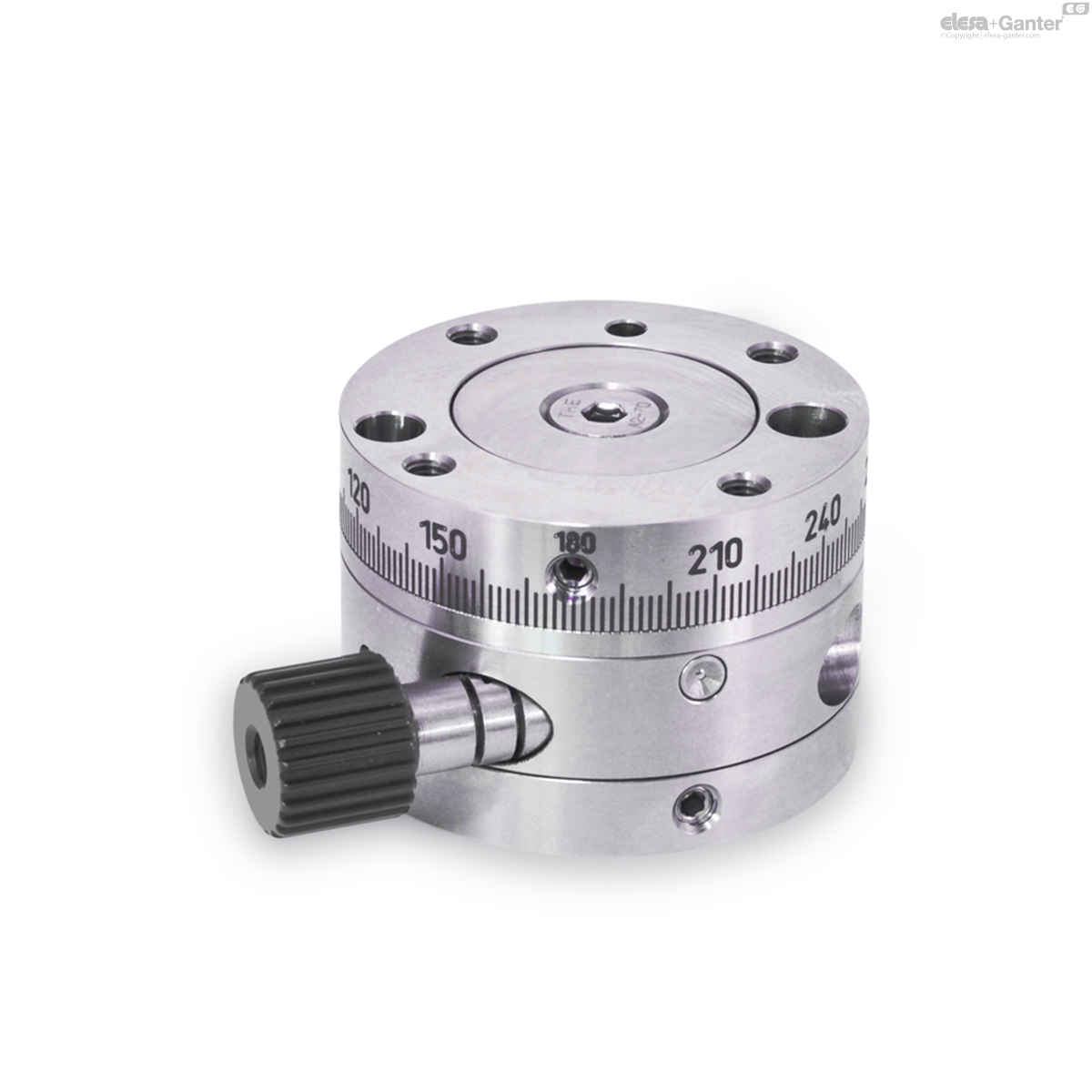

Rotary tables GN 900.6 is a turning unit for manual operation. To get the turning movement we use a high quality worm gear.
The rotary table is also fitted with a fastadjustment and for this purpose a grub screw on the side of the rotary disc has to be released. In addition the rotary disc can also be clamped via an easily accessible grub screw. In both cases internal conically shaped arresting components come into use.
- Adjustable slide units GN 900
- Mounting plate GN 900.4 (for clamping to an adjustable slide unit)
| d1 | Rotating range | Concentricity tolerance | circular runout tolerance | max. entry torque MD | max. load capacity od rotary disc unclamped | max. load capactiy of rotary disc clamped MK | F max. in Newton |
| 55 | 0° | ± 0.02 | ± 0.02 | 1.5 Nm | 5 Nm | 10 Nm | 50 |
| 80 | 0° | ± 0.03 | ± 0.03 | 2.5 Nm | 5 Nm | 10 Nm | 100 |
