GN 860-CPSauterelles pneumatiques

Bras de serrage fourchu , avec deux rondelles à bride et vis de serrage GN 708.1

avec base de montage horizontale

Technical datasheet

Bras de serrage fourchu , avec deux rondelles à bride et vis de serrage GN 708.1

GN 860-CP

Bras de serrage fourchu , avec deux rondelles à bride et vis de serrage GN 708.1

GN 860-EP

Bras de serrage solide , avec fermoir à souder

GN 860-AP

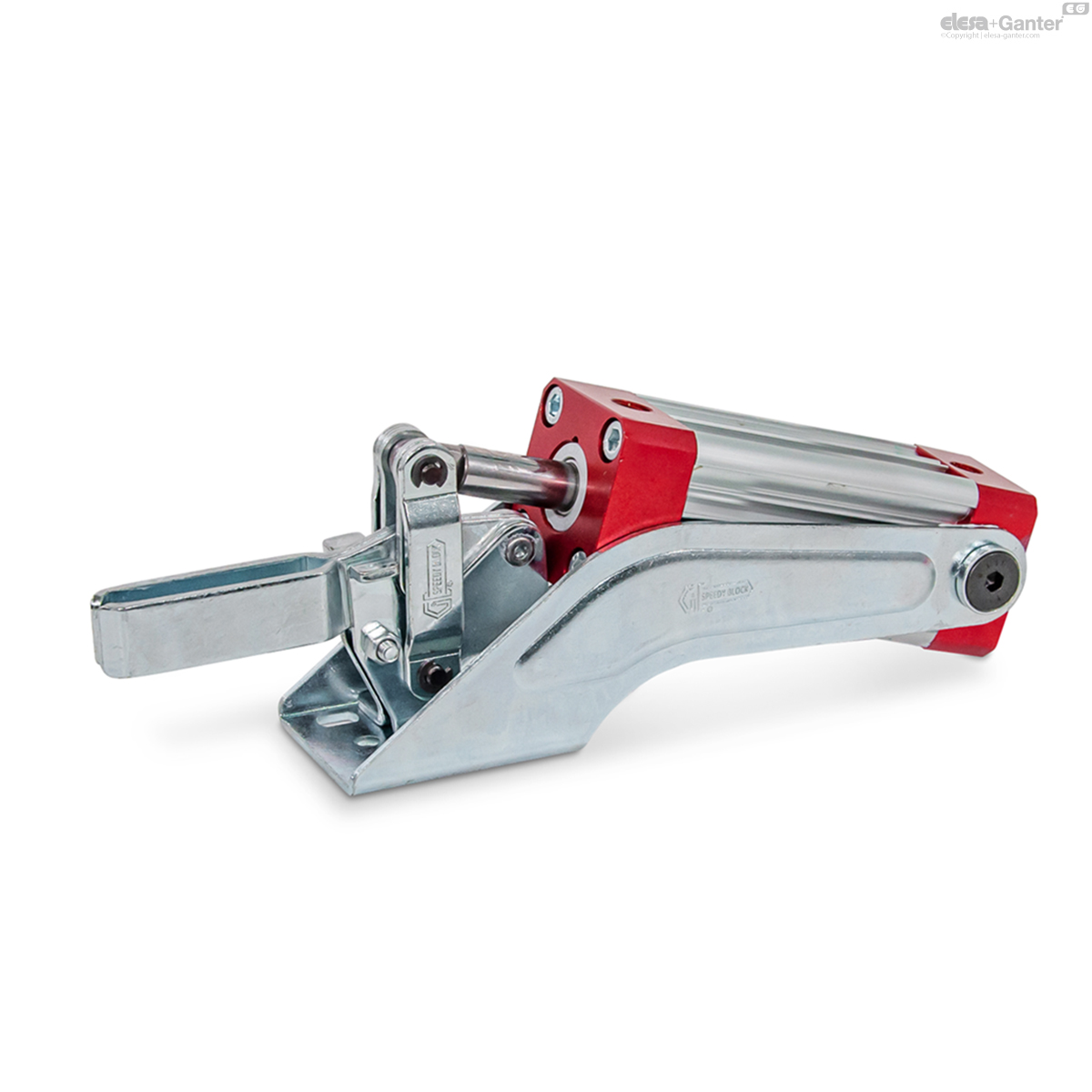

Bras de serrage fourchu , avec deux rondelles à bride

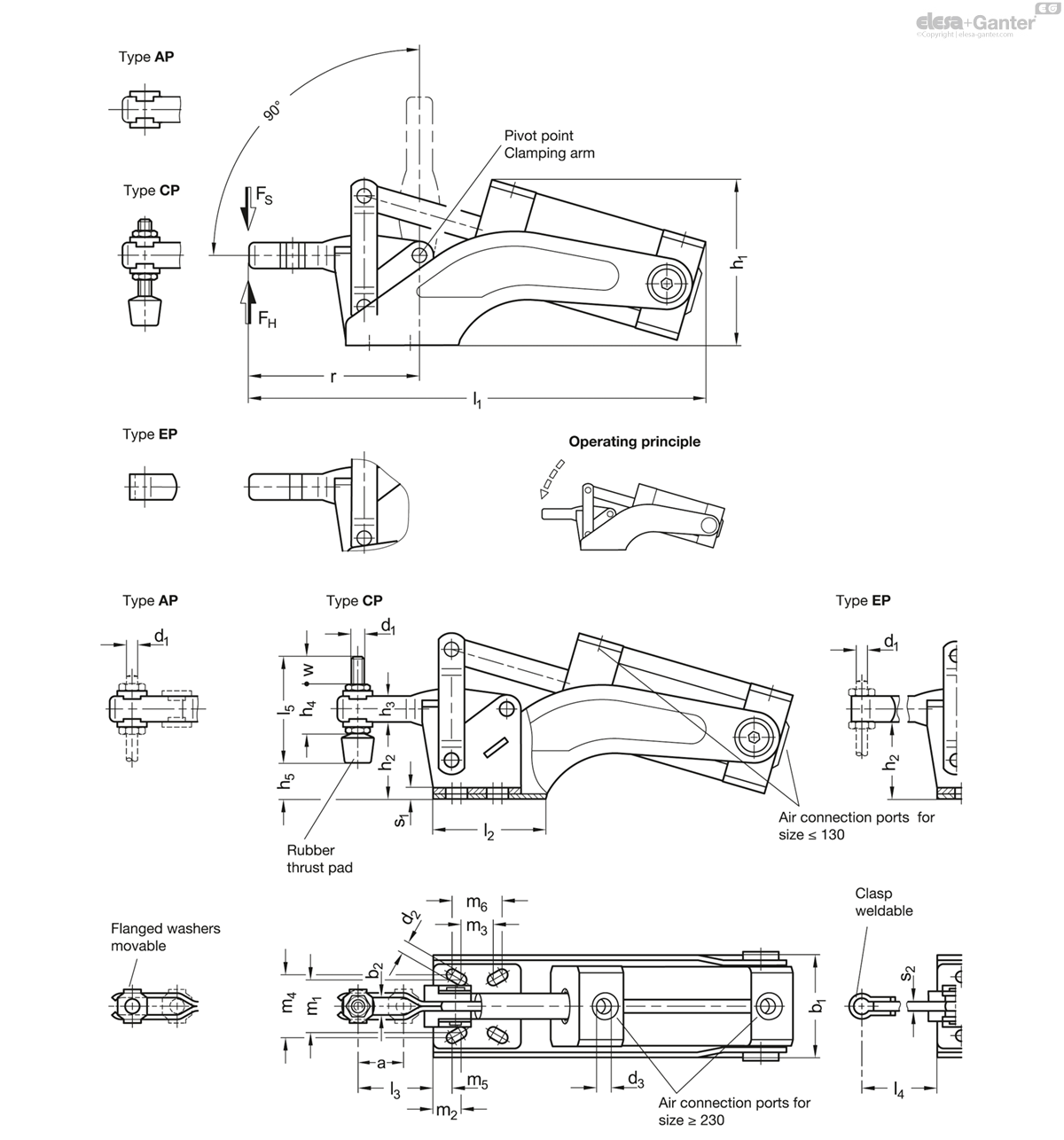

Code	Size	F_H in N	F_S in N	a ≈	b₁	b₂	d₁	d₂	d₃	Inside ø connection tube	h₁	h₂

GN 860-75-CP-M	75	700	380	20	40	5.2	M 5	4.5	M 5	4	54	22
GN 860-130-CP-M	130	1600	800	28	47.5	6.2	M 6	5.6	G 1/8	4	66	30
GN 860-230-CP-M	230	2200	1200	40	52	8.2	M 8	6.7	G 1/8	4	78	36
GN 860-330-CP-M	330	2500	1750	45	74	10.5	M 10	8.6	G 1/4	6	96	46
GN 860-430-CP-M	430	4000	3200	48	73	12.5	M 12	8.5	G 1/4	8	115	55

Types

Type AP: Forked clamping arm, with two flanged washers

Type CP: Forked clamping arm, with two flanged washers and clamping screw GN 708.1

Type EP: Solid clamping arm, with clasp for welding

Coding

Coding M: Magnetic piston

Sheet metal parts

Case-hardened steel C10

Zinc plated, blue passivated

Bearing pins hardened

Bearing rivets

Case-hardened

Air cylinder bearing pins

Case-hardened

Double-action air cylinder

Max. pressure 6 bar

All moving parts

Lubricated with special grease

Clamping screw GN 708.1, type A

Steel, zinc plated, blue passivated

Rubber thrust pad 85 Shore A

The clamping principle of toggle clamps GN 860 is identical in construction and dimensions to the manually operated vertical toggle clamps GN 810 .

To ensure an extended life of the mechanical parts as well as the air cylinders the operating pressure should not exceed 6 bar and a compressed air maintenance unit should be installed upstream.

Toggle clamps GN 860 have a permanent magnet integrated into the piston. In conjunction with sensors GN 3380, it is possible to detect the end position, such as for implementing machine controls.
