Technical datasheet

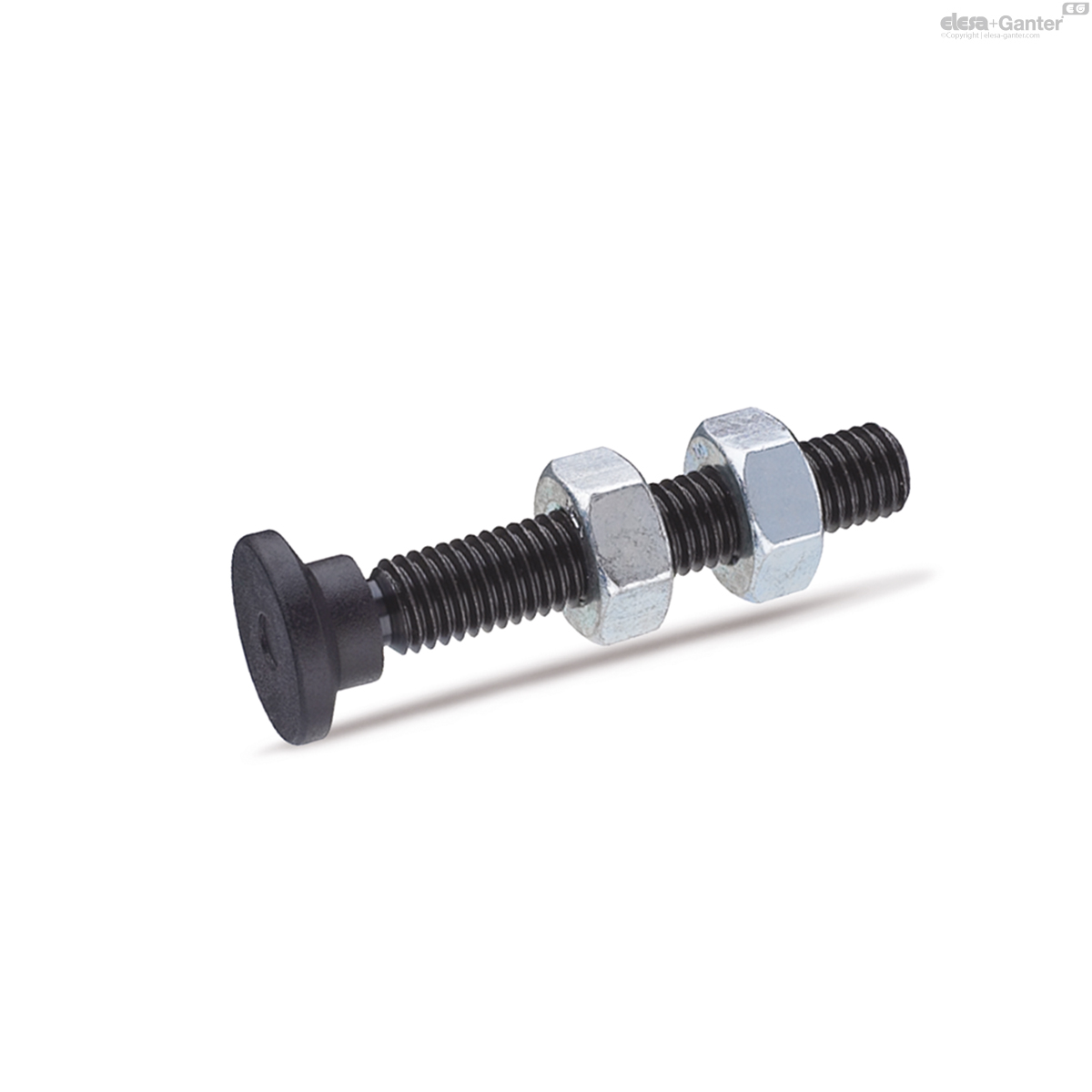

GN 903Ensembles de broches à sauterelle
Acier
Acier / Acier inoxydable , avec patin de poussée pivotant en plastique
|

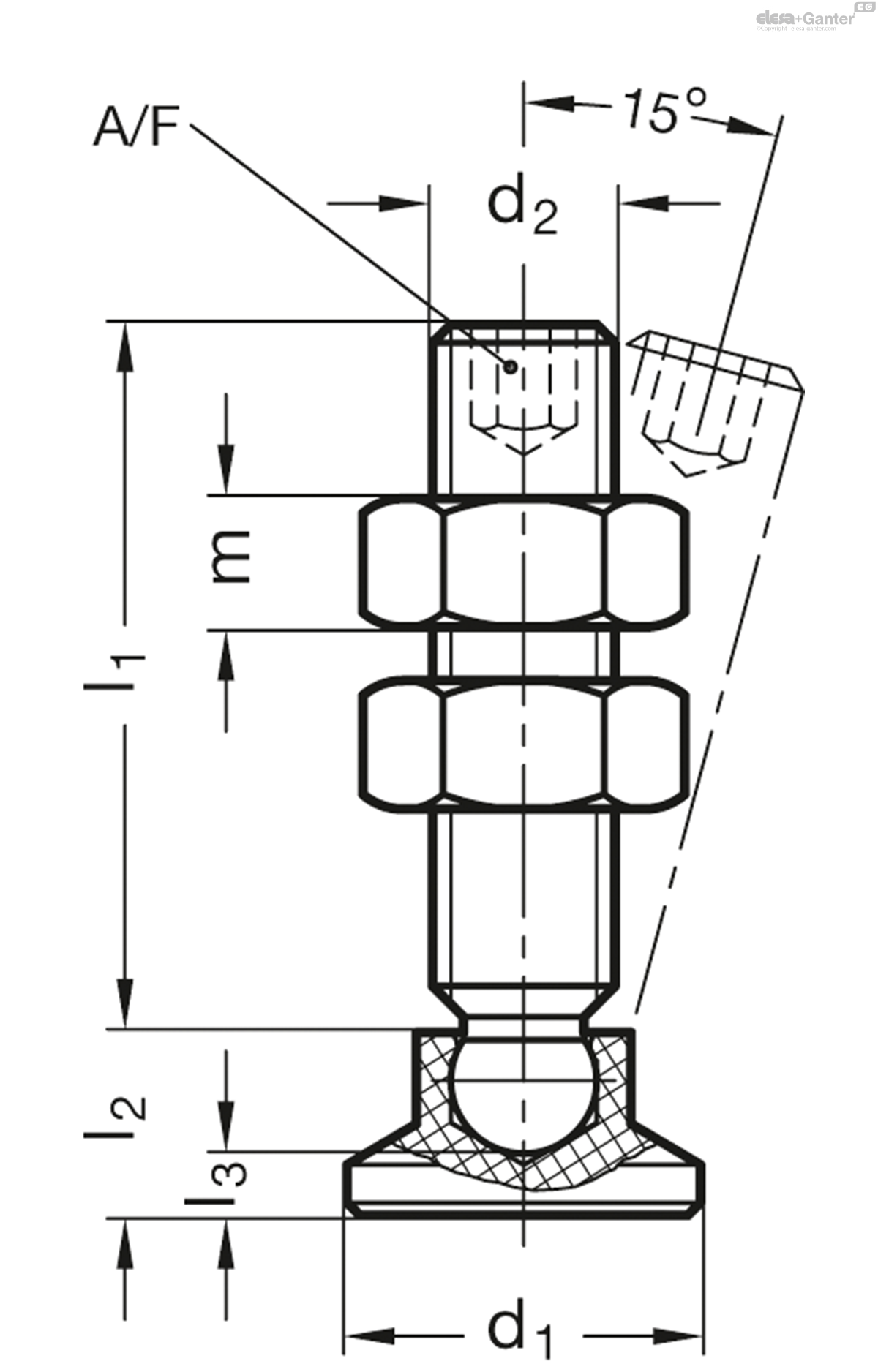

Code
|
d1
|
d2
|
l1
|
l2
|
l3 ≈
|
m
|
A/F
|
|
|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
GN 903-15-M6-26-ST
|
15
|
M 6
|
26
|
7.6
|
3.6
|
5.2
|
3
|
6
|
|
GN 903-15-M6-36-ST
|
15
|
M 6
|
36
|
7.6
|
3.6
|
5.2
|
3
|
12
|
|
GN 903-15-M6-46-ST
|
15
|
M 6
|
46
|
7.6
|
3.6
|
5.2
|
3
|
17
|
|
GN 903-15-M8-20-ST
|
15
|
M 8
|
20
|
7.6
|
2.5
|
6.8
|
4
|
16
|
|
GN 903-15-M8-35-ST
|
15
|
M 8
|
35
|
7.6
|
2.5
|
6.8
|
4
|
21
|
|
GN 903-15-M8-45-ST
|
15
|
M 8
|
45
|
7.6
|
2.5
|
6.8
|
4
|
24
|
|
GN 903-15-M8-58-ST
|
15
|
M 8
|
58
|
7.6
|
2.5
|
6.8
|
4
|
28
|
|
GN 903-18-M10-34-ST
|
18
|
M 10
|
34
|
9.2
|
3.4
|
8.4
|
5
|
37
|
|
GN 903-18-M10-44-ST
|
18
|
M 10
|
44
|
9.2
|
3.4
|
8.4
|
5
|
40
|
|
GN 903-18-M10-57-ST
|
18
|
M 10
|
57
|
9.2
|
3.4
|
8.4
|
5
|
47
|
|
GN 903-18-M10-74-ST
|
18
|
M 10
|
74
|
9.2
|
3.4
|
8.4
|
5
|
55
|
|
GN 903-18-M8-20-ST
|
18
|
M 8
|
20
|
9.2
|
4.2
|
6.8
|
4
|
19
|
|
GN 903-18-M8-35-ST
|
18
|
M 8
|
35
|
9.2
|
4.2
|
6.8
|
4
|
22
|
|
GN 903-18-M8-45-ST
|
18
|
M 8
|
45
|
9.2
|
4.2
|
6.8
|
4
|
25
|
|
GN 903-18-M8-58-ST
|
18
|
M 8
|
58
|
9.2
|
4.2
|
6.8
|
4
|
29
|
|
GN 903-21-M10-34-ST
|
21
|
M 10
|
34
|
10
|
4.3
|
8.4
|
5
|
35
|
|
GN 903-21-M10-44-ST
|
21
|
M 10
|
44
|
10
|
4.3
|
8.4
|
5
|
41
|
|
GN 903-21-M10-57-ST
|
21
|
M 10
|
57
|
10
|
4.3
|
8.4
|
5
|
48
|
|
GN 903-21-M10-74-ST
|
21
|
M 10
|
74
|
10
|
4.3
|
8.4
|
5
|
56
|
|
GN 903-21-M12-34-ST
|
21
|
M 12
|
34
|
10
|
3.4
|
10.8
|
6
|
47
|
|
GN 903-21-M12-57-ST
|
21
|
M 12
|
57
|
10
|
3.4
|
10.8
|
6
|
68
|
|
GN 903-21-M12-74-ST
|
21
|
M 12
|
74
|
10
|
3.4
|
10.8
|
6
|
80
|
|
GN 903-21-M12-94-ST
|
21
|
M 12
|
94
|
10
|
3.4
|
10.8
|
6
|
95
|
|
GN 903-21-M8-20-ST
|
21
|
M 8
|
20
|
10
|
5
|
6.8
|
4
|
13
|
|
GN 903-21-M8-35-ST
|
21
|
M 8
|
35
|
10
|
5
|
6.8
|
4
|
22
|
|
GN 903-21-M8-45-ST
|
21
|
M 8
|
45
|
10
|
5
|
6.8
|
4
|
21
|
|
GN 903-21-M8-58-ST
|
21
|
M 8
|
58
|
10
|
5
|
6.8
|
4
|
25
|
|
GN 903-25-M10-34-ST
|
25
|
M 10
|
34
|
10.5
|
4.6
|
8.4
|
5
|
37
|
|
GN 903-25-M10-44-ST
|
25
|
M 10
|
44
|
10.5
|
4.6
|
8.4
|
5
|
43
|
|
GN 903-25-M10-57-ST
|
25
|
M 10
|
57
|
10.5
|
4.6
|
8.4
|
5
|
50
|
|
GN 903-25-M10-74-ST
|
25
|
M 10
|
74
|
10.5
|
4.6
|
8.4
|
5
|
58
|
|
GN 903-25-M12-34-ST
|
25
|
M 12
|
34
|
10.5
|
3.6
|
10.8
|
6
|
49
|
|
GN 903-25-M12-57-ST
|
25
|
M 12
|
57
|
10.5
|
3.6
|
10.8
|
6
|
70
|
|
GN 903-25-M12-74-ST
|
25
|
M 12
|
74
|
10.5
|
3.6
|
10.8
|
6
|
82
|
|
GN 903-25-M12-94-ST
|
25
|
M 12
|
94
|
10.5
|
3.6
|
10.8
|
6
|
97
|
|
GN 903-25-M8-20-ST
|
25
|
M 8
|
20
|
10.5
|
5.5
|
6.8
|
4
|
13
|
|
GN 903-25-M8-35-ST
|
25
|
M 8
|
35
|
10.5
|
5.5
|
6.8
|
4
|
22
|
|
GN 903-25-M8-45-ST
|
25
|
M 8
|
45
|
10.5
|
5.5
|
6.8
|
4
|
26
|
|
GN 903-25-M8-58-ST
|
25
|
M 8
|
58
|
10.5
|
5.5
|
6.8
|
4
|
29
|
|
GN 903-32-M10-34-ST
|
32
|
M 10
|
34
|
11
|
5
|
8.4
|
5
|
31
|
|
GN 903-32-M10-44-ST
|
32
|
M 10
|
44
|
11
|
5
|
8.4
|
5
|
45
|
|
GN 903-32-M10-57-ST
|
32
|
M 10
|
57
|
11
|
5
|
8.4
|
5
|
46
|
|
GN 903-32-M10-74-ST
|
32
|
M 10
|
74
|
11
|
5
|
8.4
|
5
|
57
|
|
GN 903-32-M12-34-ST
|
32
|
M 12
|
34
|
11
|
4.2
|
10.8
|
6
|
37
|
|
GN 903-32-M12-57-ST
|
32
|
M 12
|
57
|
11
|
4.2
|
10.8
|
6
|
68
|
|
GN 903-32-M12-74-ST
|
32
|
M 12
|
74
|
11
|
4.2
|
10.8
|
6
|
81
|
|
GN 903-32-M12-94-ST
|
32
|
M 12
|
94
|
11
|
4.2
|
10.8
|
6
|
96
|
|
GN 903-32-M8-20-ST
|
32
|
M 8
|
20
|
11
|
6
|
6.8
|
4
|
15
|
|
GN 903-32-M8-35-ST
|
32
|
M 8
|
35
|
11
|
6
|
6.8
|
4
|
23
|
|
GN 903-32-M8-45-ST
|
32
|
M 8
|
45
|
11
|
6
|
6.8
|
4
|
28
|
|
GN 903-32-M8-58-ST
|
32
|
M 8
|
58
|
11
|
6
|
6.8
|
4
|
31
|
|
GN 903-40-M10-34-ST
|
40
|
M 10
|
34
|
13
|
7
|
8.4
|
5
|
36
|
|
GN 903-40-M10-44-ST
|
40
|
M 10
|
44
|
13
|
7
|
8.4
|
5
|
40
|
|
GN 903-40-M10-57-ST
|
40
|
M 10
|
57
|
13
|
7
|
8.4
|
5
|
51
|
|
GN 903-40-M10-74-ST
|
40
|
M 10
|
74
|
13
|
7
|
8.4
|
5
|
63
|
|
GN 903-40-M12-34-ST
|
40
|
M 12
|
34
|
13
|
6.2
|
10.8
|
6
|
42
|
|
GN 903-40-M12-57-ST
|
40
|
M 12
|
57
|
13
|
6.2
|
10.8
|
6
|
73
|
|
GN 903-40-M12-74-ST
|
40
|
M 12
|
74
|
13
|
6.2
|
10.8
|
6
|
71
|
|
GN 903-40-M12-94-ST
|
40
|
M 12
|
94
|
13
|
6.2
|
10.8
|
6
|
102
|
|
GN 903-40-M8-20-ST
|
40
|
M 8
|
20
|
13
|
8
|
6.8
|
4
|
20
|
|
GN 903-40-M8-35-ST
|
40
|
M 8
|
35
|
13
|
8
|
6.8
|
4
|
28
|
|
GN 903-40-M8-45-ST
|
40
|
M 8
|
45
|
13
|
8
|
6.8
|
4
|
33
|
|
GN 903-40-M8-58-ST
|
40
|
M 8
|
58
|
13
|
8
|
6.8
|
4
|
37
|
Thrust pad
Plastic (Polyacetal POM)
- temperature resistant up to 80 °C
- black, matt
Version in Steel ST
Grub screw
Steel
- Tensile strength class 5.8
- blackened
Hexagon nuts ISO 4032
Steel zinc plated, blue passivated
Version in Stainless Steel NI
Grub screw
Stainless Steel AISI 303
Hexagon nuts ISO 4032
Stainless Steel AISI 303
The ball end of the grub screw can be hit easily into the thrust pad and removed.
The two hexagon nuts are included parts of the order.
