Technical datasheet

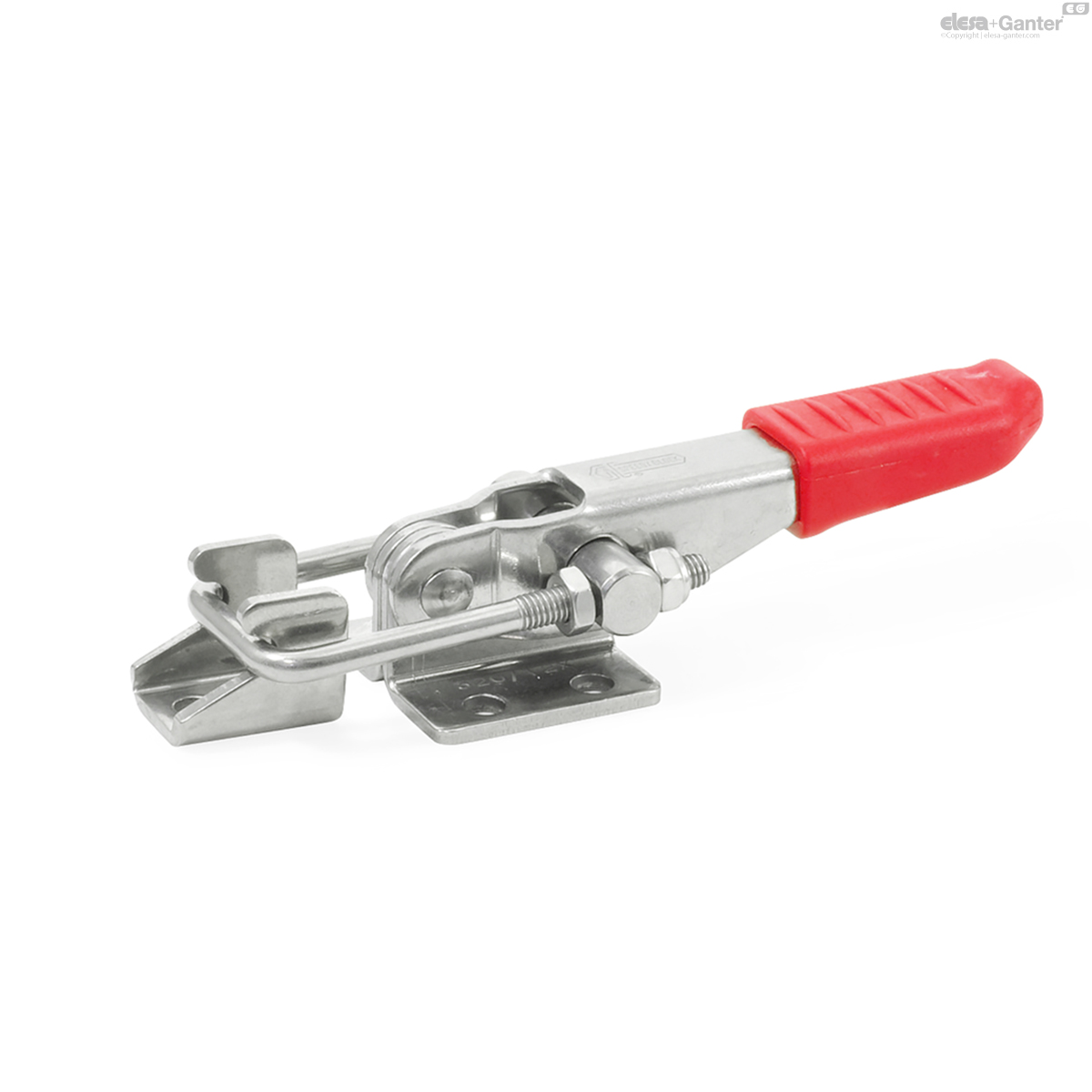

GN 851-NISauterelles à verrouillage horizontal
Acier inoxydable
Acier/acier inoxydable , pour l'action de traction

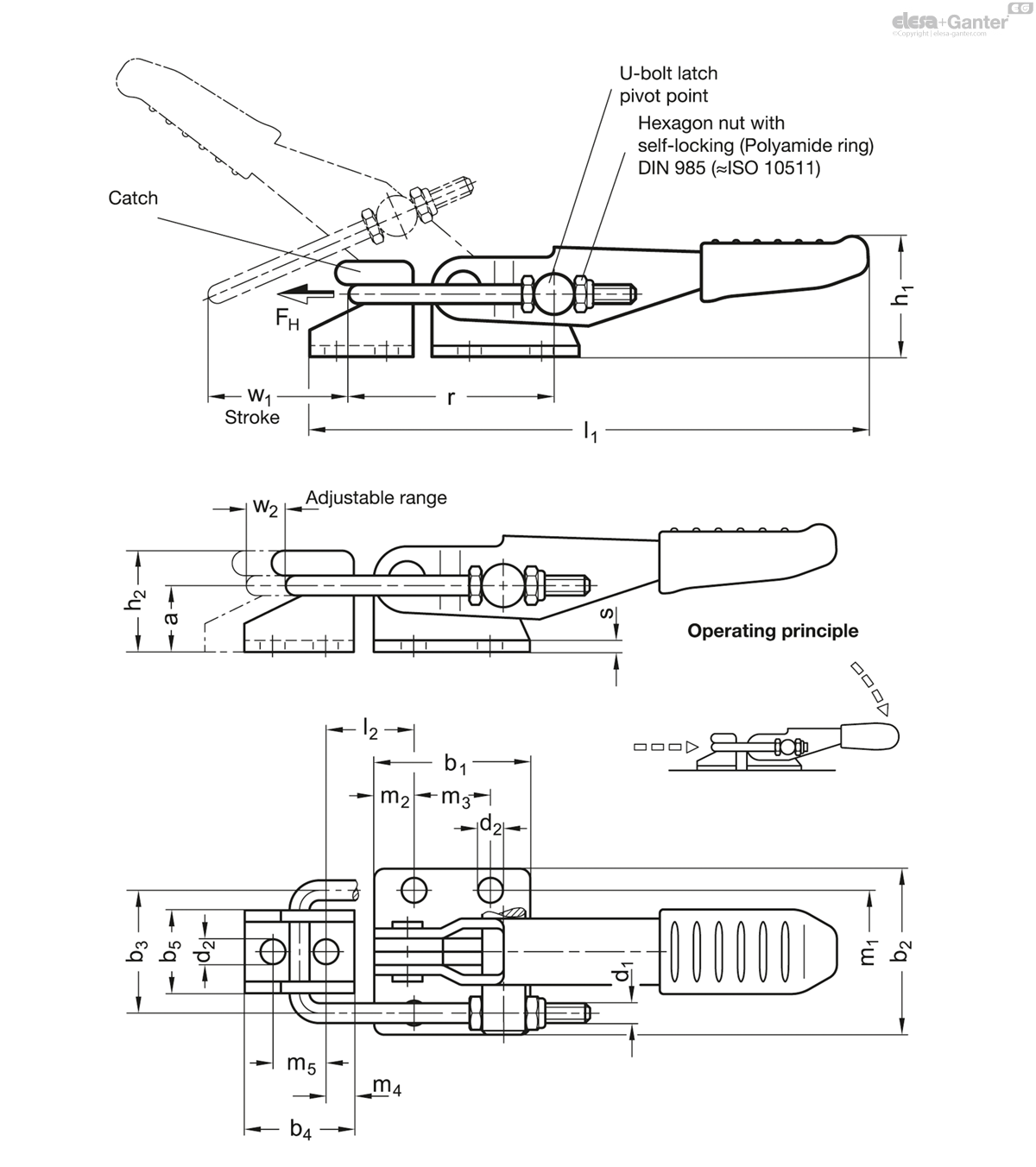

GN 851-NI
|
Code
|
Size
|
FH in N
|
a
|
b1
|
b2
|
b3
|
b4
|
b5
|
d1
|
d2
|
h1 ≈
|
h2
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 851-160-T2-NI
|
160
|
1600
|
12
|
26
|
28
|
21
|
20
|
14
|
M 4
|
4.3
|
26
|
18
|
|
GN 851-320-T2-NI
|
320
|
3200
|
16
|
40
|
44
|
32
|
28
|
22
|
M 6
|
6.5
|
30
|
25
|
|
GN 851-700-T2-NI
|
700
|
7000
|
24
|
60
|
54
|
38
|
38
|
26
|
M 8
|
8.5
|
42
|
36
|
|
GN 851-160-T-NI
|
160
|
1600
|
12
|
26
|
28
|
21
|
20
|
14
|
M 4
|
4.3
|
26
|
18
|
|
GN 851-320-T-NI
|
320
|
3200
|
16
|
40
|
44
|
32
|
28
|
22
|
M 6
|
6.5
|
30
|
25
|
|
GN 851-700-T-NI
|
700
|
7000
|
24
|
60
|
54
|
38
|
38
|
26
|
M 8
|
8.5
|
42
|
36
|
Types
- Type T2: with U-bolt latch, with catch
- Type T: without U-bolt latch, with catch
Version in Steel
Case-hardened Steel C10
zinc plated, blue passivated
U-bolt latch
Steel St 37
zinc plated, blue passivated
All moving parts
lubricated with special grease
Handle with plastic sleeve
red, oil resistant
Version in Stainless Steel NI
Parts in sheet metal / U-bolt latch
Stainless Steel AISI 304
Pin
Stainless Steel AISI 303
All moving parts
lubricated with special grease
Handle with plastic sleeve
red, oil resistant
The stroke of the U-bolt latch of GN 851 latch type toggle clamps can be adjusted within its range.
In the clamped position the U-bolt latch with clamping arm is parallel to the plane of the operating handle.
In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.1 series.
