Technical datasheet
GN 817.8Doigts d'indexation

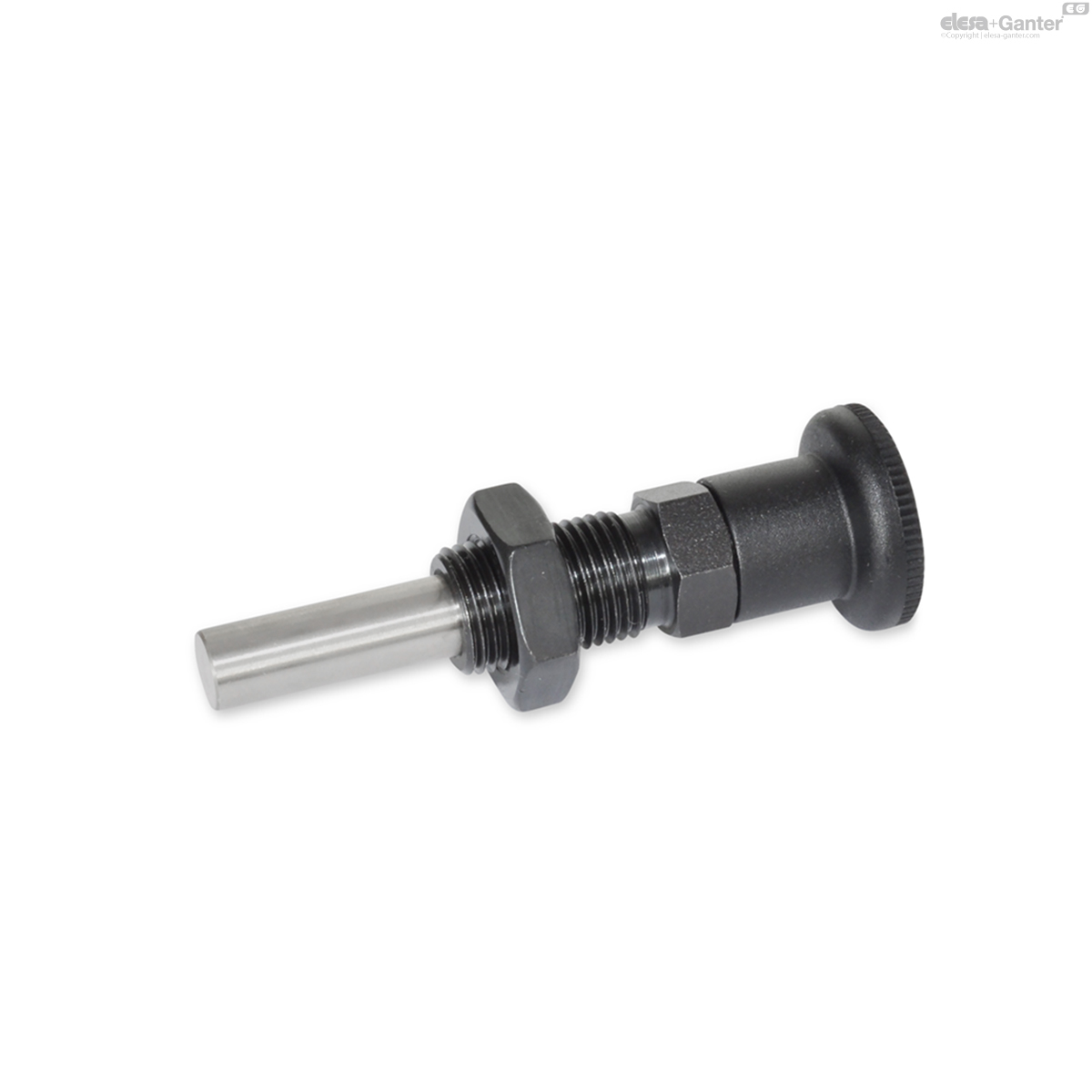

Doigts d'indexation, Acier
Acier / Acier inoxydable, amovible, avec ou sans position de repos
GN 817.8
|
Code
|
d1 Pin -0.02/-0.05
Bore H7 |
l1
|
l2
|
d2
|
d3
|
d4
|
d4 -0.05
|
d5
|
k
|
l3
|
l4
|
l5
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 817.8-7-6-C-ST
|
7
|
6
|
8
|
M12x1.5
|
23
|
5
|
5
|
M3
|
20
|
20
|
48
|
22
|
|
GN 817.8-7-6-BK-ST
|
7
|
6
|
8
|
M12x1.5
|
23
|
5
|
5
|
M3
|
20
|
20
|
48
|
22
|
|
GN 817.8-7-6-CK-ST
|
7
|
6
|
8
|
M12x1.5
|
23
|
5
|
5
|
M3
|
20
|
20
|
48
|
22
|
|
GN 817.8-7-6-B-ST
|
7
|
6
|
8
|
M12x1.5
|
23
|
5
|
5
|
M3
|
20
|
20
|
48
|
22
|
|
GN 817.8-7-9-CK-ST
|
7
|
9
|
11
|
M12x1.5
|
23
|
5
|
5
|
M3
|
20
|
20
|
48
|
22
|
|
GN 817.8-7-9-B-ST
|
7
|
9
|
11
|
M12x1.5
|
23
|
5
|
5
|
M3
|
20
|
20
|
48
|
22
|
|
GN 817.8-7-9-C-ST
|
7
|
9
|
11
|
M12x1.5
|
23
|
5
|
5
|
M3
|
20
|
20
|
48
|
22
|
|
GN 817.8-7-9-BK-ST
|
7
|
9
|
11
|
M12x1.5
|
23
|
5
|
5
|
M3
|
20
|
20
|
48
|
22
|
|
GN 817.8-8-8-CK-ST
|
8
|
8
|
10
|
M16x1.5
|
28
|
6
|
6
|
M4
|
24
|
25
|
58
|
26
|
|
GN 817.8-8-8-B-ST
|
8
|
8
|
10
|
M16x1.5
|
28
|
6
|
6
|
M4
|
24
|
25
|
58
|
26
|
|
GN 817.8-8-8-C-ST
|
8
|
8
|
10
|
M16x1.5
|
28
|
6
|
6
|
M4
|
24
|
25
|
58
|
26
|
|
GN 817.8-8-8-BK-ST
|
8
|
8
|
10
|
M16x1.5
|
28
|
6
|
6
|
M4
|
24
|
25
|
58
|
26
|
|
GN 817.8-8-12-CK-ST
|
8
|
12
|
14
|
M16x1.5
|
28
|
6
|
6
|
M4
|
24
|
25
|
58
|
26
|
|
GN 817.8-8-12-BK-ST
|
8
|
12
|
14
|
M16x1.5
|
28
|
6
|
6
|
M4
|
24
|
25
|
58
|
26
|
|
GN 817.8-8-12-B-ST
|
8
|
12
|
14
|
M16x1.5
|
28
|
6
|
6
|
M4
|
24
|
25
|
58
|
26
|
|
GN 817.8-8-12-C-ST
|
8
|
12
|
14
|
M16x1.5
|
28
|
6
|
6
|
M4
|
24
|
25
|
58
|
26
|
|
GN 817.8-10-12-B-ST
|
10
|
12
|
14
|
M16x1.5
|
28
|
7.5
|
7.5
|
M4
|
24
|
30
|
58
|
26
|
|
GN 817.8-10-12-BK-ST
|
10
|
12
|
14
|
M16x1.5
|
28
|
7.5
|
7.5
|
M4
|
24
|
30
|
58
|
26
|
|
GN 817.8-10-12-CK-ST
|
10
|
12
|
14
|
M16x1.5
|
28
|
7.5
|
7.5
|
M4
|
24
|
30
|
58
|
26
|
|
GN 817.8-10-12-C-ST
|
10
|
12
|
14
|
M16x1.5
|
28
|
7.5
|
7.5
|
M4
|
24
|
30
|
58
|
26
|
|
GN 817.8-12-15-C-ST
|
12
|
15
|
17
|
M20x1.5
|
33
|
9
|
9
|
M6
|
28.5
|
35
|
71.5
|
33
|
|
GN 817.8-12-15-BK-ST
|
12
|
15
|
17
|
M20x1.5
|
33
|
9
|
9
|
M6
|
28.5
|
35
|
71.5
|
33
|
|
GN 817.8-12-15-B-ST
|
12
|
15
|
17
|
M20x1.5
|
33
|
9
|
9
|
M6
|
28.5
|
35
|
71.5
|
33
|
|
GN 817.8-12-15-CK-ST
|
12
|
15
|
17
|
M20x1.5
|
33
|
9
|
9
|
M6
|
28.5
|
35
|
71.5
|
33
|

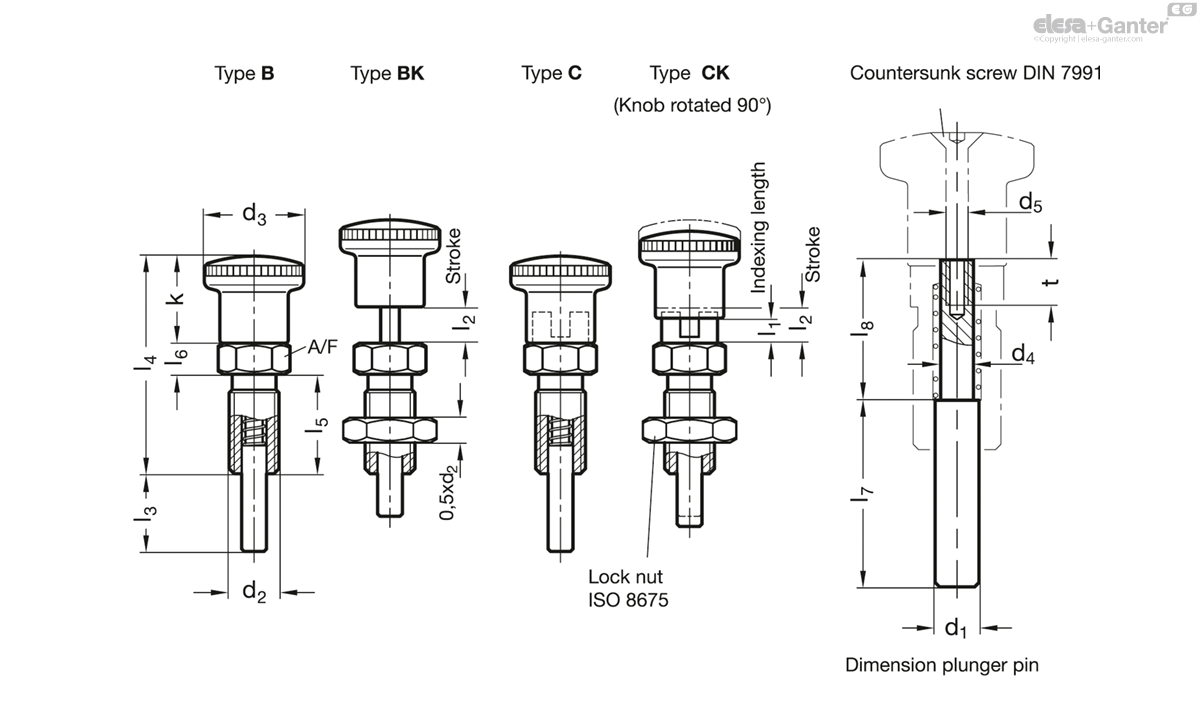

Types
- Type B: without rest position, without lock nut
- Type BK: without rest position, with lock nut
- Type C: with rest position, without lock nut
- Type CK: with rest position, with lock nut
Version in Steel ST
blackened
- Threaded body
- Lock nut
Version in Stainless Steel NI
- Threaded body, AISI 303
- Lock nut, AISI 304
Pin
Stainless Steel AISI 303
Countersunk screw DIN 7991
Stainless Steel AISI 304
Knob
- Plastic (Polyamide PA)
- black, matt
Indexing plungers GN 817.8 have been designed such that special versions of the indexing pins can also be made economically in smaller unit quantities.
If reqired, the indexing pins can be machined or made by the user as shown in the drawing above. They are assembled with a countersunk screw and can therefore be assembled several times. All parts are supplied in a non-assembled set.
The indexing plungers type C / CK are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
