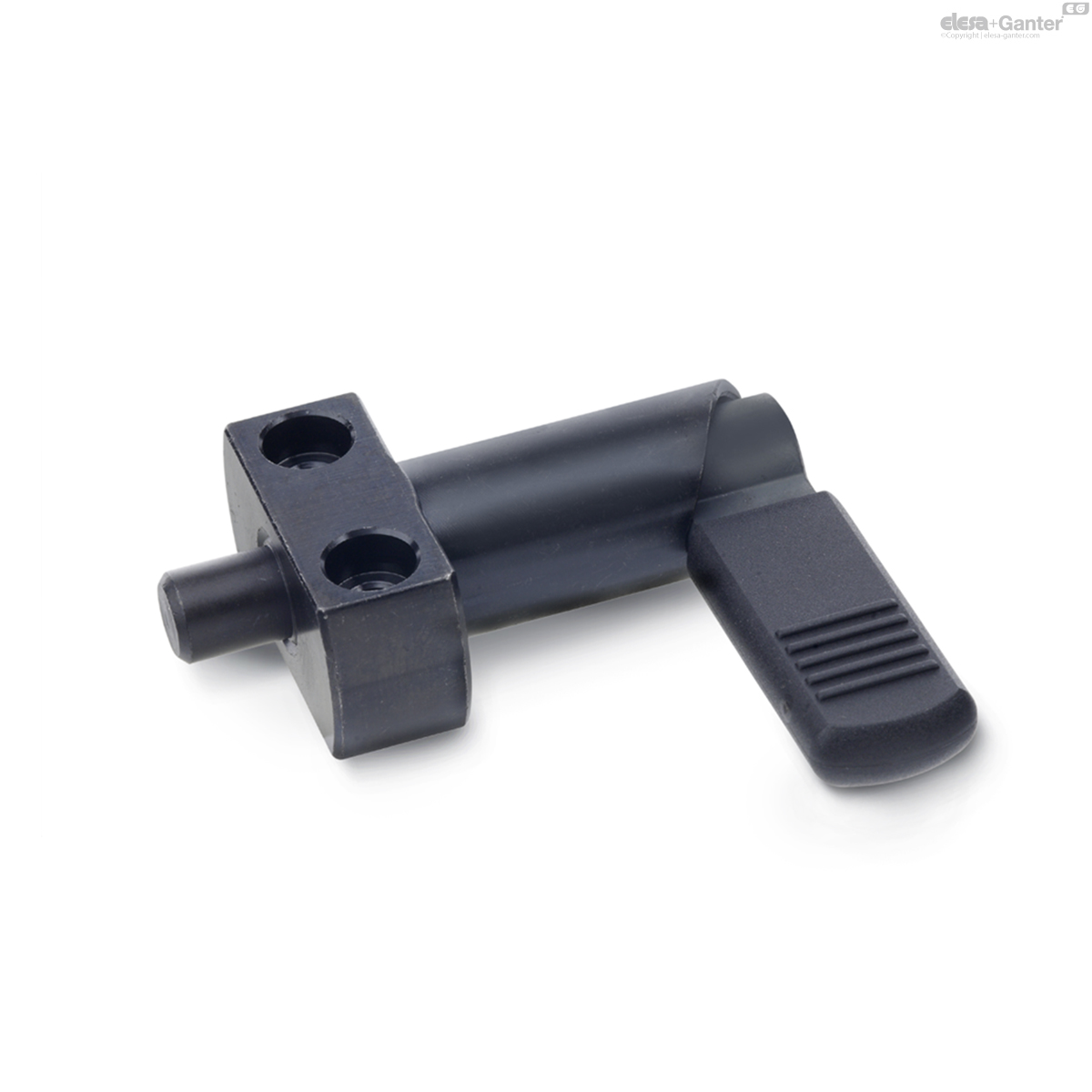

GN 612.2Doigts d'indexage à came

Doigts d'indexage à came

Acier de guidage , noirci

Technical datasheet

GN 612.2

Réinitialiser

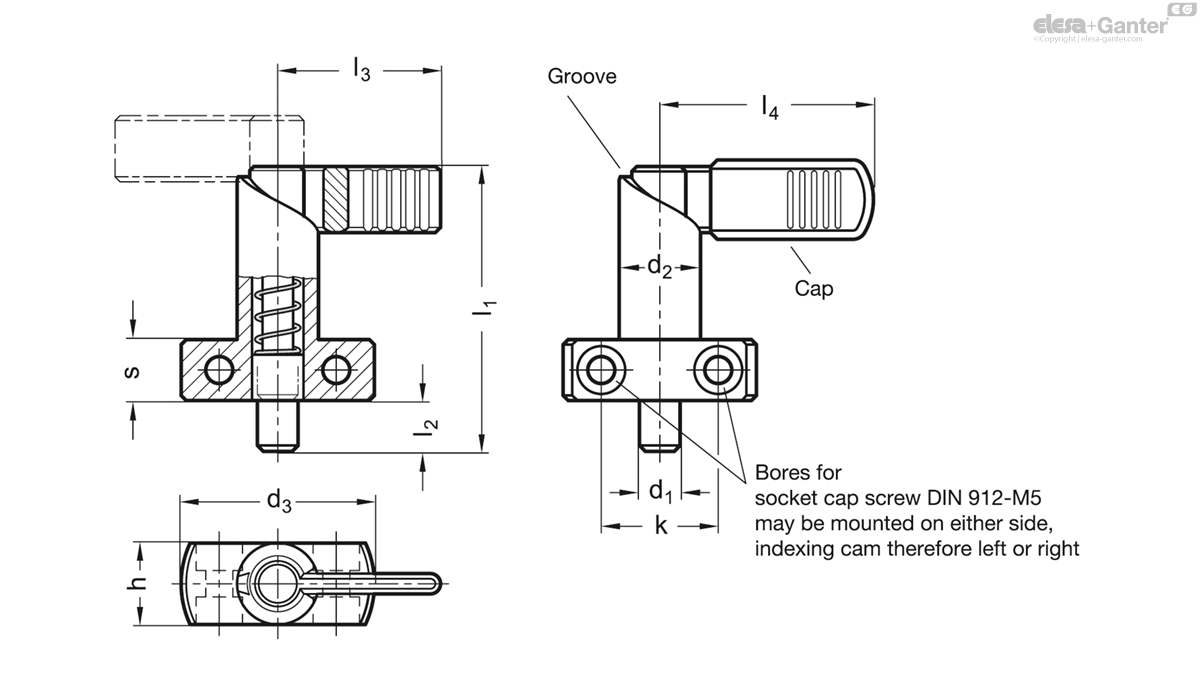

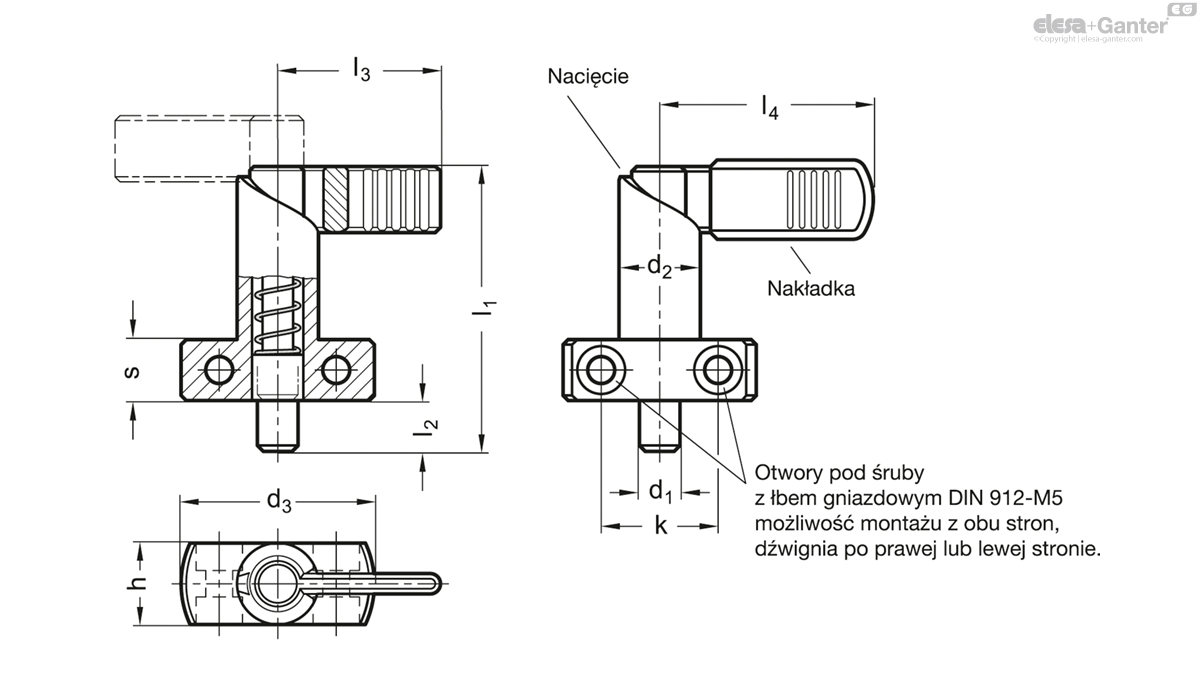

Code	d₁ Pin 0/-0.05 Bore H7	d₂	d₃	h	k	l₁	l₂	l₃	l₄	s	Spring load in N ≈ initial	Spring load in N ≈ end

GN 612.2-6-16-A	6	16	35	16	20	56	10	32	-	12	12	32
GN 612.2-8-16-A	8	16	35	16	20	56	10	32	-	12	12	32
GN 612.2-8-20-A	8	20	40	20	22	69	12	37	-	15	21	58
GN 612.2-10-16-A	10	16	35	16	20	56	10	32	-	12	12	32
GN 612.2-10-20-A	10	20	40	20	22	69	12	37	-	15	21	58
GN 612.2-12-20-A	12	20	40	20	22	69	12	37	-	15	21	58
GN 612.2-6-16-B	6	16	35	16	20	56	10	-	42	12	12	32
GN 612.2-8-16-B	8	16	35	16	20	56	10	-	42	12	12	32
GN 612.2-8-20-B	8	20	40	20	22	69	12	-	52	15	21	58
GN 612.2-10-16-B	10	16	35	16	20	56	10	-	42	12	12	32
GN 612.2-10-20-B	10	20	40	20	22	69	12	-	52	15	21	58
GN 612.2-12-20-B	12	20	40	20	22	69	12	-	52	15	21	58

Types

Type A: without plastic caps

Type B: with plastic caps

Steel

Blackened

Plunger pin nitrided

Cap

Plastic (Polyamide PA)

Black, matte

Cam action indexing plungers GN 612.2 are used in cases where the locking pin must not protude all the time. By rotating the lock through 180° the locking pin withdraws itself. A groove keeps the plunger in this position.
