Technical datasheet
GN 51.7Aimants
Aimants

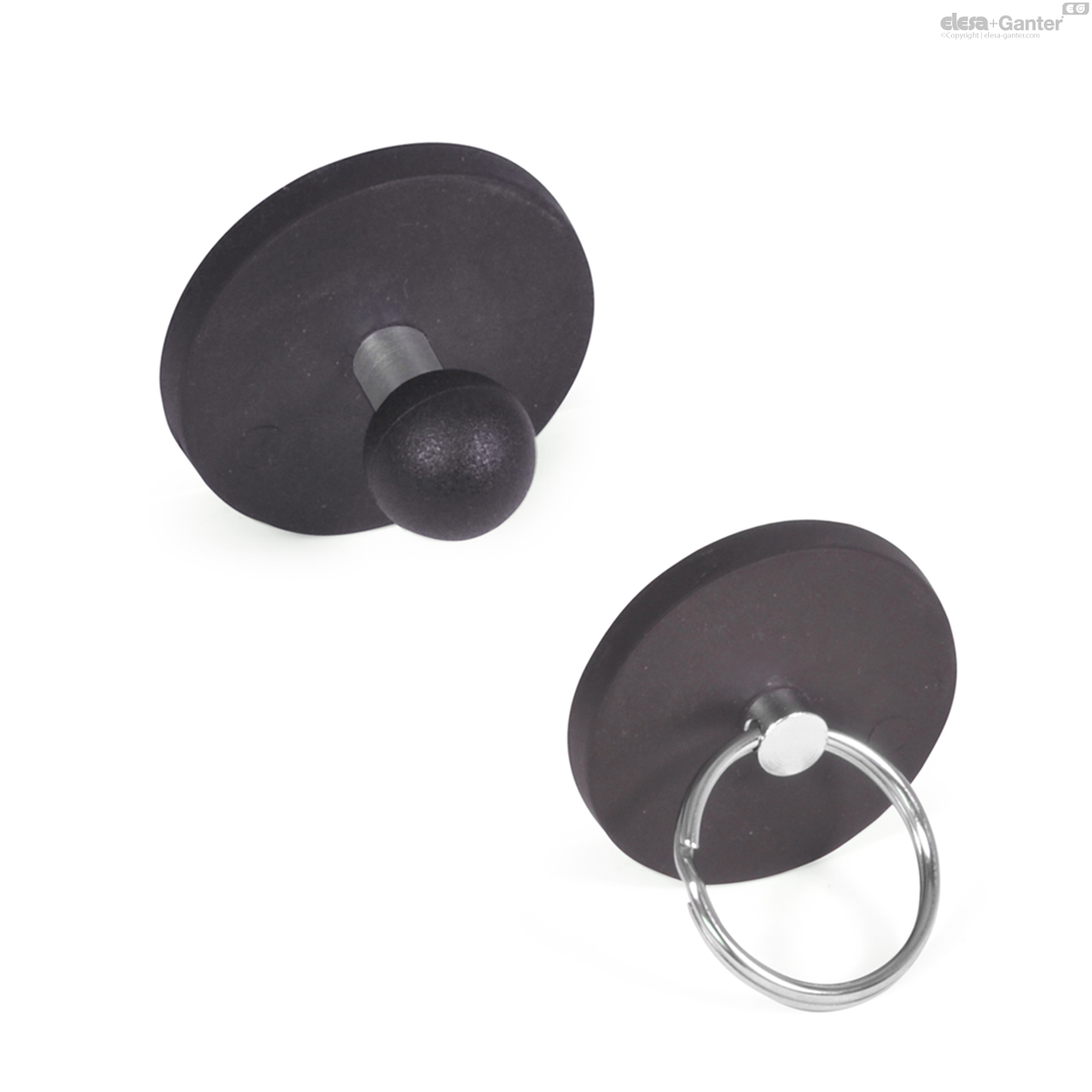

avec bouton boule / avec porte-clés, avec gaine en caoutchouc
|
Code
|
d1
|
d2
|
d3
|
h1
|
h2
|
h3
|
Nominal adhesive forces in N
|
|
|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
GN 51.7-ND-22-A
|
22
|
16
|
-
|
6
|
25
|
-
|
35
|
18
|
|
GN 51.7-ND-31-A
|
31
|
16
|
-
|
6
|
25
|
-
|
75
|
29
|
|
GN 51.7-ND-43-A
|
43
|
16
|
-
|
5.5
|
24
|
-
|
85
|
45
|
|
GN 51.7-ND-22-B
|
22
|
-
|
20
|
6
|
-
|
13
|
35
|
14
|
|
GN 51.7-ND-31-B
|
31
|
-
|
25
|
6
|
-
|
14.5
|
75
|
25
|
|
GN 51.7-ND-43-B
|
43
|
-
|
30
|
5.5
|
-
|
17
|
85
|
34
|

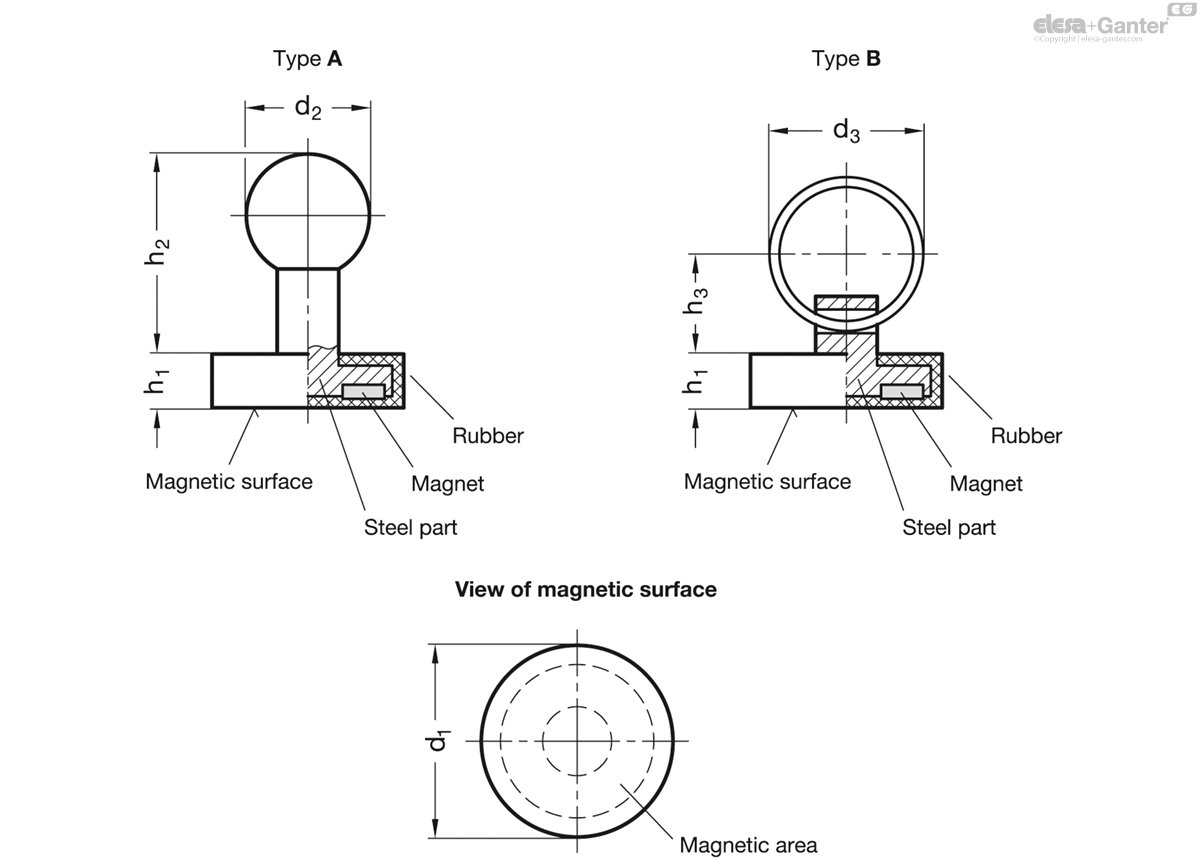

Types
- Type A: with knob
- Type B: with key ring
Steel part
Nickel plated
Material of the magnet
NdFeB ND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Rubber jacket
Elastomer (TPE)
80 shore A ≈
Black
Ball knob
Plastic
Technopolymer (Polyamide PA)
Black, matte
Key ring
Steel, nickel plated
Magnets GN 51.7 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.
The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
