51.7-ND-31-A
GN 51.7 Aimants
Délai: 1-2 semaines Toutes les tailles et variantes de GN 51.7
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

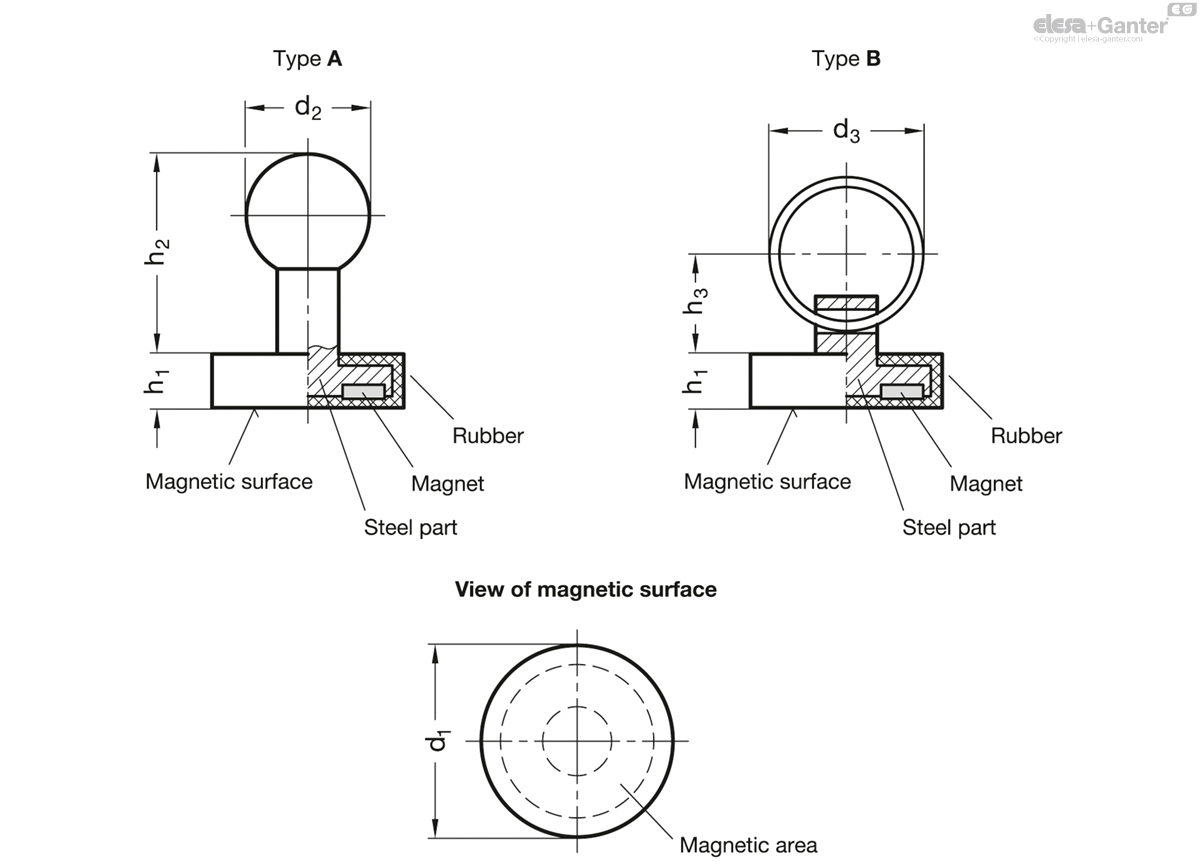

Caractéristiques techniques
- Code
- GN 51.7-ND-31-A
- d1
- 31
- d2
- 16
- h1
- 6
- h2
- 25
- Nominal adhesive forces in N
- 75
- 29
Types
- Type A: with knob
- Type B: with key ring
Steel part
Nickel plated
Material of the magnet
NdFeB ND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Rubber jacket
Elastomer (TPE)
80 shore A ≈
Black
Ball knob
Plastic
Technopolymer (Polyamide PA)
Black, matte
Key ring
Steel, nickel plated
Magnets GN 51.7 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.
The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
