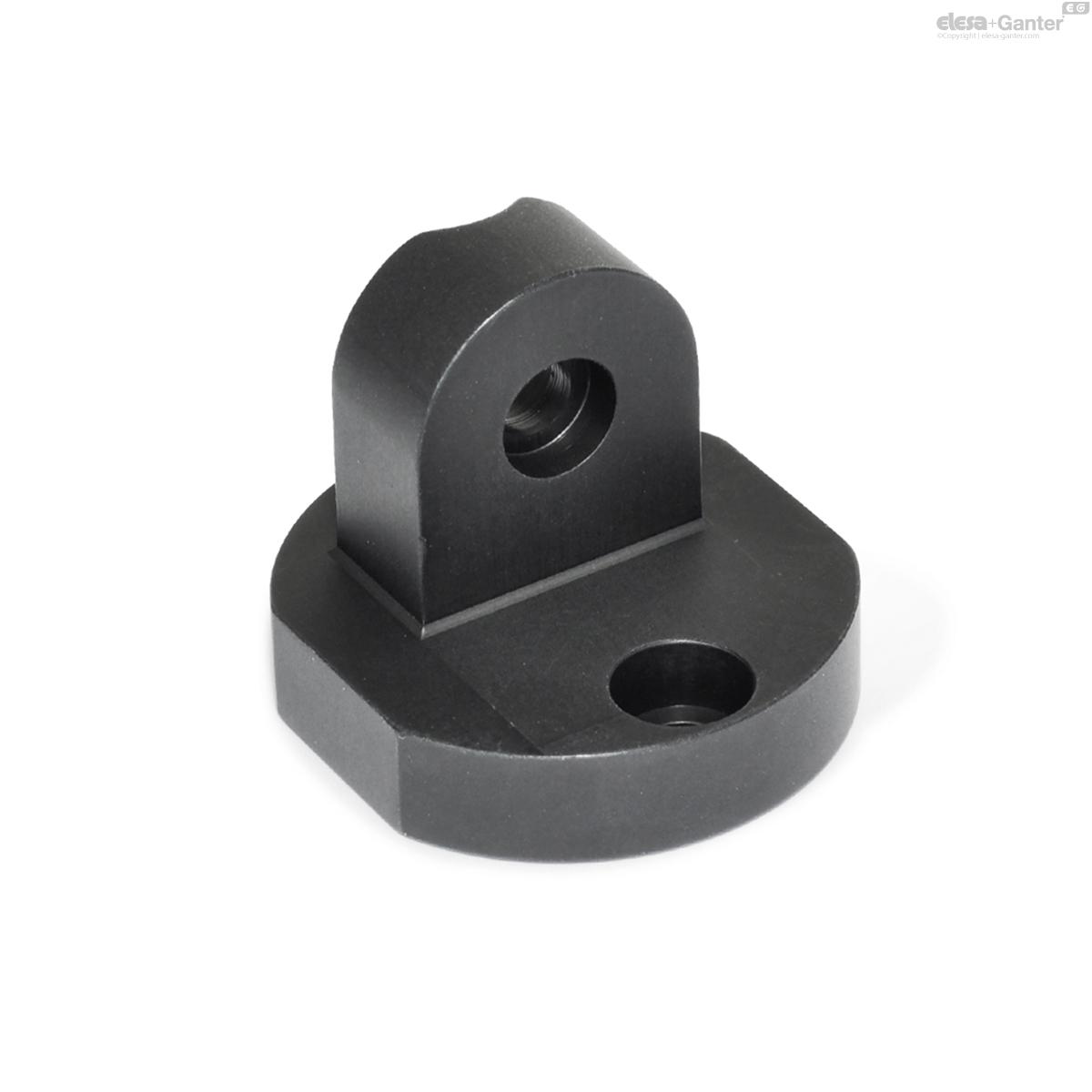

GN 485Bases de connecteur à pince pivotante
Bases de connecteur à pince pivotante
Aluminium
GN 485
|
Code
|
k
|
b
|
d1
|
d2
|
d3
|
d4
|
l1
|
l2
|
l3
|
l4
|
l5
|
m
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 485-16-MT
|
16
|
29
|
31.5
|
M 4
|
4.5
|
7.5
|
25
|
17
|
7
|
3
|
8
|
22
|
|
GN 485-20-MT
|
20
|
35
|
38
|
M 5
|
5.5
|
9
|
30
|
20
|
8
|
2.5
|
10
|
27
|
|
GN 485-25-MT
|
25
|
41
|
45
|
M 6
|
6.5
|
10.5
|
37
|
24.5
|
10
|
4
|
12.5
|
32
|
|
GN 485-30-MT
|
30
|
44
|
50
|
M 6
|
6.5
|
10.5
|
44.5
|
29.5
|
12.5
|
6.5
|
15
|
36
|
|
GN 485-16-ELS
|
16
|
29
|
31.5
|
M 4
|
4.5
|
7.5
|
25
|
17
|
7
|
3
|
8
|
22
|
|
GN 485-20-ELS
|
20
|
35
|
38
|
M 5
|
5.5
|
9
|
30
|
20
|
8
|
2.5
|
10
|
27
|
|
GN 485-25-ELS
|
25
|
41
|
45
|
M 6
|
6.5
|
10.5
|
37
|
24.5
|
10
|
4
|
12.5
|
32
|
|
GN 485-30-ELS
|
30
|
44
|
50
|
M 6
|
6.5
|
10.5
|
44.5
|
29.5
|
12.5
|
6.5
|
15
|
36
|
Aluminium
- matt, tumbled finish MT
- anodized, black ELS

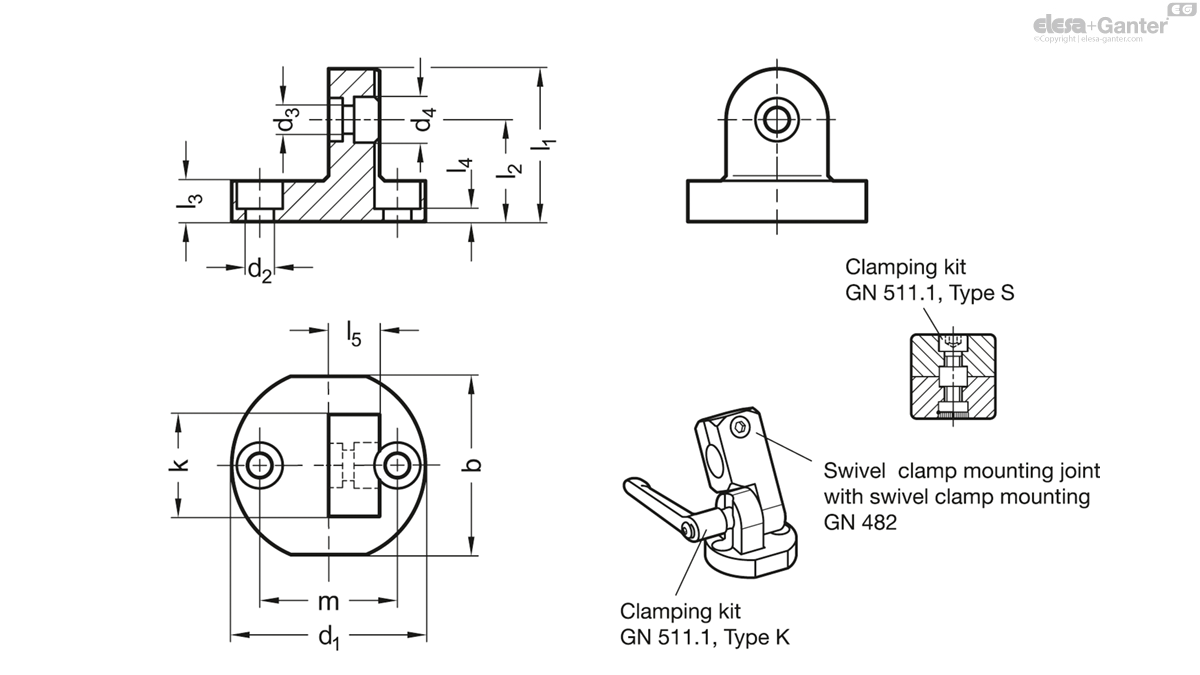

Swivel clamp connector bases GN 485 can be combined with swivel clamp mountings GN 482, T-swivel clamp mountings GN 483 and attachment clamp mountings GN 484 with the same k dimensions into swivel clamp mounting joints. Clamping kits GN 511.1 with screw (type S) and adjustable hand lever (type K) are available to connect the joints and bases (code no. for ordering is shown in the dimensional table).
The center to center mounting hole distance m of the swivel clamp connector bases GN 485 matches the base plate clamp mountings GN 473, clamp mountings GN 477, flanged bolts GN 480 as well as retaining magnets GN 51.6.
- Clamping kits GN 511.1
