GN 369.5-AManivelles en acier inoxydable
sans serrure
|
Code
|
l ≈
|
d1 H9
|
d2
|
h1
|
h2 ≈
|
h3 ≈
|
h4 ≈
|
t +0.5
|
Ø Handle
|
For screws
DIN 912 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 369.5-63-B10-A
|
63
|
B 10
|
18
|
28
|
18
|
74
|
40
|
18
|
18
|
M 5
|
90
|
|
GN 369.5-80-B10-A
|
80
|
B 10
|
18
|
28
|
18
|
74
|
40
|
18
|
18
|
M 5
|
98
|
|
GN 369.5-100-B12-A
|
100
|
B 12
|
20
|
30
|
20
|
88
|
50
|
20
|
21
|
M 6
|
119
|
|
GN 369.5-125-B12-A
|
125
|
B 12
|
20
|
30
|
20
|
88
|
50
|
20
|
21
|
M 6
|
140
|

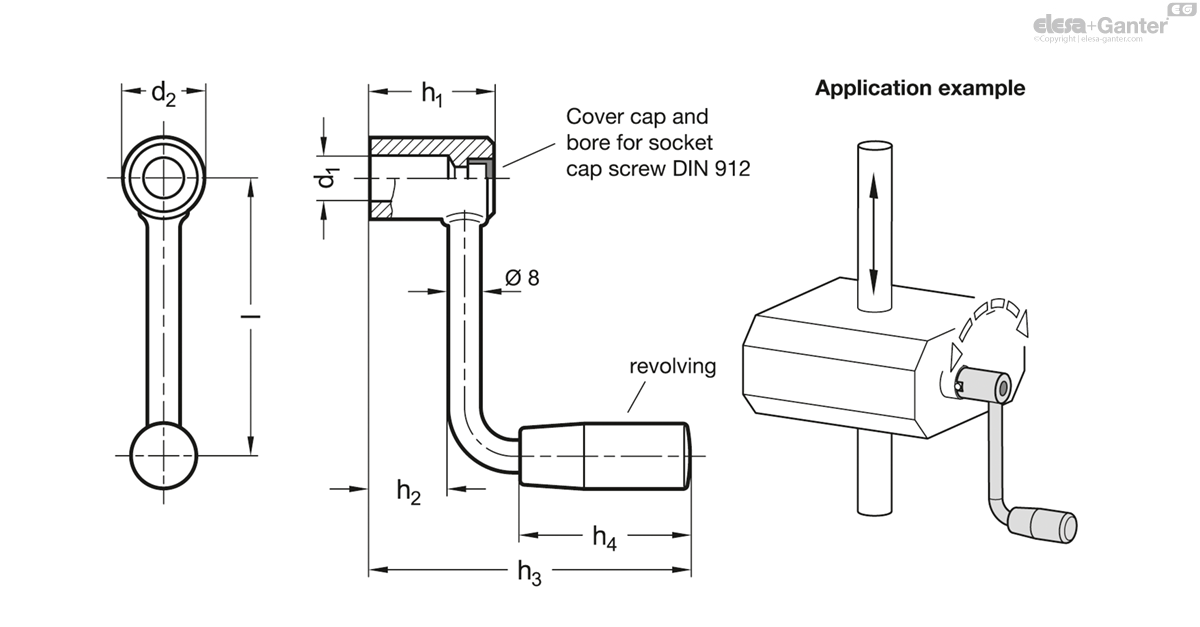

Types
- Type A: without slot
- Type N: with slot
Stainless Steel AISI 304
- shot-blasted
- Crank butt-welded
Cover cap
Plastic, black
Revolving handle
- Plastic, Duroplast, black, shiny finish
- temperature resistant up to 110 °C

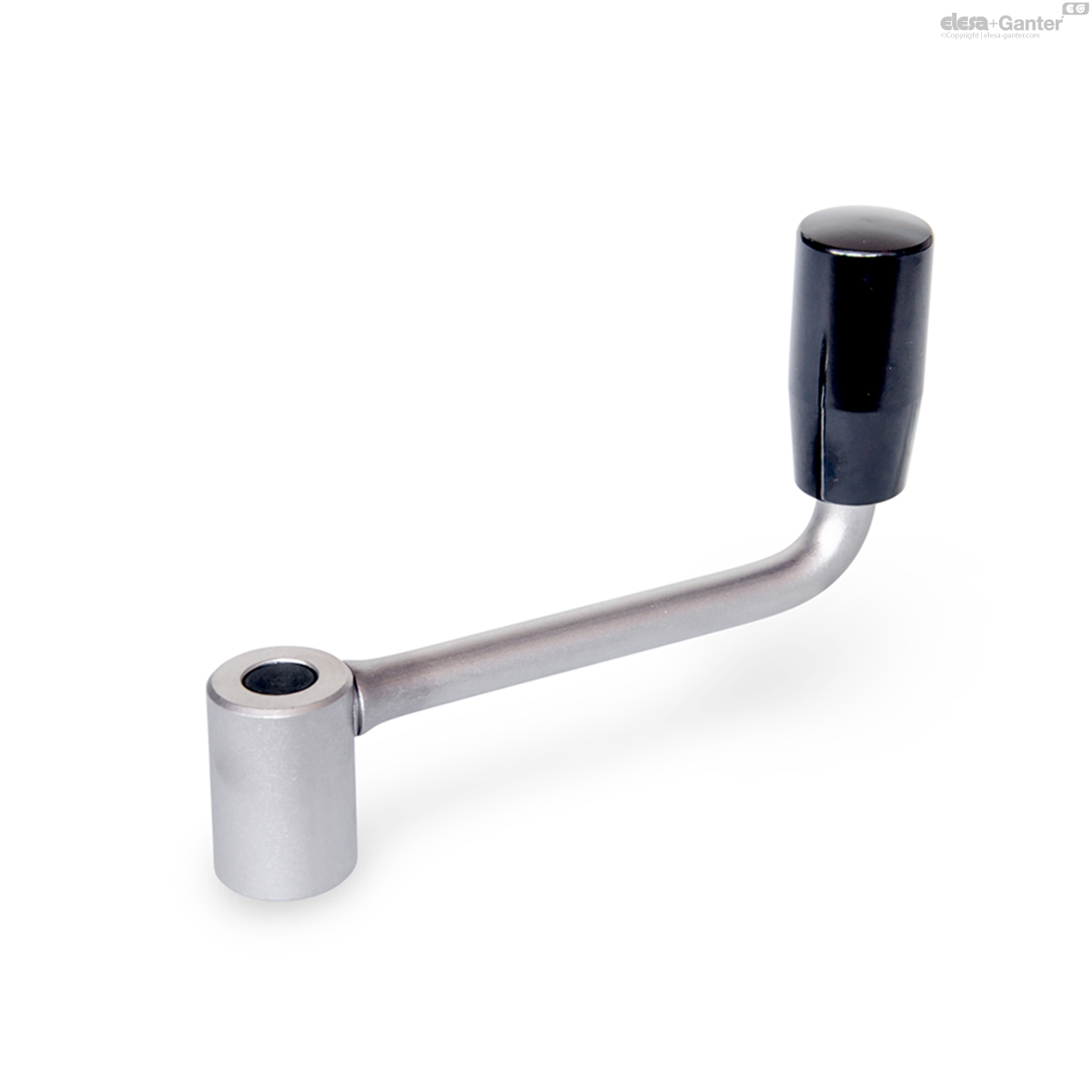

Stainless Steel-Cranks GN 369.5 feature a compact design and are used for light drive and positioning tasks. Thanks to the material used, the cranks are also suitable for more aggressive environments.
The slot of type N easily transfers the rotary movement to the shaft by means of a transverse pin mounted in the shaft. The crank can be connected removably or permanently fastened axially with a socket head cap screw DIN 912. Type A can be ordered with transverse holes for GN 110.
Thanks to a simple manufacturing process, it is relatively easy and inexpensive to produce these cranks as special designs.
