GN 306-ZKManettes indexables

Insert steel, spherical end

avec goujons filetés à pointe spéciale

  • Icons/__logo__RoHS__.png
pdf Other documents
GN 306-ZK
Insert steel, spherical end
GN 306-KD
Insert steel, spherical end with thrust pad POM
GN 306-ZKN
Insert stainless steel, spherical end
GN 306-DZ
Insert steel, hardened tip
GN 306-KDN
Insert stainless steel, spherical end with thrust pad POM
GN 306-KU
Insert steel, plastic tip
GN 306-NDN
Insert stainless steel, spherical end with thrust pad stainless steel
GN 306-RDN
Insert stainless steel, spherical end with thrust pad NBR
GN 306-KUN
Insert stainless steel, plastic tip
GN 306-MS
Insert steel, brass tip
GN 306-RD
Insert steel, spherical end with thrust pad NBR
GN 306-KS
Insert steel, conical end hardened
GN 306-MSN
Insert stainless steel, brass tip
R - RAL 3000
B - RAL 9005
O - RAL 2004
S - RAL 9006

GN 306-ZK

Code
l1
d1
l2
d3
d4
d7 +0.05
h1
h2
h3
h4 Stroke
l6
GN 306-30-M6-16-ZK-S
30
M 6
16
10
13
4.5
24.5
4
31
3.5
5.1
32
GN 306-30-M6-20-ZK-S
30
M 6
20
10
13
4.5
24.5
4
31
3.5
5.1
33
GN 306-30-M6-25-ZK-S
30
M 6
25
10
13
4.5
24.5
4
31
3.5
5.1
34
GN 306-30-M6-32-ZK-S
30
M 6
32
10
13
4.5
24.5
4
31
3.5
5.1
35
GN 306-30-M6-40-ZK-S
30
M 6
40
10
13
4.5
24.5
4
31
3.5
5.1
36
GN 306-30-M6-50-ZK-S
30
M 6
50
10
13
4.5
24.5
4
31
3.5
5.1
38
GN 306-45-M6-16-ZK-S
45
M 6
16
10
13
4.5
24.5
4
35
3.5
5.1
36
GN 306-45-M6-20-ZK-S
45
M 6
20
10
13
4.5
24.5
4
35
3.5
5.1
37
GN 306-45-M6-25-ZK-S
45
M 6
25
10
13
4.5
24.5
4
35
3.5
5.1
38
GN 306-45-M6-32-ZK-S
45
M 6
32
10
13
4.5
24.5
4
35
3.5
5.1
39
GN 306-45-M6-40-ZK-S
45
M 6
40
10
13
4.5
24.5
4
35
3.5
5.1
40
GN 306-45-M6-50-ZK-S
45
M 6
50
10
13
4.5
24.5
4
35
3.5
5.1
42
GN 306-63-M8-20-ZK-S
63
M 8
20
13.5
17.5
6.1
31
6.5
45
4
6.2
79
GN 306-63-M8-25-ZK-S
63
M 8
25
13.5
17.5
6.1
31
6.5
45
4
6.2
80
GN 306-63-M8-32-ZK-S
63
M 8
32
13.5
17.5
6.1
31
6.5
45
4
6.2
82
GN 306-63-M8-40-ZK-S
63
M 8
40
13.5
17.5
6.1
31
6.5
45
4
6.2
85
GN 306-63-M8-50-ZK-S
63
M 8
50
13.5
17.5
6.1
31
6.5
45
4
6.2
88
GN 306-63-M8-63-ZK-S
63
M 8
63
13.5
17.5
6.1
31
6.5
45
4
6.2
92
GN 306-63-M10-20-ZK-S
63
M 10
20
13.5
17.5
7.8
31
6.5
45
4
7.3
82
GN 306-63-M10-25-ZK-S
63
M 10
25
13.5
17.5
7.8
31
6.5
45
4
7.3
84
GN 306-63-M10-32-ZK-S
63
M 10
32
13.5
17.5
7.8
31
6.5
45
4
7.3
88
GN 306-63-M10-40-ZK-S
63
M 10
40
13.5
17.5
7.8
31
6.5
45
4
7.3
92
GN 306-63-M10-50-ZK-S
63
M 10
50
13.5
17.5
7.8
31
6.5
45
4
7.3
96
GN 306-63-M10-63-ZK-S
63
M 10
63
13.5
17.5
7.8
31
6.5
45
4
7.3
103
Insert Steel

Types

  • Type MS: Brass tip
  • Type KU: Plastic tip
  • Type DZ: Hardened tip
  • Type ZK: Spherical end
  • Type KD: Spherical end with thrust pad POM
  • Type RD: Spherical end with thrust pad NBR
  • Type KS: Conical end hardened

Handle

Zinc die casting

Powder coated

  • Black, RAL 9005, textured finish B
  • Orange, RAL 2004, textured finish O
  • Only type MS / KU / DZ / ZK / KD
  • Red, RAL 3000, textured finish R
  • Silver, RAL 9006, textured finish S
  • Only type MS / KU / DZ / ZK / KD

Insert / Retaining screw

Steel, blackened

  • Property class 5.8
  • Conical tip hardened for type KS

Tip

  • Brass for type MS
  • Plastic, Polyacetal (POM) for type KU
  • Steel, hardened (oval point) for type DZ

Thrust pad

  • Plastic, Polyacetal (POM) for type KD
  • Operating temperature up to 80 °C
  • Black, matte finish
  • Acrylonitrile butadiene rubber (NBR) for type RD
  • Hardness 85 ±5 Shore A
  • Operating temperature up to 120 °C
  • Black, matte finish
  • Disk stainless steel AISI 304
Insert Stainless Steel

Types

  • Type MSN: Brass tip
  • Type KUN: Plastic tip
  • Type ZKN: Spherical end
  • Type KDN: Spherical end with thrust pad POM
  • Type NDN: Spherical end with thrust pad stainless steel
  • Type RDN: Spherical end with thrust pad NBR

Handle

Zinc die casting

Powder coated

  • Black, RAL 9005, textured finish B
  • Red, RAL 3000, textured finish R

Insert / Retaining screw

Stainless steel AISI 303

Tip

  • Brass for type MSN
  • Plastic, Polyacetal (POM) for type KUN

Thrust pad

  • Plastic, Polyacetal (POM) for type KD
  • Operating temperature up to 80 °C
  • Black, matte finish
  • Stainless steel AISI 303 for type NDN
  • O-ring
  • Fluorine rubber (FKM)
  • Operating temperature up to 200 °C
  • Acrylonitrile butadiene rubber (NBR) for type RDN
  • Hardness 85 ±5 Shore A
  • Operating temperature up to 120 °C
  • Black, matte finish
  • Disk stainless steel AISI 304

Adjustable hand levers GN 306 are used in devices for tool-free clamping, pressing or fixation. To achieve a convenient clamping position, the handle can be lifted by the dimension h4 and then swiveled. Upon releasing, it snaps back into the serration under spring pressure.

The tip of types MS / KU / MSN / KUN helps prevent pressure marks or damage to the clamped workpiece. The conical end of type KS allows for simple positioning or centering in a corresponding mounting hole. The rounded tip of type DZ provides a pointed contact and angular compensation.

The thrust pad of types KD / RD / KDN / RDN enlarges the contact surface to protect surfaces from damage. In combination with the spherical end, the thrust pad forms a ball joint that adapts to uneven clamping surfaces. It also prevents the rotational movement from being transferred to the clamping surface during clamping.

The rubber coating of types RD / RDN also prevents slipping, provides a dampening effect and reduces noise. In this version, the disk is encased in vulcanized rubber to ensure high load capacity and dimensional stability.

The thrust pads are removable and are supplied unattached.

  • Handle in other colors
  • Flat handle GN 302 (Insert Steel)
  • Handle in stainless steel (Insert Stainless Steel)
Produits associés
Douille en laiton , trou fileté

ERX-B

Poignées réglables Technopolymère
Boutons à ailes

EWN-SST-p-P

Boutons à ailes Tampon en technopolymère,
Avec filetage interne / trou alésé

GN 300

Manettes indexables Zinc moulé sous pression, Douille / Boulon fileté Acier

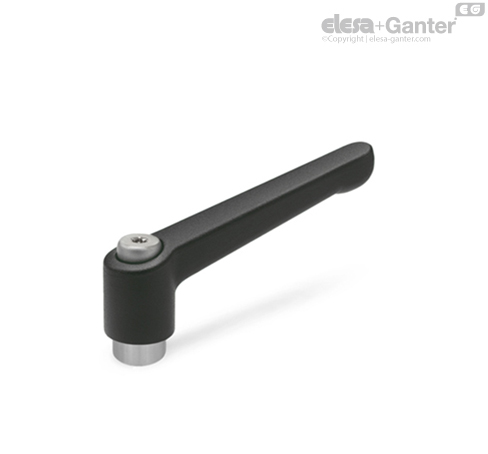

avec insert fileté
