GN 297Roues dentées de commande

Roues dentées de commande

avec chanfrein hélicoïdal pour actionneurs linéaires / unités de transfert avec engrenage angulaire

  • RoHS
Roues dentées de commande
Roues dentées de commande

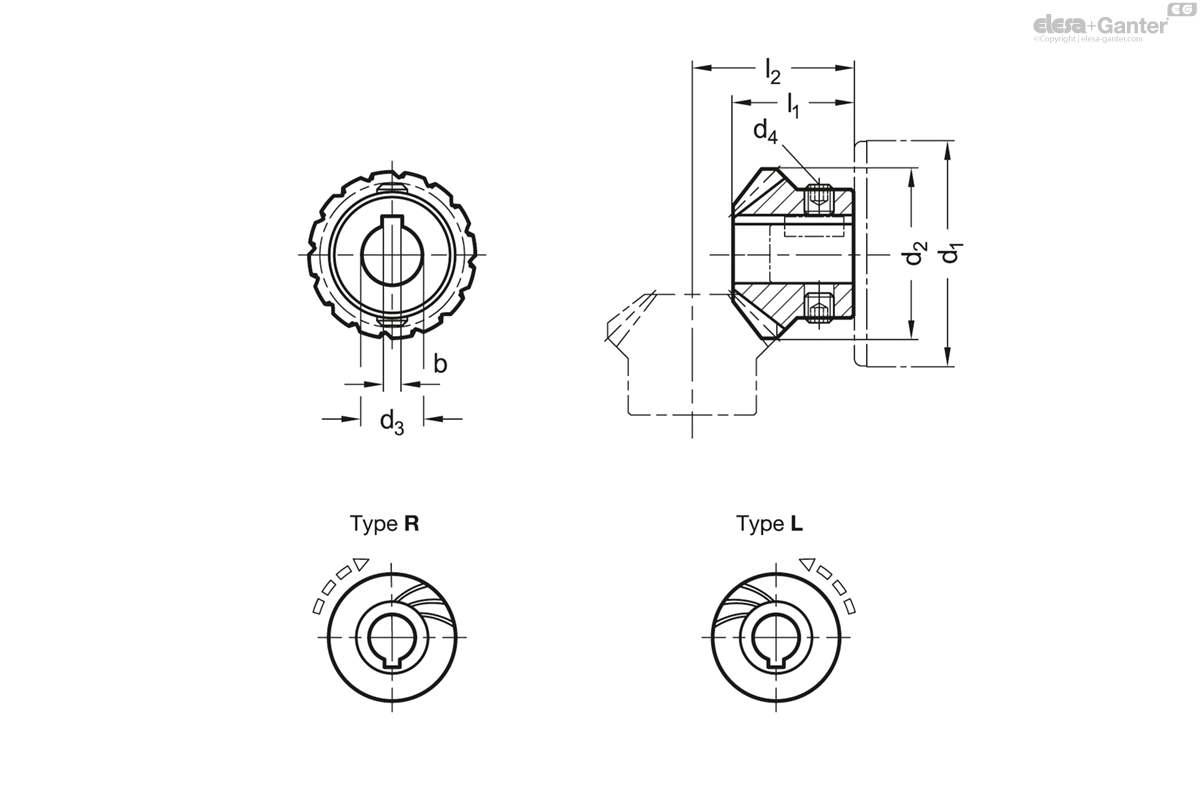

GN 297

Code
d1
d2
d3 H7 Bore
b
d4
l1
l2
weight
18
14.5
K 6
2
M 4
11
16
9
30
25
K 8
2
M 6
19
25
36
40 / 50
33
K 12
4
M 6
23.5
31
72
60
40
K 14
5
M 6
28
39
127
18
14.5
K 6
2
M 4
11
16
9
30
25
K 8
2
M 6
19
25
36
40 / 50
33
K 12
4
M 6
23.5
31
72
60
40
K 14
5
M 6
28
39
127
18
14.5
K 6
2
M 4
11
16
150
30
25
K 8
2
M 6
19
25
150
40 / 50
33
K 12
4
M 6
23.5
31
220
60
40
K 14
5
M 6
28
39
381
18
14.5
K 6
2
M 4
11
16
16
30
25
K 8
2
M 6
19
25
75
40 / 50
33
K 12
4
M 6
23.5
31
140
60
40
K 14
5
M 6
28
39
254
Types
  • Type R: Bevel gear wheel, right-hand pitch
  • Type L: Bevel gear wheel, left-hand pitch
  • Type W: Set of bevel gears, 2 bevel gears, 1 x right-hand pitch, 1 x left-hand pitch
  • Type T: Set of bevel gears, 3 bevel gears, 1 x right-hand pitch, 2 x left-hand pitch

Steel

Hardened

Teeth milled

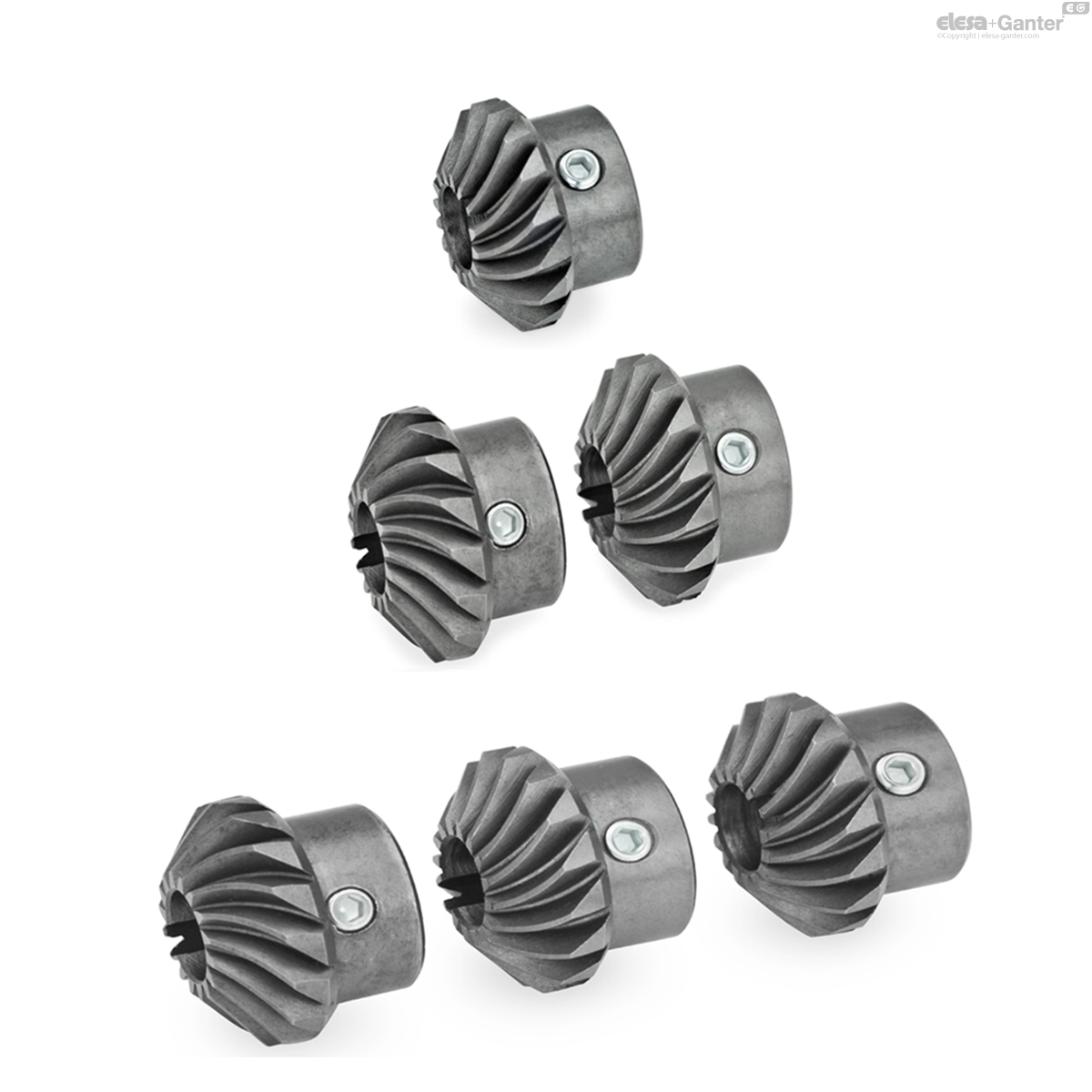

Bevel gear wheels GN 297 are used for angular / T-gears in connection with linear actuators / transfer units GN 391and housing GN 298 .

The spiral bevel facilitates both setting the desired clearance and locating the correct position of the bevel gears. Also, gears set up this way run with extremely low noise levels.

Two bevel gears are needed for an angular gear, three bevel gears are needed for a T-gear. These are available as set in type W resp. type T.

Please note that only bevel gears with different pitches can be paired. The transmission ratio is always 1:1, because the bevel gears always have the same number of teeth.



Two parallel sliding linear actuators GN 291 are connected with a transfer unit GN 391.

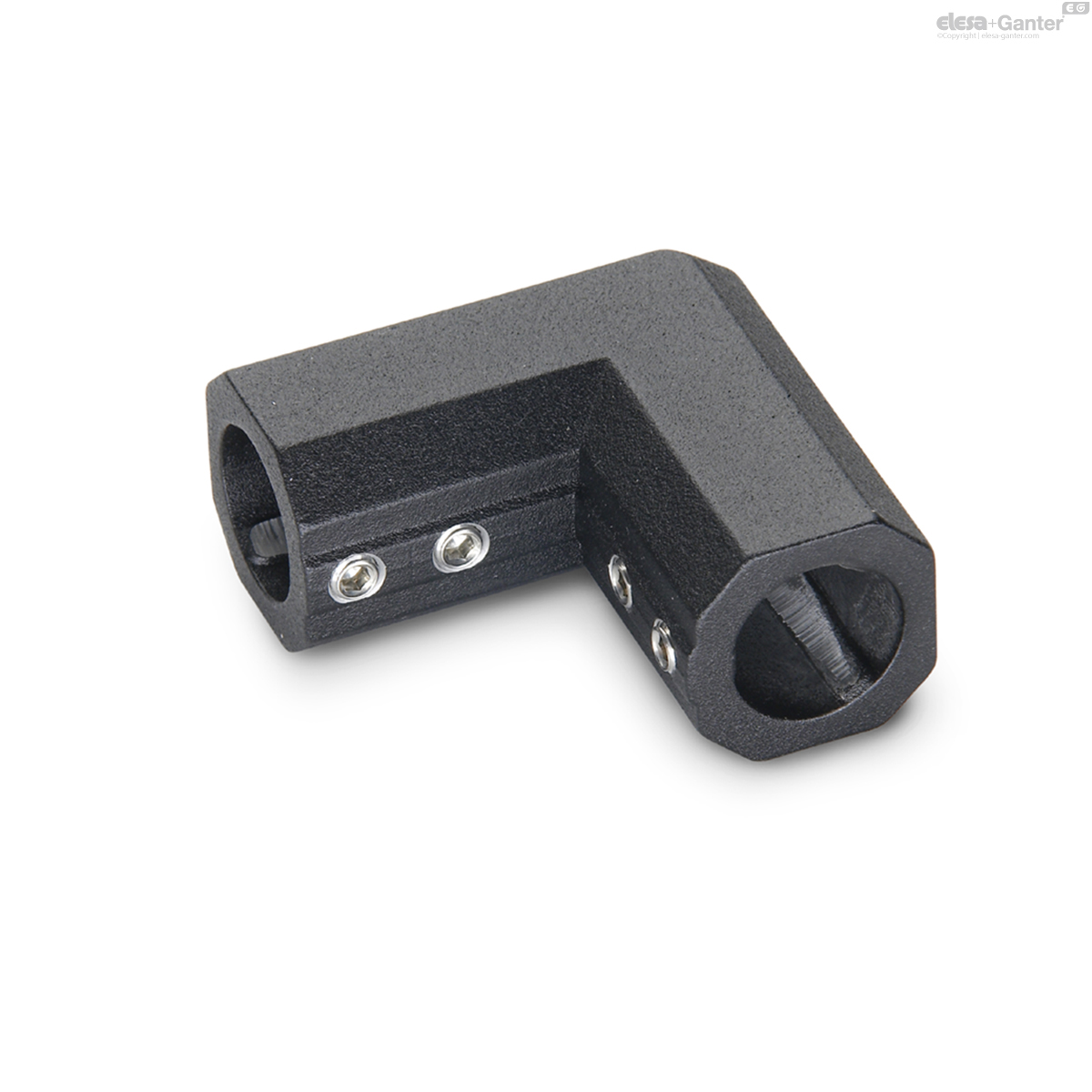

The angular housings GN 298-W including the bevel gear wheels GN 297 and another transfer unit GN 391 connect the handwheel with the system. The handwheel is placed in a rectangular position to the moving axes.



Two flanged linear actuator connectors GN 146.1 are moved parallel. For this two linear actuators GN 291 are connected with a transfer unit GN 391.

The T- and angular gear GN 298-T/-W including the bevel gear wheels GN 297 and another transfer unit GN 391 connect the handwheel with the system. The handwheel is placed in a parallel position to the moving axes.
