GN 227.7Volants
Volants
Acier embouti, pour vannes
|
Code
|
d1
|
s1
|
s2
|
d2
|
l1
|
l2 ±1
|
Spokes no.
|
Thickness of
pressed steel |
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
GN 227.7-125-VK11-SWK
|
125
|
VK 11
|
12.7
|
28
|
17
|
31
|
3
|
1.2
|
240
|
|
GN 227.7-150-VK12-SWK
|
150
|
VK 12
|
13.8
|
30
|
18
|
33.5
|
3
|
1.5
|
360
|
|
GN 227.7-200-VK14-SWK
|
200
|
VK 14
|
16
|
35
|
20
|
40.5
|
3
|
2
|
750
|
|
GN 227.7-250-VK17-SWK
|
250
|
VK 17
|
19.25
|
36
|
23
|
47
|
4
|
2
|
1100
|
|
GN 227.7-300-VK19-SWK
|
300
|
VK 19
|
21.8
|
42
|
28
|
59
|
5
|
2
|
1600
|
|
GN 227.7-400-VK24-SWK
|
400
|
VK 24
|
27
|
48
|
30
|
66
|
5
|
2.5
|
3100
|
Pressed steel
Pressed steel
Cathodic dip coated (KTL)
- Black, RAL 9005 SWK
- Red, RAL 3000 RTK
- Hub
- Steel, welded

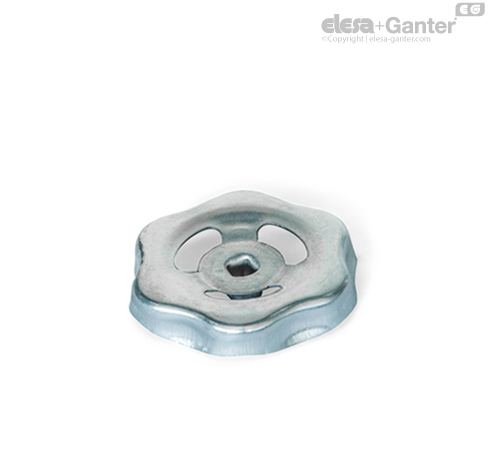

Handwheels GN 227.7 feature high mechanical strength and a coating for increased corrosion resistance. They are also not affected by shock and knocks.

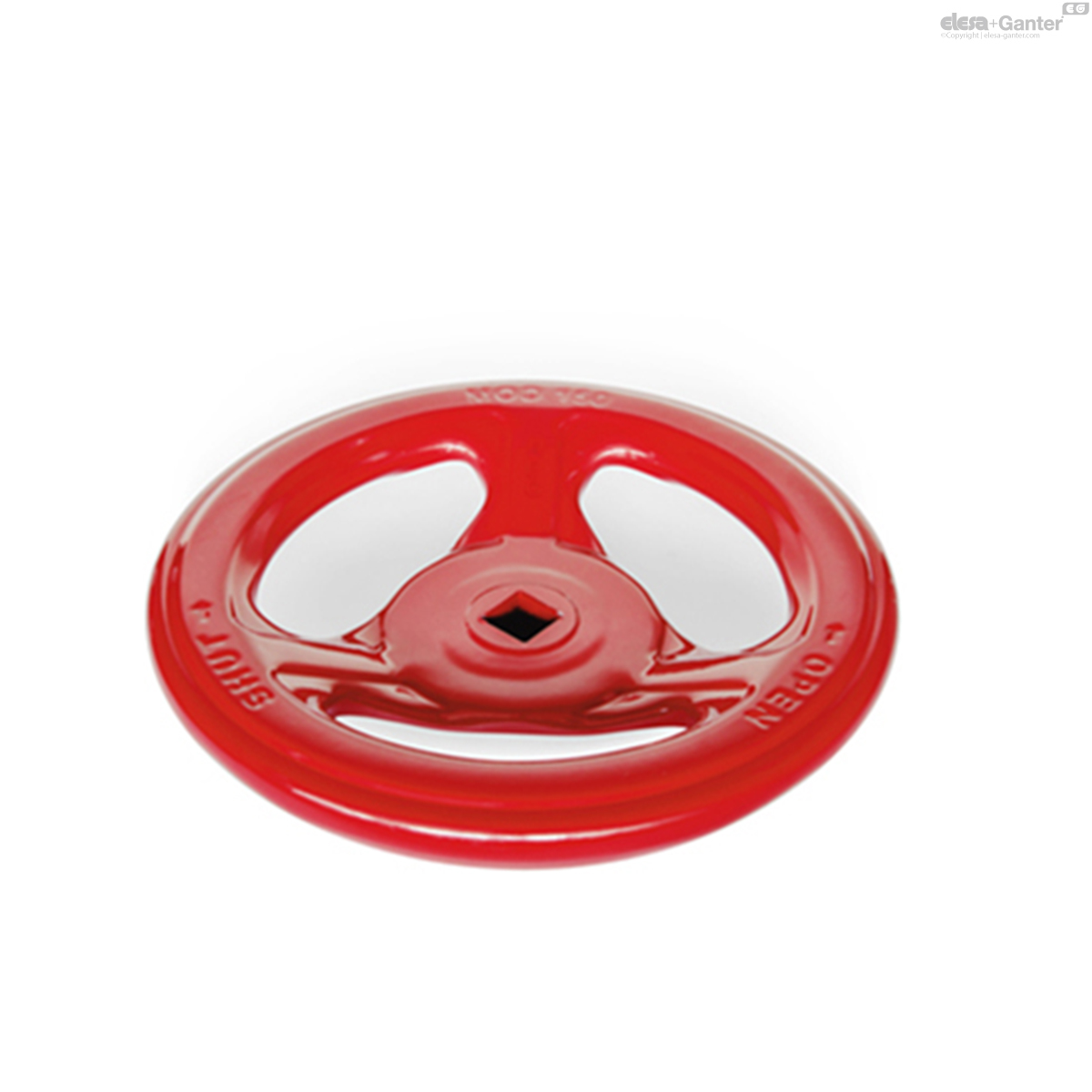

The conical square hole allows easy installation and firm seating on a spindle. The cast shape prevents injuries from sharp edges during handling. The engraved labels “SHUT” and “OPEN” help with safe and correct operation of the valves.
- GN 184 Countersunk Washers
