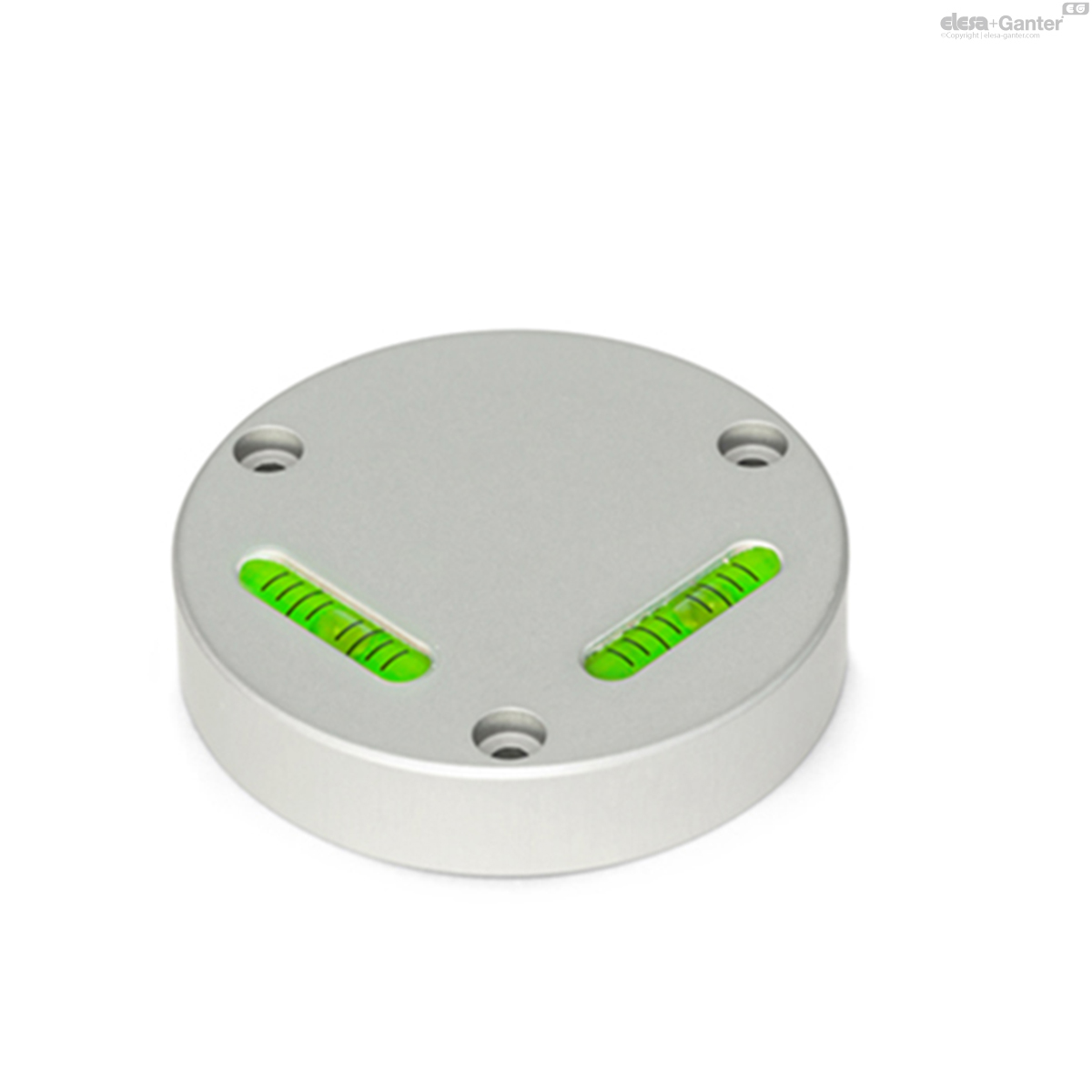

GN 2276-AVNiveaux à bulle croisés
montage aligné , par l'avant (non réglable)
pour montage avec vis
Sensitivity
- 6: Angle minutes, bubble move by 2 mm
- 50: Angle minutes, bubble move by 2 mm
Types
- Type AV: aligned, mounting from the front side (not adjustable)
- Type JV: adjustable, mounting from the front side
Housing
Aluminum
anodized, natural color ALN
anodized, black ALS
Spirit level element
Glass body
Filling
green-transparent G
Casting compound
mineral-based
Cross spirit levels GN 2276 are used to check the horizontal position of jigs, machines, devices, appliances and instruments.
The spirit levels of type AV are aligned in relation to the reference surface so that the bubbles are centered in the middle of the marking lines once the horizontal position of the contact surface is reached.
The spirit levels of type JV are aligned using the fastening holes that are offset by 120°.
An alignment ball on the bottom serves as a pivot point. With careful tightening, it is possible to achieve an alignment that places the bubbles between the middle marking lines.
- Filling, colorless-transparent
- Other sensitivities
Definition of terms
A spirit level is hollow body filled with a fluid and a gas bubble which is used to check the horizontal position of an object. The position of the gas bubble in the fluid shows the angle and the direction at which the object is inclined in relation to the horizontal level.
The function
The hollow body containing the fluid and the gas bubble has a defined radius at its topic side, causing the gas bubble to float by its buoyancy always to the highest point.
The transparent upper section normally carries markings or a circle centric to the biddle position. If the gas bubble is centered precisely inside the merking and if the air level is properly adjusted, the object to be checked is in the horizontal position.
Types of spirit levels
Spirit levels are available as bull´s eye levels or screw-on levels.
Bull´s eye levels simultaneously measure the angle of inclination and the angular position, e.g. of a certain level, whereas screw-on levels indicate the angle of inclination in one dimension only along the axis of the level.
Sensitivity
The sensitivity of spirit levels is given as angle of inclination, e.g. 30 angular minutes or 0.5 degrees. This is the angle of inclination by which the spirit level must be tilted to make the bubble move by 2 mm. A spirit level with a sensitivity of 6 angular minutes therefore has a higher sensitivity than a spirit level with a sensitivity of 30 angular minutes.
Angle of inclination and difference in altitude
Sensitivity is sometimes also given in millimetre per metre, i.e. as difference in altitude per unit of the length. See also the reference table opposite.
| Difference in altitude | Angle w | - |
| in milimetre per metre | in angular minutes | Degree, decimal |
| 0.3 | 1 | 0.0167 |
| 0.9 | 3 | 0.0500 |
| 1.7 | 6 | 0.1000 |
| 2.9 | 10 | 0.1667 |
| 5.8 | 20 | 0.3333 |
| 8.7 | 30 | 0.5000 |
| 11.6 | 40 | 0.6667 |
| 14.5 | 50 | 0.8333 |
| 17.5 | 60 | 1.0000 |
