Technical datasheet

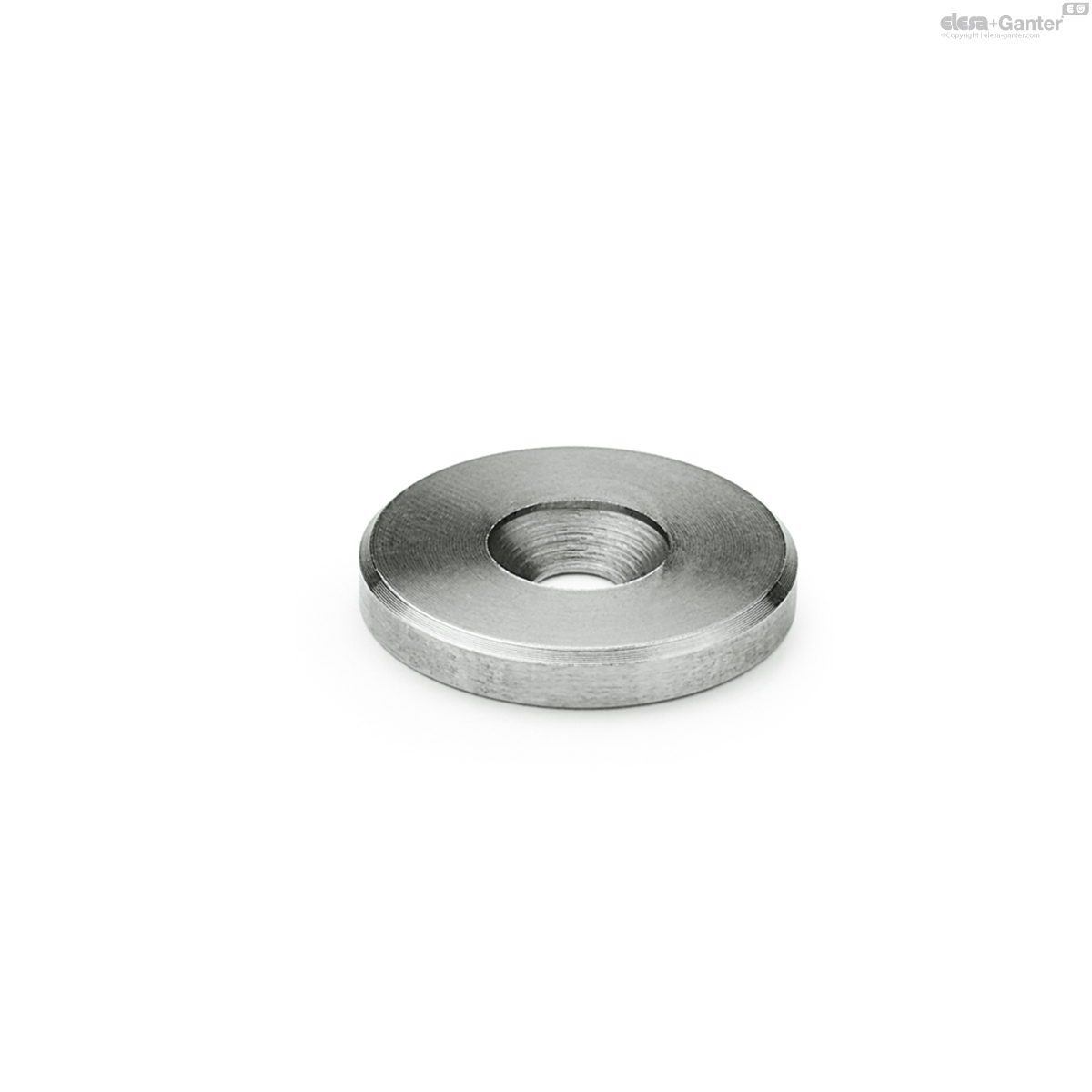

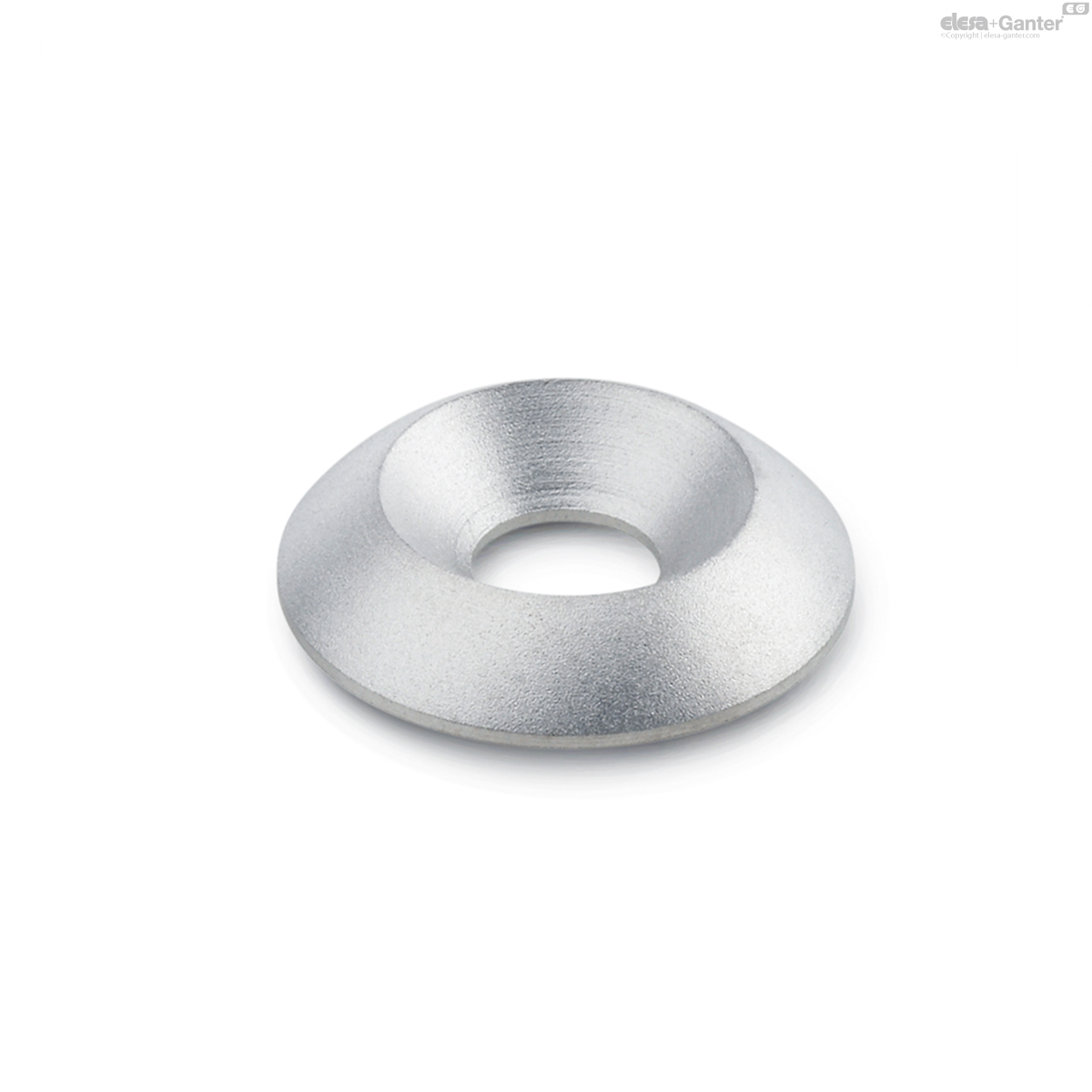

GN 184.5Rondelles fraisées
Rondelles fraisées
Acier inoxydable
|
Code
|
d1
|
d2
|
d3
|
s
|
For countersunk screws
DIN 7991 DIN ISO 2009 |
|
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
GN 184.5-12
|
12
|
3.2
|
6.5
|
2.5
|
M 3
|
2
|
|
GN 184.5-16
|
16
|
4.3
|
8.5
|
3
|
M 4
|
4
|
|
GN 184.5-20
|
20
|
4.3
|
8.5
|
3
|
M 4
|
7
|
|
GN 184.5-22
|
22
|
5.3
|
10.3
|
3.5
|
M 5
|
9
|
|
GN 184.5-25
|
25
|
5.3
|
10.3
|
3.5
|
M 5
|
12
|
|
GN 184.5-28
|
28
|
5.3
|
10.3
|
3.5
|
M 5
|
15
|
|
GN 184.5-32
|
32
|
6.4
|
12.3
|
4
|
M 6
|
23
|
|
GN 184.5-36
|
36
|
6.4
|
12.3
|
4
|
M 6
|
29
|
|
GN 184.5-40
|
40
|
6.4
|
12.3
|
5
|
M 6
|
46
|
|
GN 184.5-45
|
45
|
6.4
|
12.3
|
6
|
M 6
|
71
|
|
GN 184.5-52
|
52
|
6.4
|
12.3
|
6
|
M 6
|
95
|
Stainless steel AISI 303
- Turned
- Matte shot-blasted

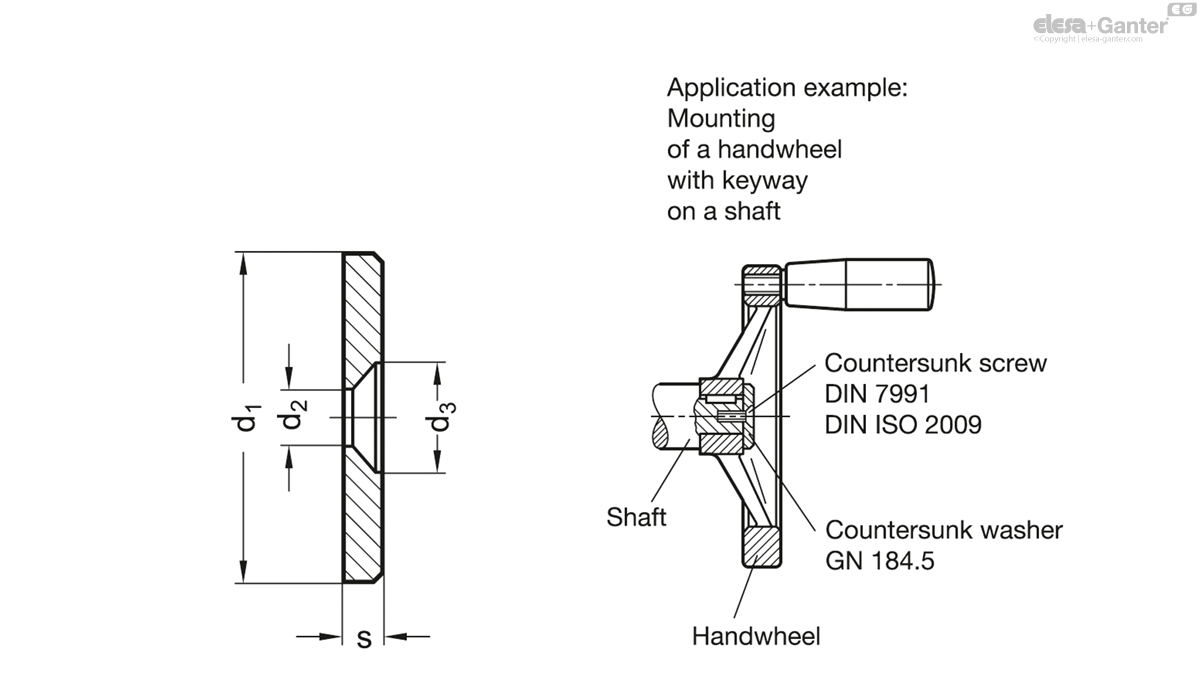

Countersunk washers GN 184.5 are retained to the face of the shaft end with a countersunk head screw DIN ISO 2009 or DIN 7991 forming a clean-look end cap.
A typical application is the retention of handwheels with hub keyed to the shaft.
