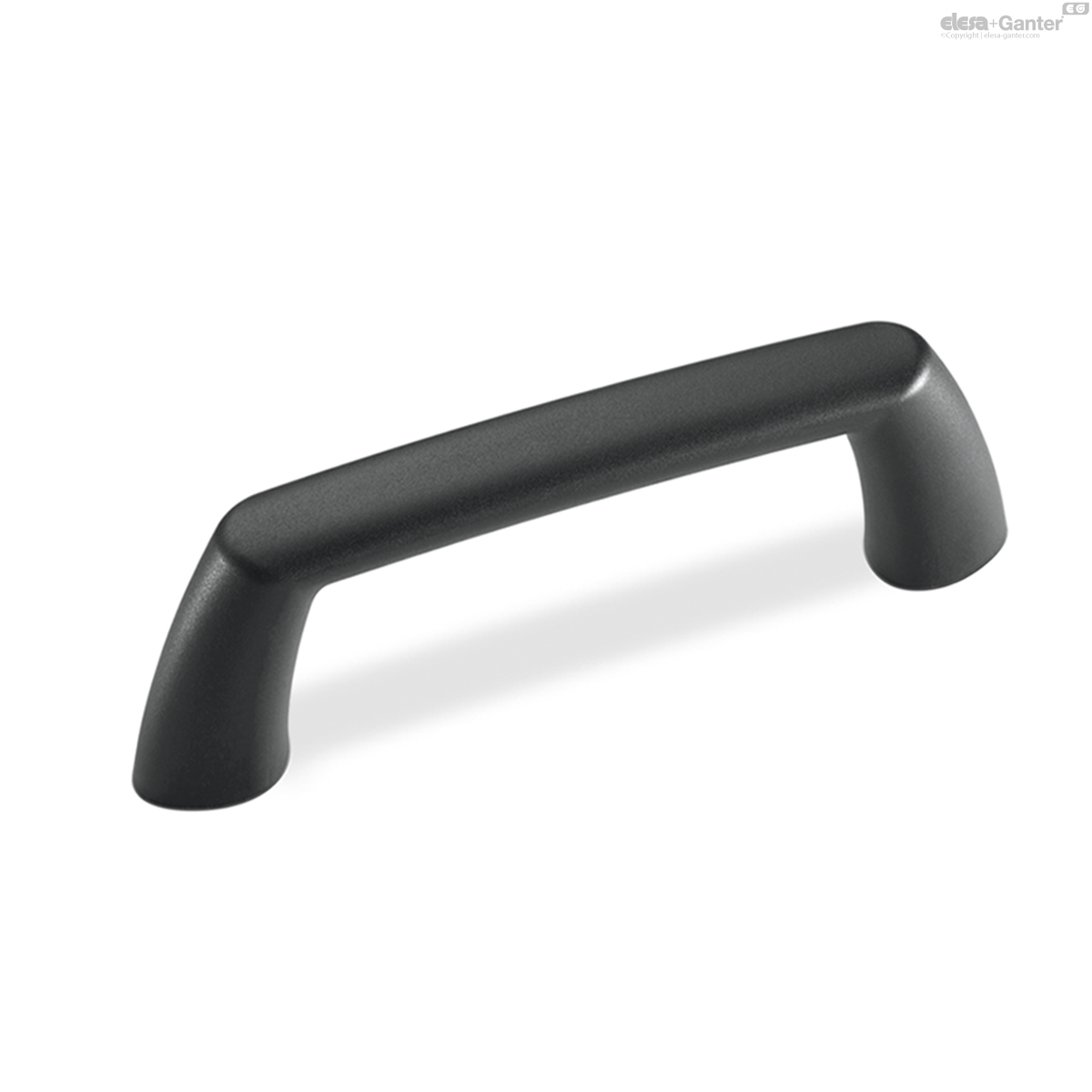

M.943Poignées de crémaillère

Poignées de crémaillère

Adapté aux applications sur rack 19, en technopolymère

Technical datasheet

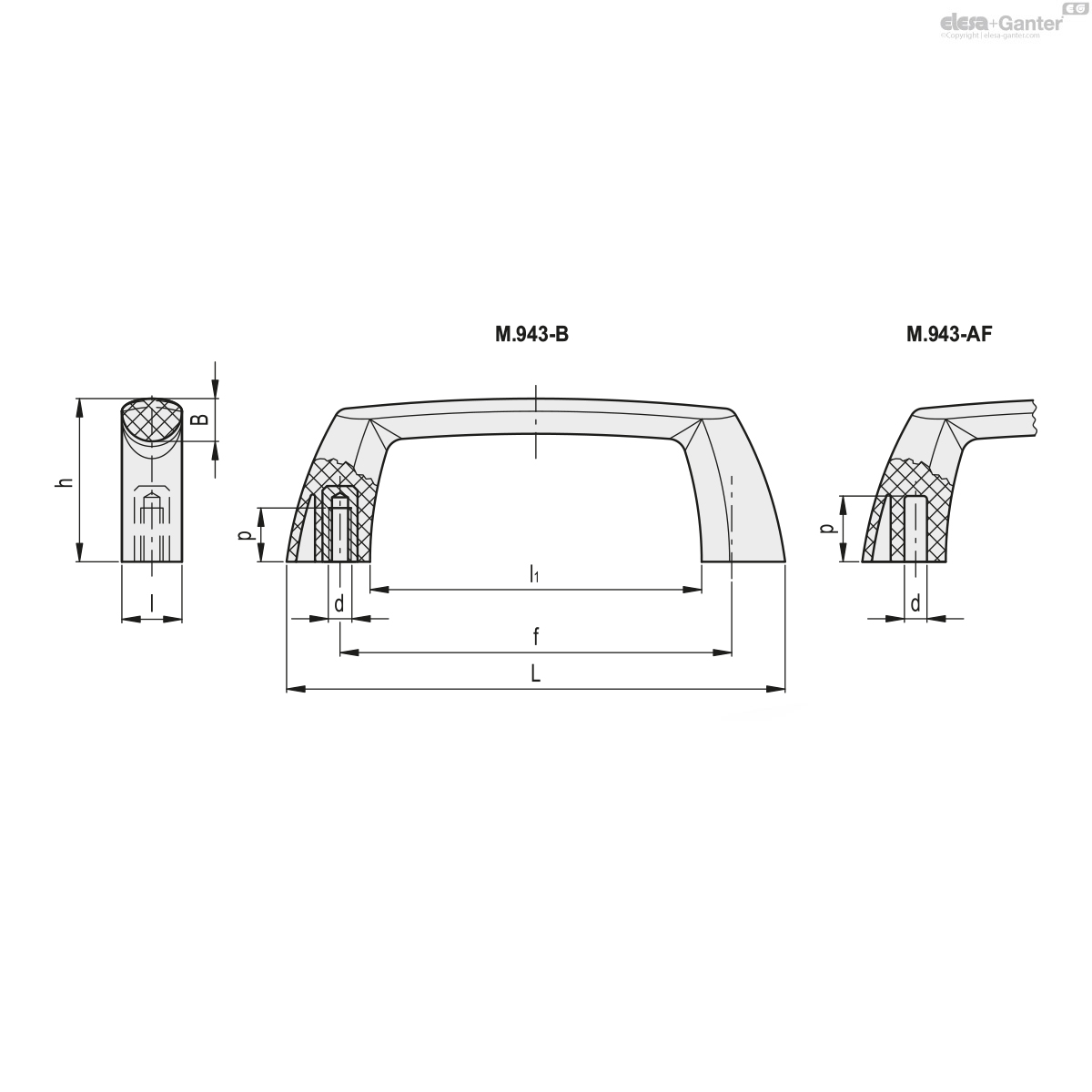

Code	Description	L	f	d	h	B	l	l₁	p	HE	F1 [N]	F2 [N]

137901	M.943-112-B-M5	112	88±0.5	M5	36.5	9	13.5	74.5	10	3	2000	2200
137921	M.943-144-B-M5	144	120±0.5	M5	42	11	15	105	10	4	2000	2200
137906	M.943-112-AF-4.8	112	88±0.5	4.5	36.5	9	13.5	74.5	14	3	2000	2200
137926	M.943-144-AF-4.8	144	120±0.5	4.5	42	11	15	105	14	4	2000	2200

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

M.943-B: brass bosses, threaded blind holes.
M.943-AF: blind holes for self-tapping screws Ø 4.8 (UNI ISO 7049). Maximum torque recommended 5 Nm.

Features and applications

Suitable for applications on a 19' rack and instruments in general.

In the column HE of the table below the height units of the front panel are contained: 1 HE = 44.45 mm (1 6/8') to enable you to choose the correct handles.

Technical data

Tensile stress and impact strength: F1, F2, L1 and L2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
