Technical datasheet
GN 951.2-STÉtriers de serrage
Acier

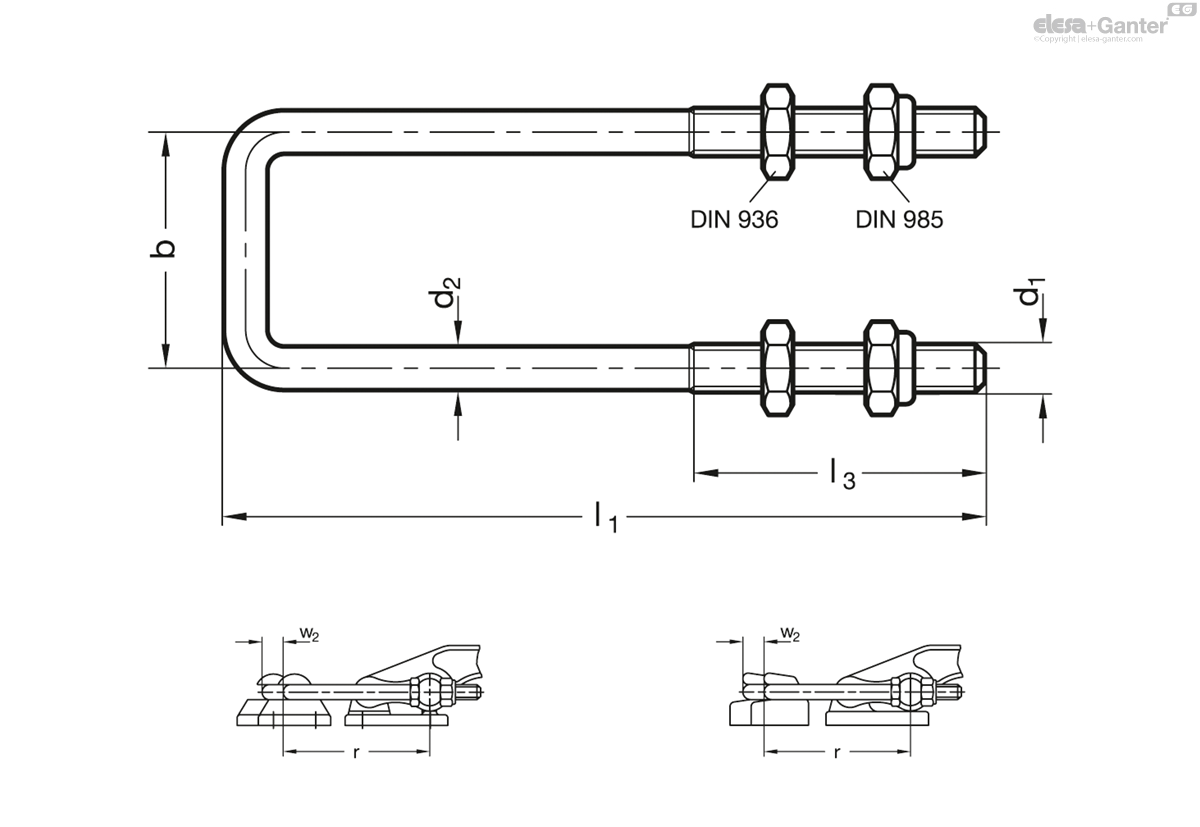

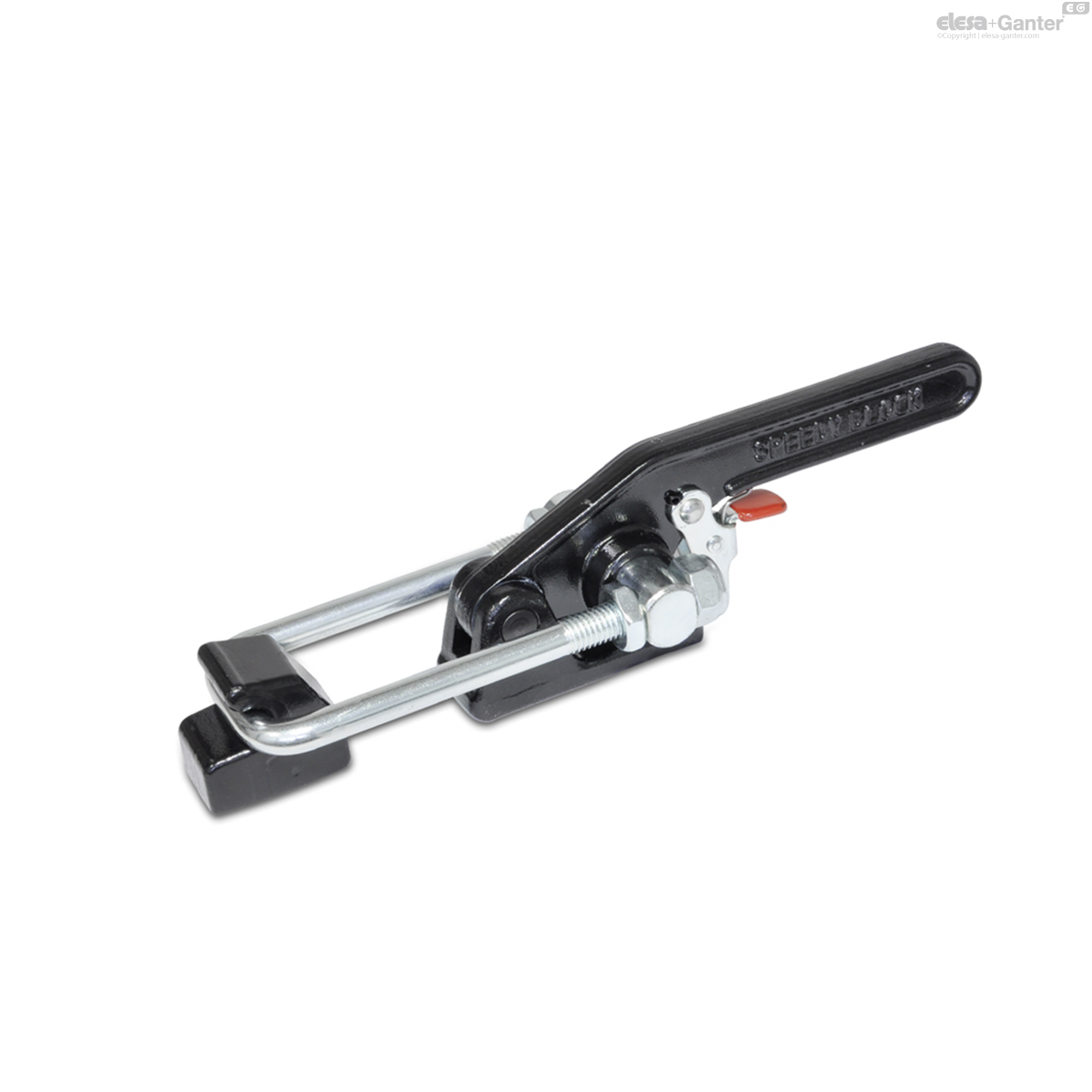

pour sauterelles à loquet GN 852 / GN 852.1 / GN 852.3, Acier / Acier inoxydable
GN 951.2-ST
|
Code
|
d1
|
b
|
l1
|
d2
|
l3
|
Size
|
GN 852 / GN 852.3 r at w2 =0
|
w2
|
Size
|
GN 852.1 r at w2=0
|
w2
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 951.2-M10-46-129-ST
|
M 10
|
46
|
129*
|
9
|
45
|
1700
|
96
|
15
|
1400
|
95
|
15
|
130
|
|
GN 951.2-M10-46-149-ST
|
M 10
|
46
|
149**
|
9
|
52
|
1700
|
106
|
22
|
1400
|
109
|
15
|
173
|
|
GN 951.2-M10-46-179-ST
|
M 10
|
46
|
179
|
9
|
45
|
1700
|
146
|
15
|
1400
|
145
|
15
|
220
|
|
GN 951.2-M10-46-209-ST
|
M 10
|
46
|
209
|
9
|
45
|
1700
|
176
|
15
|
1400
|
175
|
15
|
250
|
|
GN 951.2-M10-46-259-ST
|
M 10
|
46
|
259
|
9
|
45
|
1700
|
226
|
15
|
1400
|
225
|
-
|
300
|
|
GN 951.2-M12-55-151-ST
|
M 12
|
55
|
151*
|
10.8
|
70
|
4000
|
107
|
25
|
-
|
-
|
-
|
250
|
|
GN 951.2-M12-55-211-ST
|
M 12
|
55
|
211
|
10.8
|
70
|
4000
|
156
|
36
|
-
|
-
|
-
|
360
|
|
GN 951.2-M12-55-361-ST
|
M 12
|
55
|
361
|
10.8
|
70
|
4000
|
306
|
36
|
-
|
-
|
-
|
600
|
|
GN 951.2-M12-55-421-ST
|
M 12
|
55
|
421
|
10.8
|
70
|
4000
|
366
|
36
|
-
|
-
|
-
|
680
|
* These square U-bolt lengths are included in the delivery of standard orders for GN 852 / GN 852.3.** This square U-bolt lengths is included in the delivery of standard orders for GN 852.1 and is only available in steel.

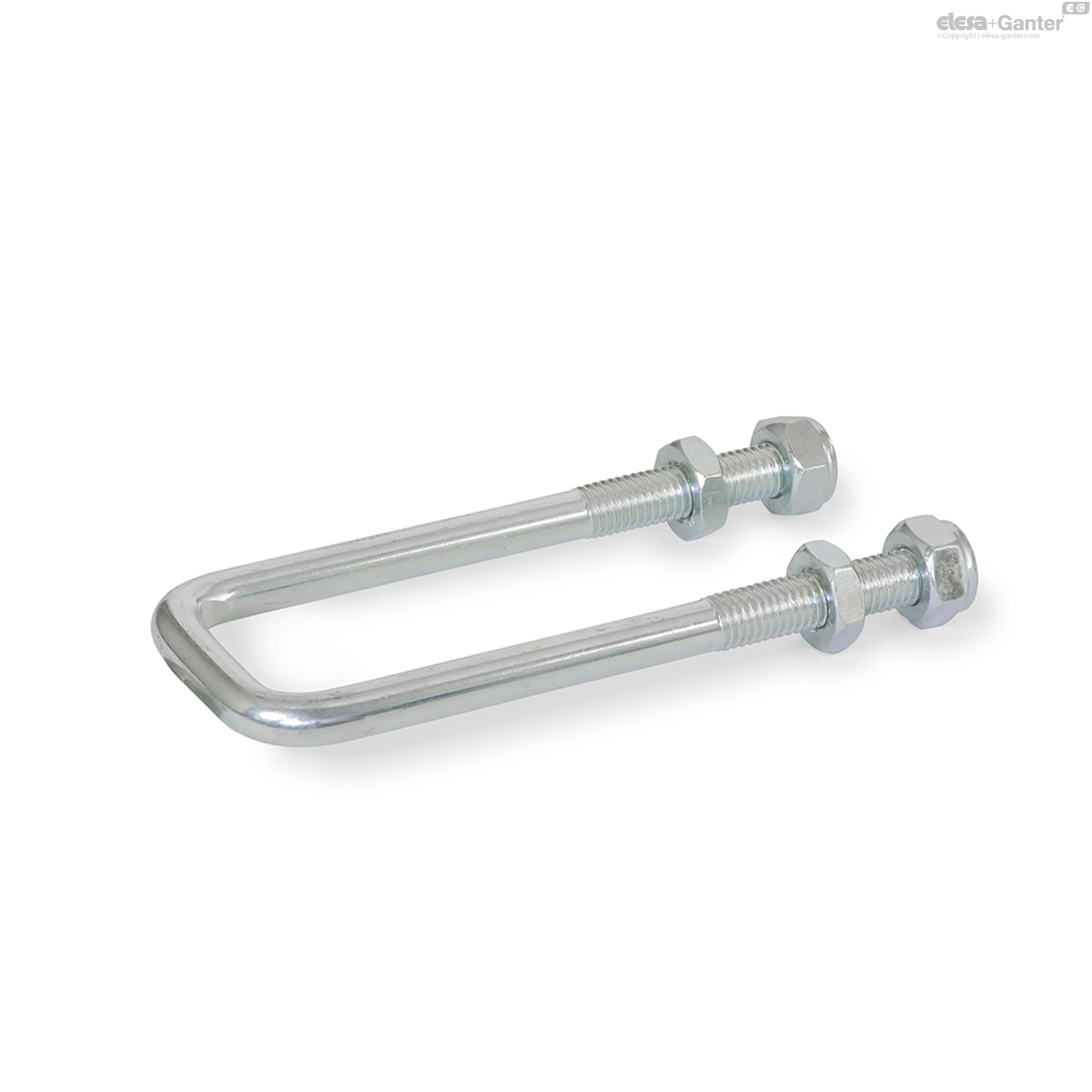

Version in Steel
Steel ST
Zinc plated, blue passivated
Hex nuts (with polyamide insert)
DIN 936 / DIN 985
Steel, zinc plated

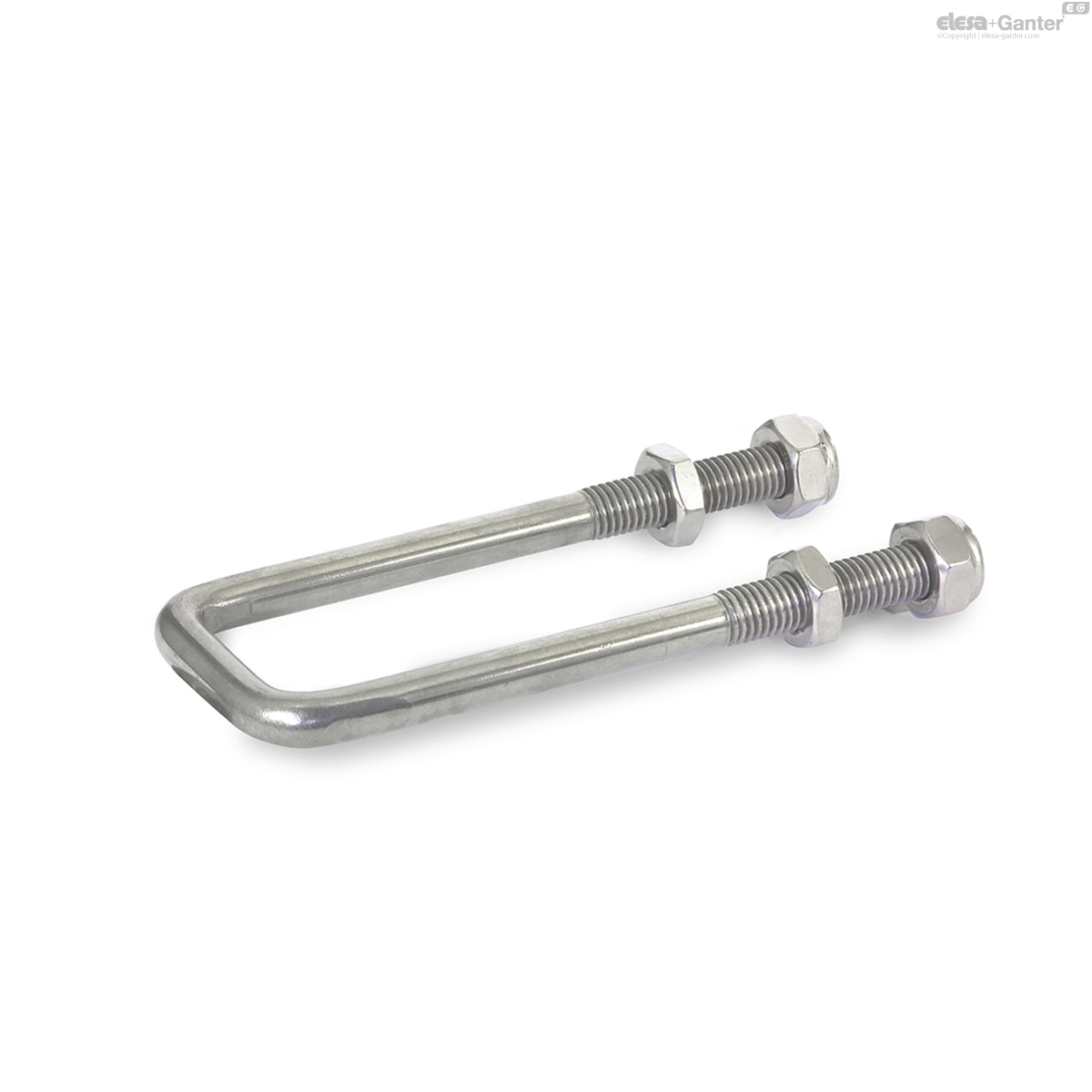

Version in Stainless Steel
Stainless steel AISI 304 NI
Hex nuts (with polyamide insert)
DIN 936 / DIN 985
Stainless steel
