951.2-M12-55-361-ST GN 951.2-ST Acier
pour sauterelles à loquet GN 852 / GN 852.1 / GN 852.3, Acier / Acier inoxydable
Disponible immédiatement (1-2 jours ouvrables)
Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte

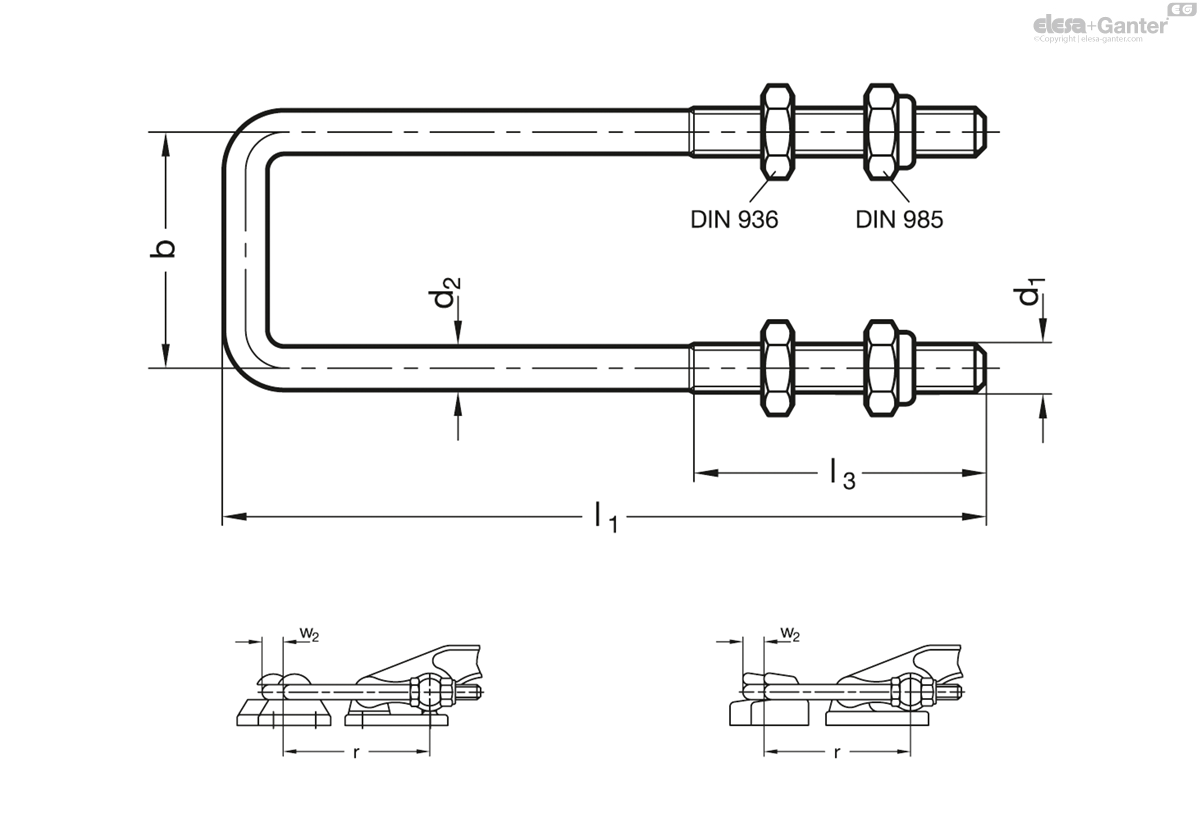

Fiche technique
Caractéristiques techniques
- Code
- GN 951.2-M12-55-361-ST
- d1
- M 12
- b
- 55
- l1
- 361
- d2
- 10.8
- l3
- 70
- Size
- 4000
- GN 852 / GN 852.3 r at w2 =0
- 306
- w2
- 36
- 600
* These square U-bolt lengths are included in the delivery of standard orders for GN 852 / GN 852.3.** This square U-bolt lengths is included in the delivery of standard orders for GN 852.1 and is only available in steel.
Version in Steel
Steel ST
Zinc plated, blue passivated
Hex nuts (with polyamide insert)
DIN 936 / DIN 985
Steel, zinc plated
Version in Stainless Steel
Stainless steel AISI 304 NI
Hex nuts (with polyamide insert)
DIN 936 / DIN 985
Stainless steel
