706.4-26-B10-ST GN 706.4-ST Acier

706.4-26-B10-ST

GN 706.4-ST Acier

Acier / Aluminium / Acier inoxydable , avec levier réglable
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 706.4

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 706.4-26-B10-ST
d1
26
d2 H10
B 10
b ±0.2
11
d3
M 4
d4
10.5
l1
37
l2
30
s
2.1
46

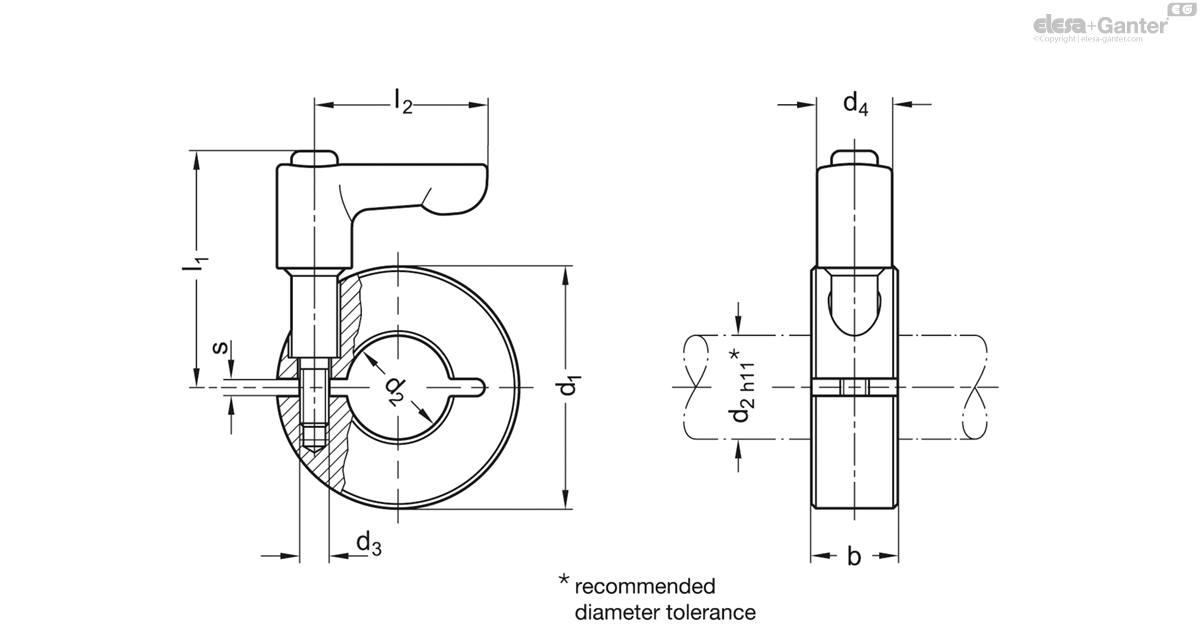

706.4-26-B10-ST drawing
null

Shaft Collar

  • Steel ST
  • Sintered
  • Black oxidized with vapor
  • Aluminum AL
  • Turned, tumbled
  • Stainless steel AISI 316L NI
  • Sintered

Adjustable hand lever

Zinc die casting

  • Powder coated
  • Black RAL 9005, textured finish
  • Screw insert / Retaining screw
  • Stainless steel AISI 303

Semi-split shaft collars GN 706.4 can safely and simply be clamped by reducing the slot height by using an adjustable hand lever and thus they act, for instance, like an end stop.

This version offers great advantages especially for applications that demand new positions of the shaft collar.

The thread d3 for sizes d1 = 32 and 36 is designed as a through hole; for sizes d1 = 42 and larger, it is designed as blind hole.
