842-160-AS-NI
GN 842-NI Acier inoxydable
Acier / Acier inoxydable , pour serrage push-pull
En stock Toutes les tailles et variantes de GN 842
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

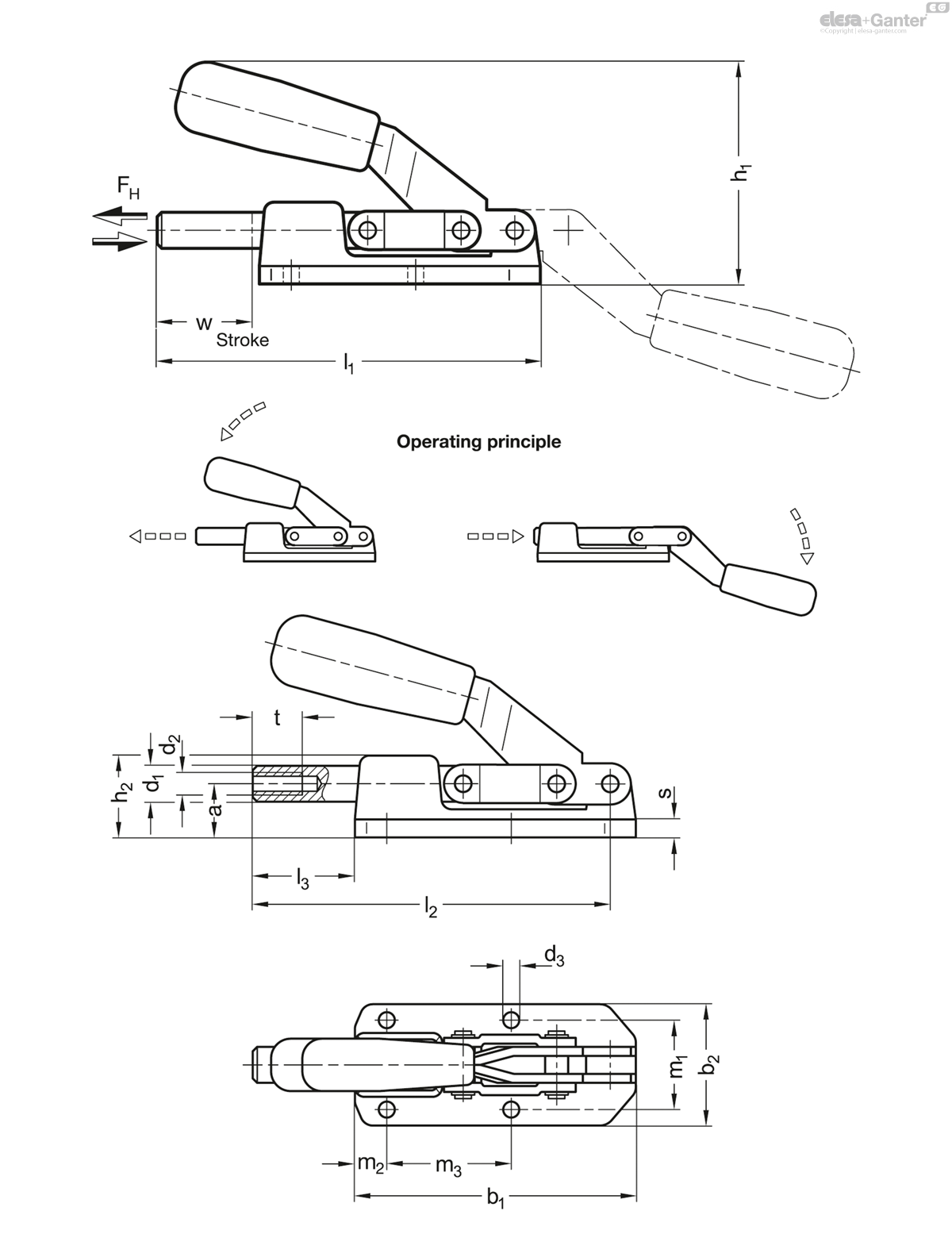

Caractéristiques techniques
- Code
- GN 842-160-AS-NI
- Size
- 160
- FH in N
- 2800
- a
- 15
- b1
- 85
- b2
- 46
- d1
- 11
- d2
- M 6
- d3
- 5.3
- h1 ≈
- 59
- h2 ≈
- 25
- l1
- 116
- l2 ≈
- 107
- l3
- 31
- m1
- 33.5
- m2
- 11.5
- m3
- 36.5
- s
- 7
- t
- 12
- w
- 30
- 360
Type
- Type AS: Body forged
Steel
- Body manganese phosphated
- Sheet metal, case-hardened steel C10
Zinc plated, blue passivated
- Plunger steel St 37
Zinc plated, blue passivated
- Bearing pins (rivets)
Case-hardened
Zinc plated, blue passivated
Stainless steel NI
- Body AISI 304
- Sheet metal AISI 304
- Plunger AISI 303
- Bearing pins (rivets) AISI 304
All moving parts
Lubricated with special grease
Solid designed plastic handle
Red, oil resistant
Push-pull type toggle clamps GN 842 can be used for very high holding capacities thanks to their massive and sturdy body.
On the size 70, the mounting holes are provided with cylindrical countersinks for the use of hexagon socket head screws DIN 912-M4.
- Clamping Screws
