TCC-CR-18-18-C9
TCC-CR Pinces de connexion bidirectionnelles
Délai: 1-2 semaines Toutes les tailles et variantes de TCC-CR
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

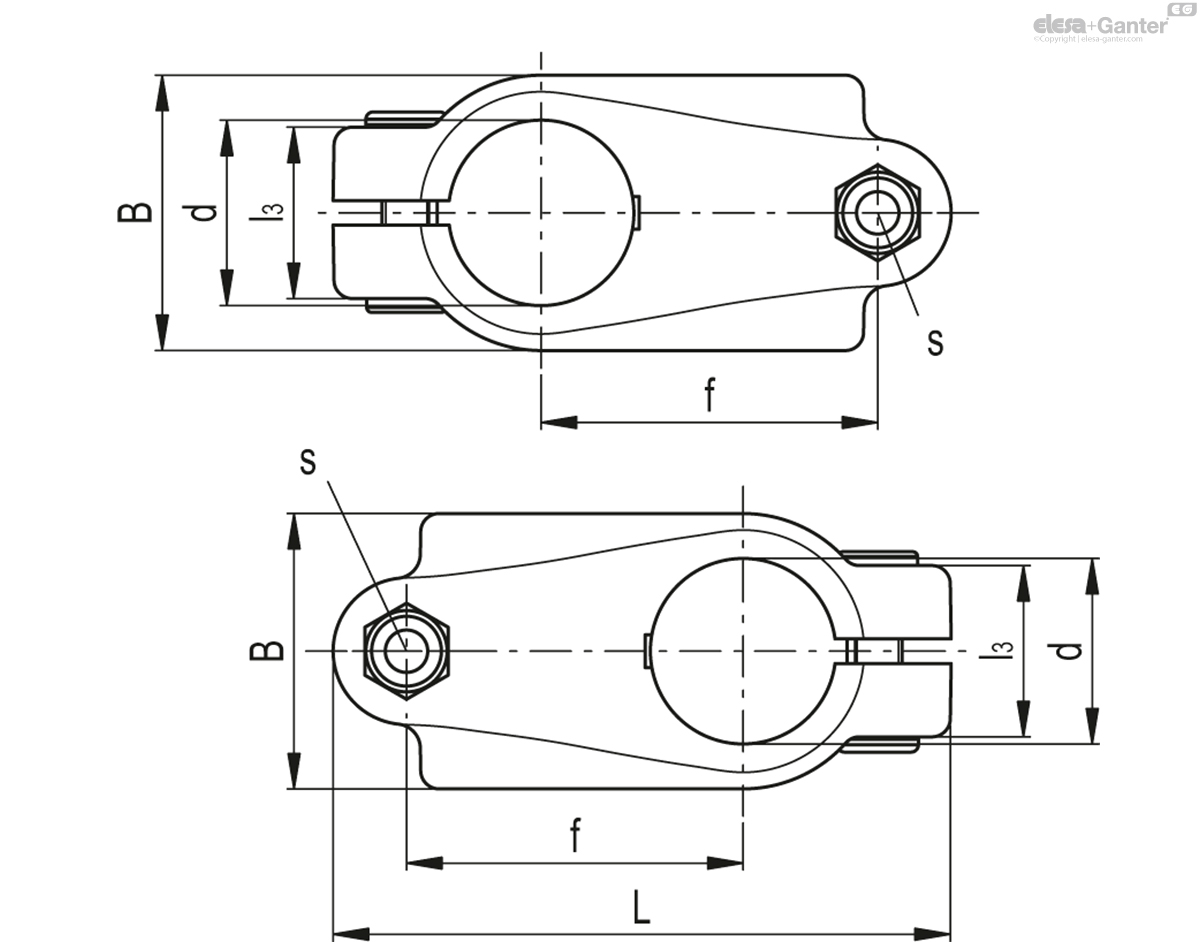

Caractéristiques techniques
- Code
- 600121-C9
- d
- 18
- L
- 65
- B
- 29
- f
- 34
- l3
- 21
- s
- M6
- C#
[Nm] - 5
- F1*
[N] - 2150
- M1**
[Nm] - 17
- 43
Clamp
Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, resistant to UV rays, matte finish.
Screws and nuts (supplied)
Cylindrical-head screw with hexagon socket in AISI 304 stainless steel with anti-seizure treatment.
Self-locking nuts in AISI 304 stainless steel.
Features
Clamps for tubes with a diameter of 18 ± 0.2 and 30 ± 0.2 mm.
For smaller diameter tubes, the hole reduction sleeve TCC-A can be used (ordered separately).

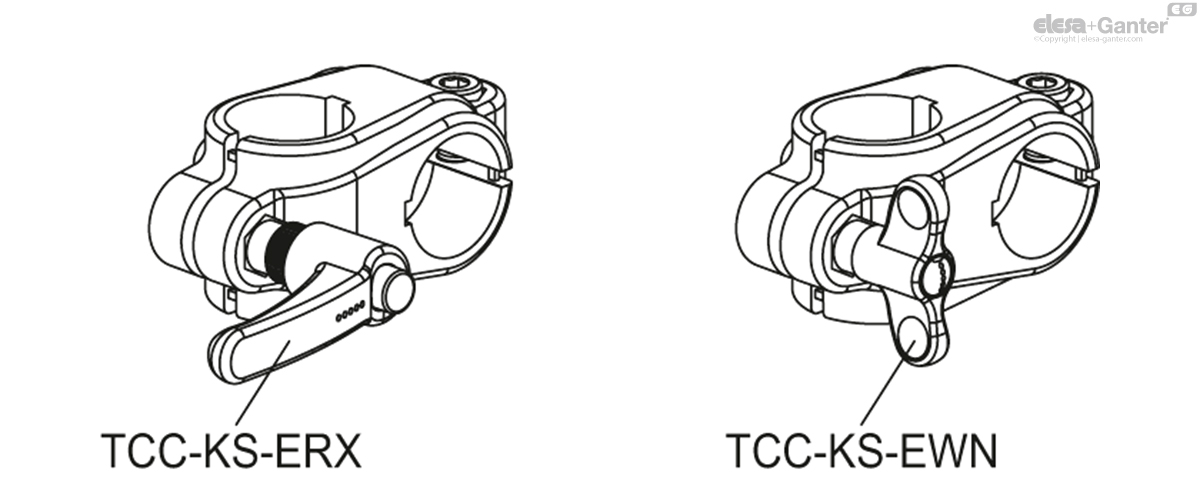

The 's' grub screws may be replaced by the kit TCC-KS.

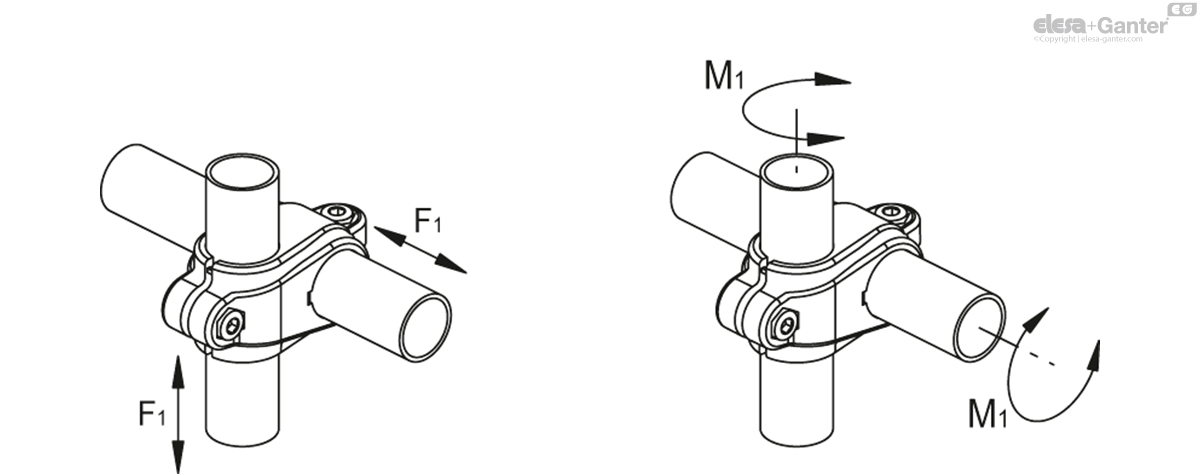

Technical data
The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the suggested torque 'C#'.
