8675-M16X1,5-035-A4 ISO 8675-A4 Acier inoxydable , AISI 316 (A4)

8675-M16X1,5-035-A4

ISO 8675-A4 Acier inoxydable , AISI 316 (A4)

Acier / Acier inoxydable, avec filetage métrique fin
  • INOX
  • RoHS

Délai: 1-2 semaines Toutes les tailles et variantes de ISO 8675

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
ISO 8675-M16x1,5-035-A4
d
M 16 x 1.5
b
8
e
26.8
s
24
19

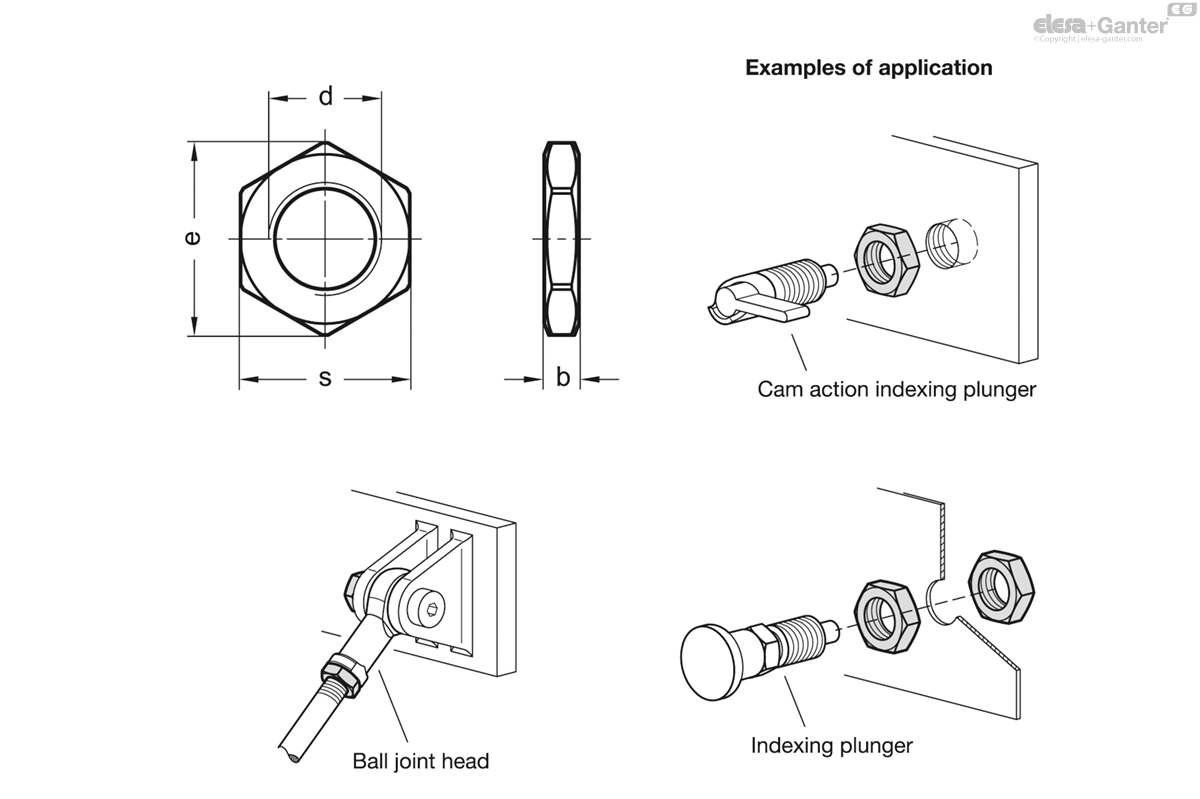

8675-M16X1,5-035-A4 drawing

Version in Steel

  • Tensile strength class 04
  • blackened BT
  • zinc plated, blue passivated ZB

Version in Stainless Steel

  • Tensile strength class 035
  • AISI 304 (A2) NI
  • AISI 316 (A4) A4

Low form hexagon nuts with a fine thread ISO 8675 are used in bolted connections, e.g. as lock nuts to lock components and prevent accidental loosening, turning or shifting.

In addition, the nuts are also used together with indexing plungers, cam action indexing plungers, guide bushings or joint heads.

The flat design makes the hexagon nuts ideal for shorter threads. When mounting indexing plungers, they reduce the adjustment range only slightly, which may be of significance especially when using two lock nuts.

  • other threads
