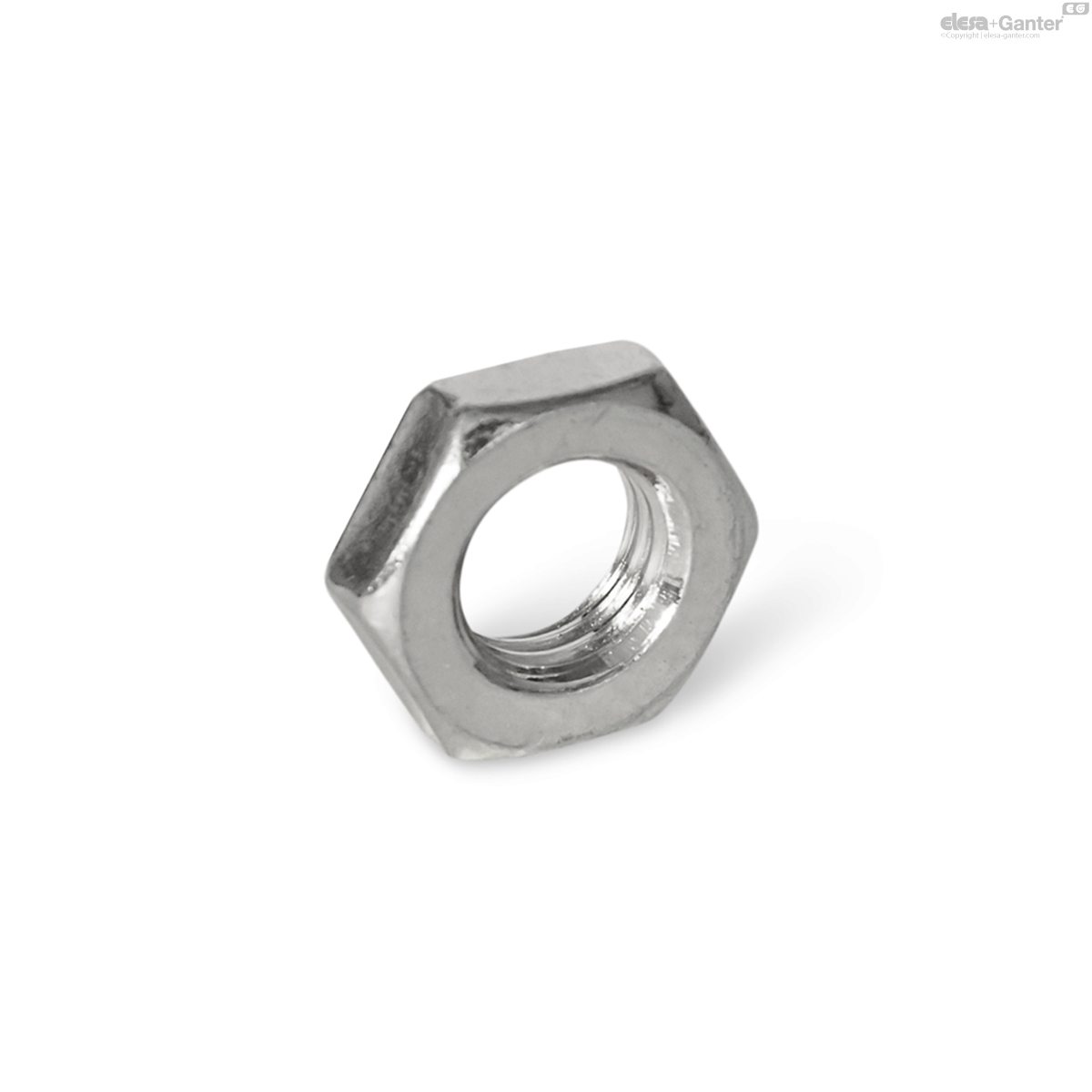

8675-M16X1,5-035-A4
ISO 8675-A4 Stainless Steel, AISI 316 (A4)
Steel / Stainless Steel, with Metric Fine Thread
Eta: 1-2 weeks All sizes and variants of ISO 8675
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- ISO 8675-M16x1,5-035-A4
- d
- M 16 x 1.5
- b
- 8
- e
- 26.8
- s
- 24
- 19
Version in Steel
- Tensile strength class 04
- blackened BT
- zinc plated, blue passivated ZB
Version in Stainless Steel
- Tensile strength class 035
- AISI 304 (A2) NI
- AISI 316 (A4) A4
Low form hexagon nuts with a fine thread ISO 8675 are used in bolted connections, e.g. as lock nuts to lock components and prevent accidental loosening, turning or shifting.
In addition, the nuts are also used together with indexing plungers, cam action indexing plungers, guide bushings or joint heads.
The flat design makes the hexagon nuts ideal for shorter threads. When mounting indexing plungers, they reduce the adjustment range only slightly, which may be of significance especially when using two lock nuts.
