LS.A-40-PP-14-SST-M10x43
LS.A-PP-SST Sans disque antidérapant
En stock Toutes les tailles et variantes de LS.A-PP-SST
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

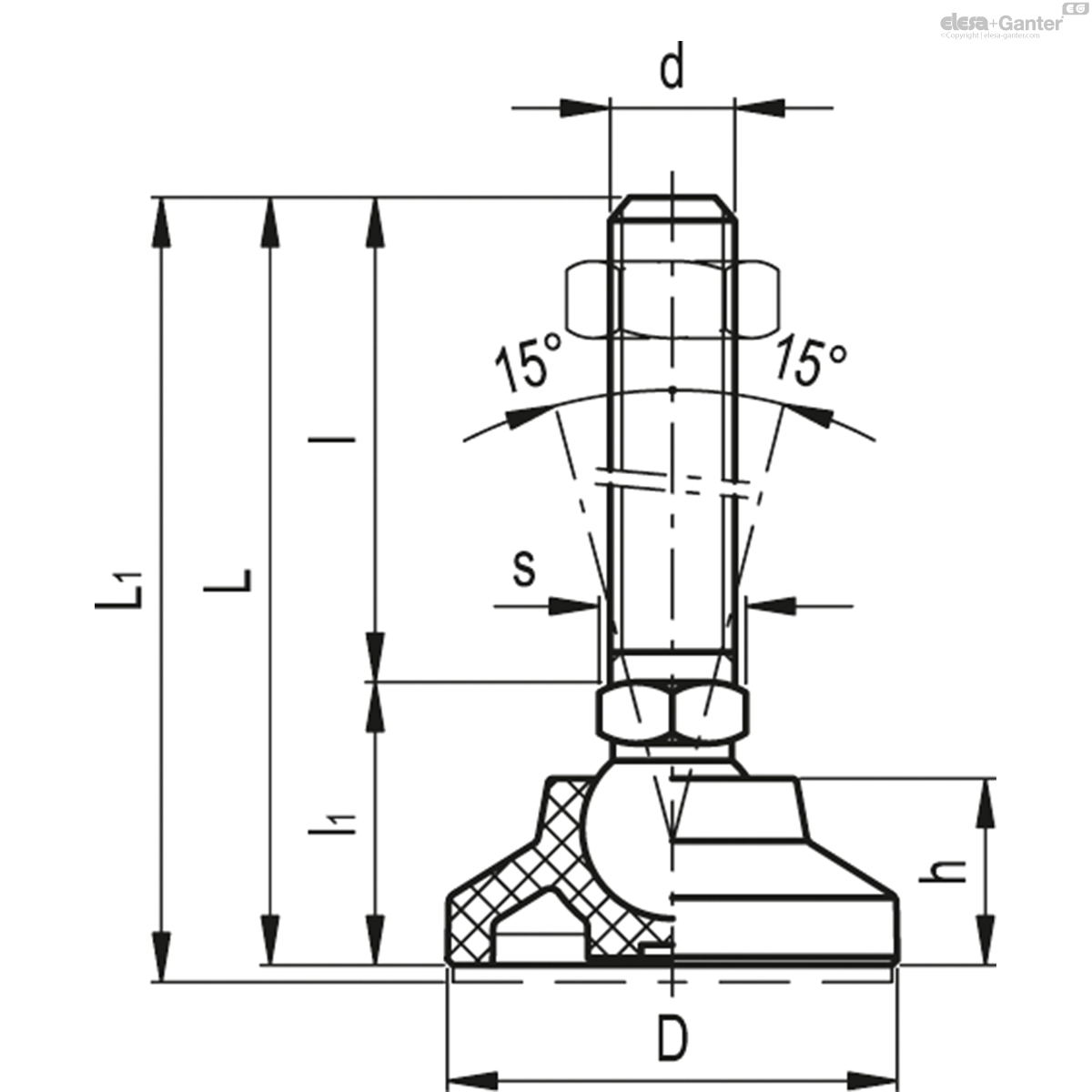

Caractéristiques techniques
- Code
- 373221
- D
- 40
- d
- M10
- L
- 68
- l
- 43
- l1
- 25
- h
- 17
- s
- 14
- Articulation Ø
Ø - 14
- [N]*
- 2000
- [N]**
- 10000
- 54
Base
High-resilience polypropylene based (PP) technopolymer, RAL 7024 grey colour, matte finish.
Articulated stem
Threaded AISI 304 stainless steel with regulation hexagon.
Standard executions
- LS.A-PP-SST: without no-slip disk.
- LS.A-PP-AS-SST: with EPDM rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.
Features and applications
Polypropylene levelling elements are particularly suitable for those sectors where they can be in contact with chemical agents and/or for frequent washing with acidic or basic detergent solutions, such as in the chemical, process, pharmaceutical, food, textile and paper industry.
The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disks).
Order information
The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.
To order bases and stems separately, see:
Accessories on request
AISI 304 stainless steel nut (see Nuts NT.).
