GLB-2-RC-80-375
GLB-2-RC Rouleaux cylindriques
En stock Toutes les tailles et variantes de GLB-2
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- 419172
- 690
Self-supporting structure
Acetal resin based (POM) technopolymer, black colour.
Pins
AISI 304 stainless steel.
Rollers
Polyethylene based (PE) technopolymer, grey colour.
Standard executions
- GLB-2-RS: with shaped rollers, spherical contact.
- GLB-2-RC: with cylindrical rollers.
- GLB-2-RT: with shaped rollers, cylindrical contact.
Features and applications

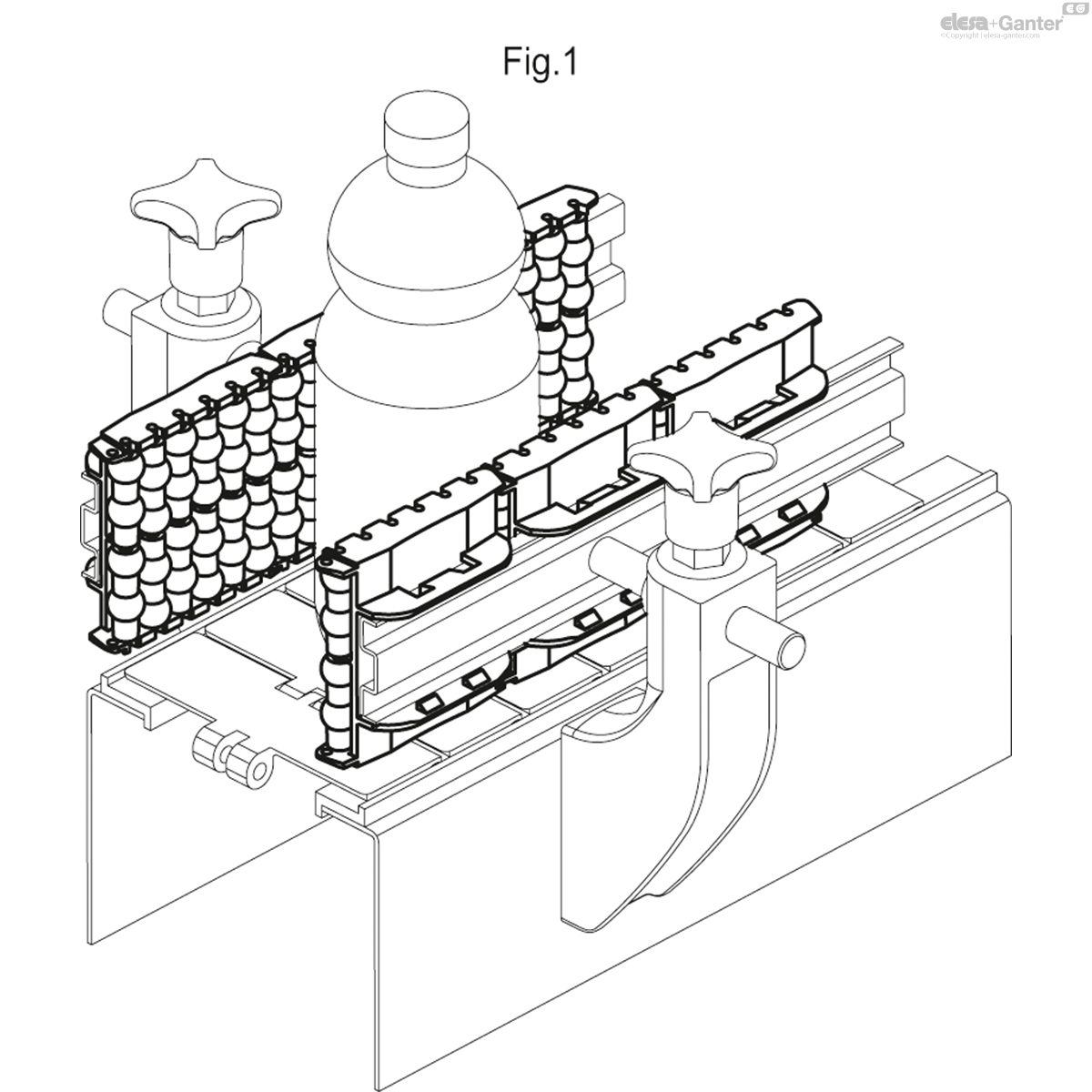

GLB-2 side guides are modular self-supporting structures for the side guide of products with important vertical dimensions on conveyor belts (Fig.1).
Particularly suitable for use in wet environments.
Depending on the product to transport, it is recommended to use:
- GLB-2-RS: for the guide of products in cans or in plastic containers;
- GLB-2-RC: for the guide of cardboard products, for a greater fluency;
- GLB-2-RT: for the guide of glass products, in case of accidental breakage they facilitate the expulsion of debris.

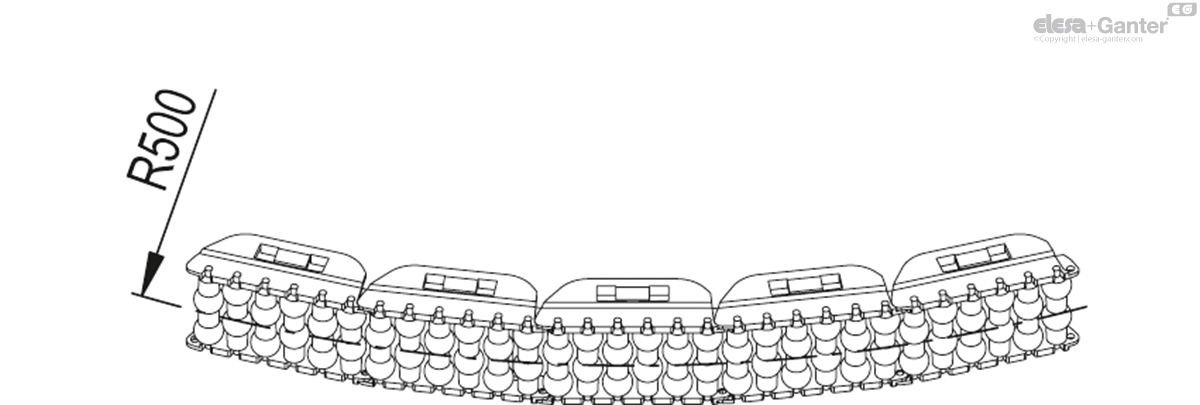

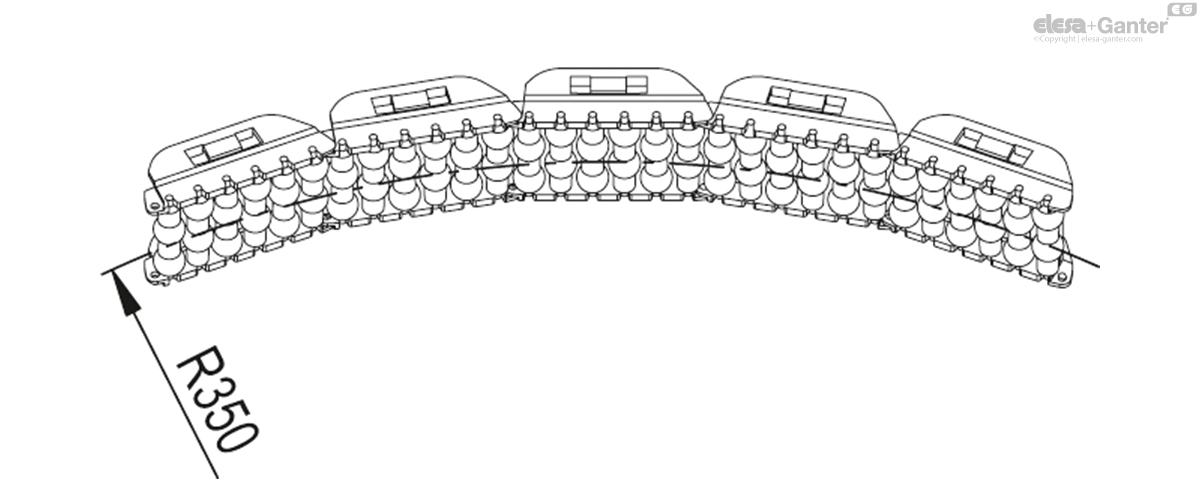

The joint in the roller side guides allows an external curvature radius 500 mm, internal curvature radius 350 mm.

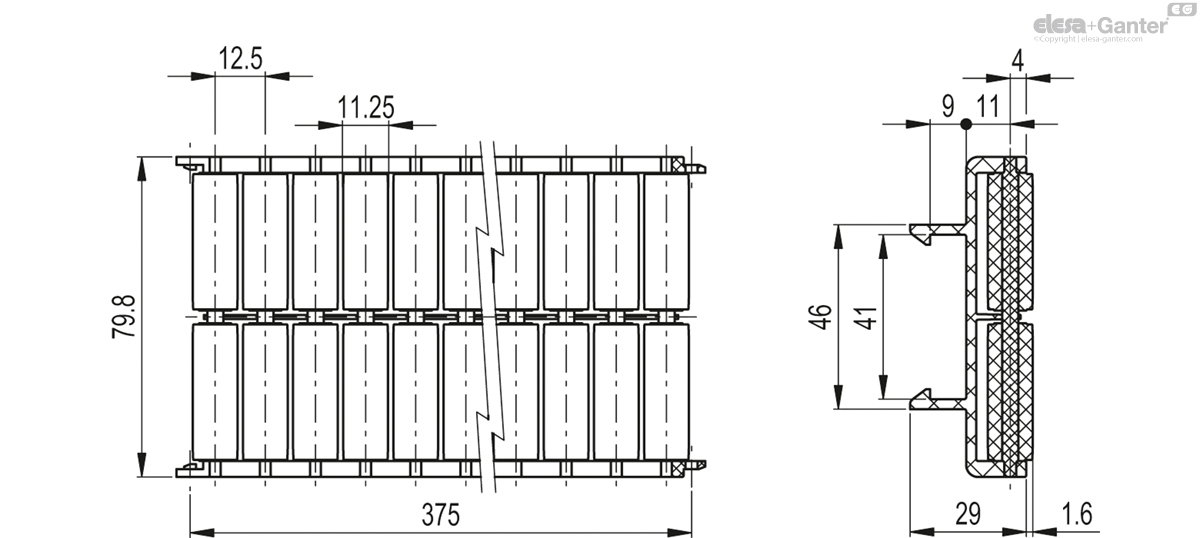

Supplied already assembled in modules of 375 mm length, for profiles 40x8 mm.
Special executions on request
- Side guides with self-supporting structure and rollers in different colours.
- Side guides with pins in acetal resin based (POM) technopolymer.
