GLB-2-RC-80-375
GLB-2-RC Cylindrical rollers
In stock All sizes and variants of GLB-2
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- 419172
- 690
Self-supporting structure
Acetal resin based (POM) technopolymer, black colour.
Pins
AISI 304 stainless steel.
Rollers
Polyethylene based (PE) technopolymer, grey colour.
Standard executions
- GLB-2-RS: with shaped rollers, spherical contact.
- GLB-2-RC: with cylindrical rollers.
- GLB-2-RT: with shaped rollers, cylindrical contact.
Features and applications

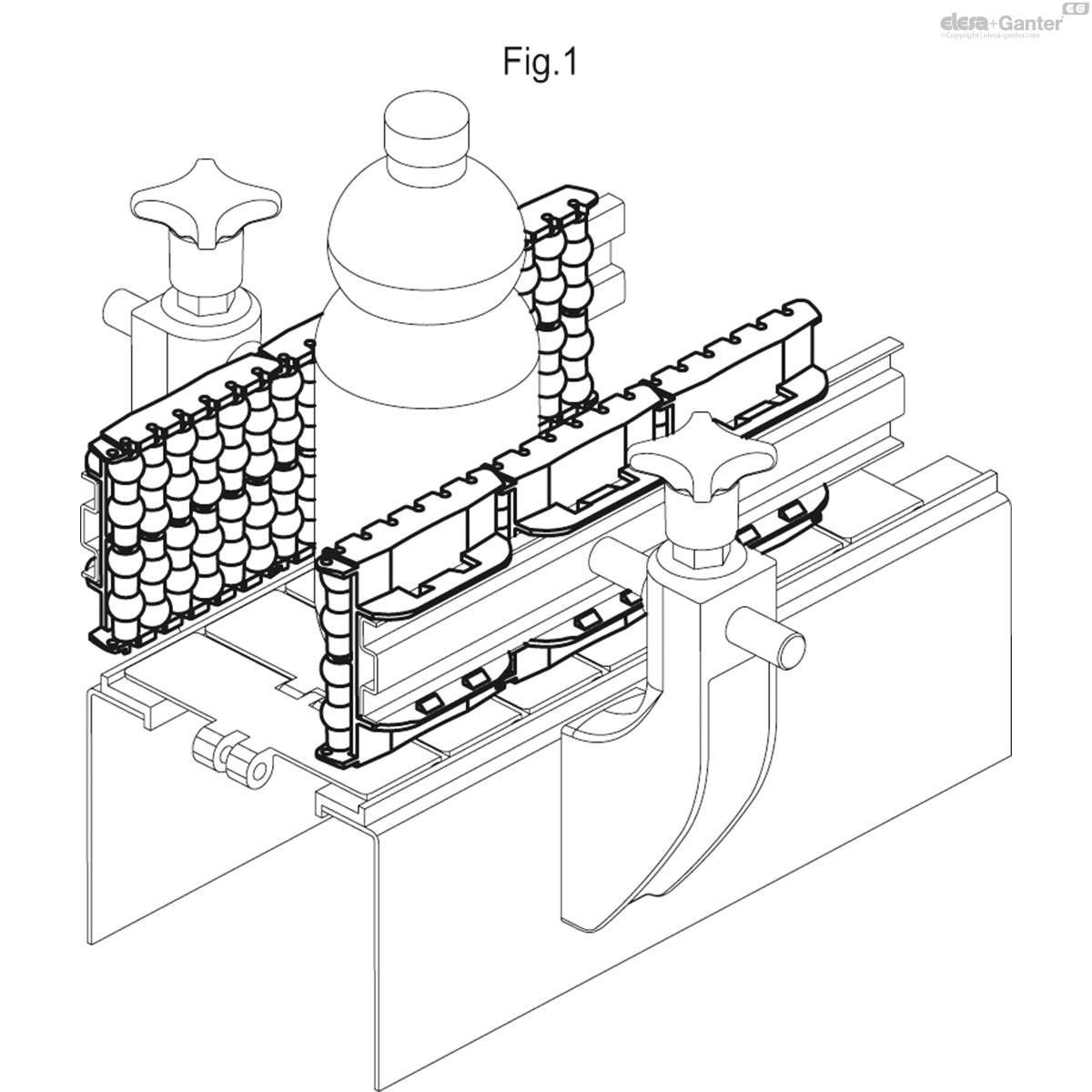

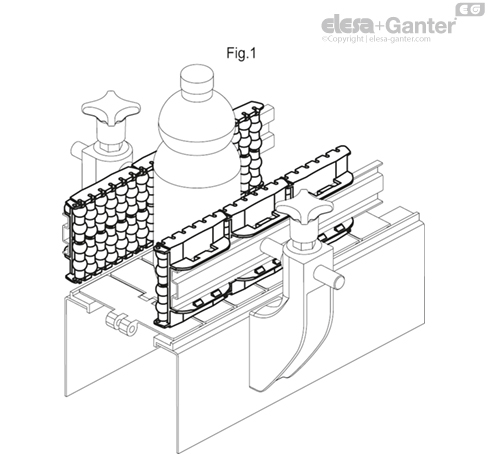

GLB-2 side guides are modular self-supporting structures for the side guide of products with important vertical dimensions on conveyor belts (Fig.1).
Particularly suitable for use in wet environments.
Depending on the product to transport, it is recommended to use:
- GLB-2-RS: for the guide of products in cans or in plastic containers;
- GLB-2-RC: for the guide of cardboard products, for a greater fluency;
- GLB-2-RT: for the guide of glass products, in case of accidental breakage they facilitate the expulsion of debris.

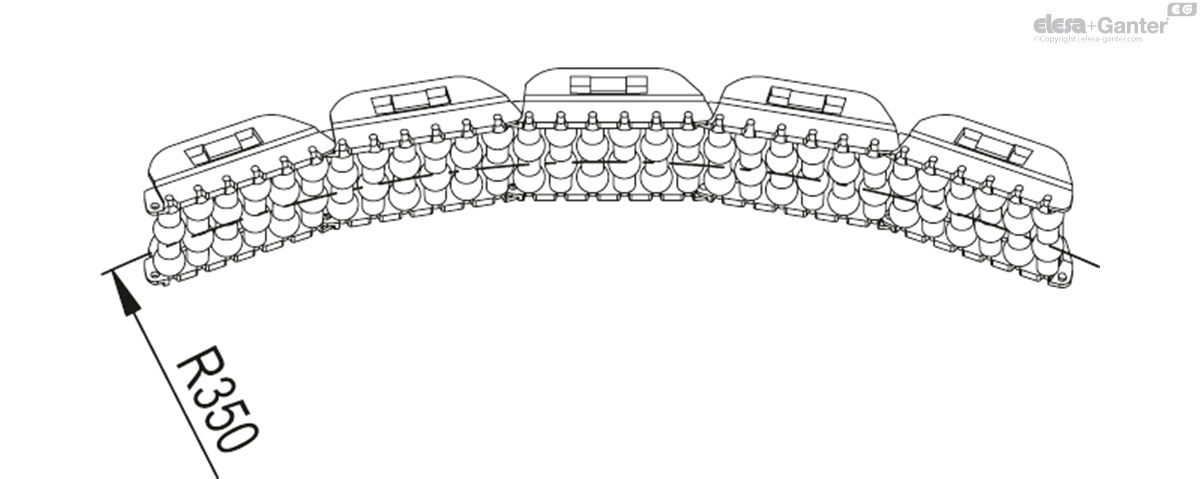

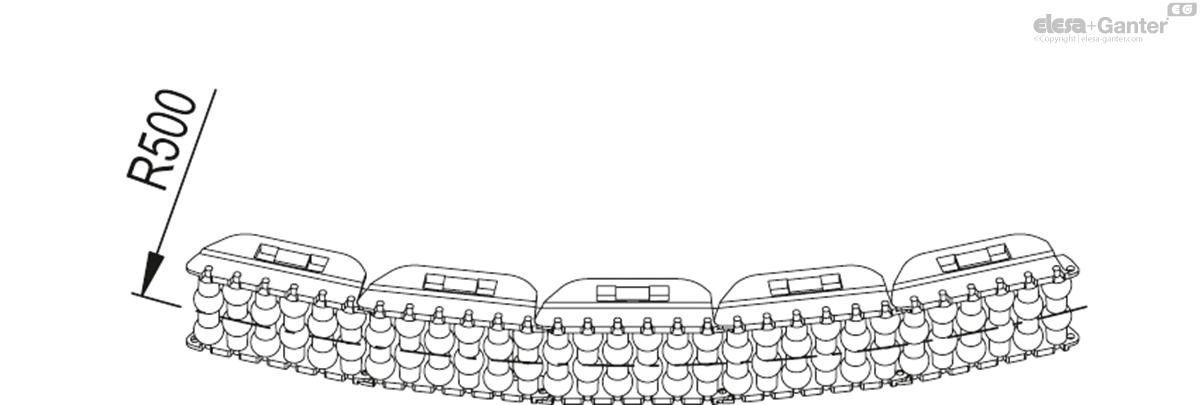

The joint in the roller side guides allows an external curvature radius 500 mm, internal curvature radius 350 mm.

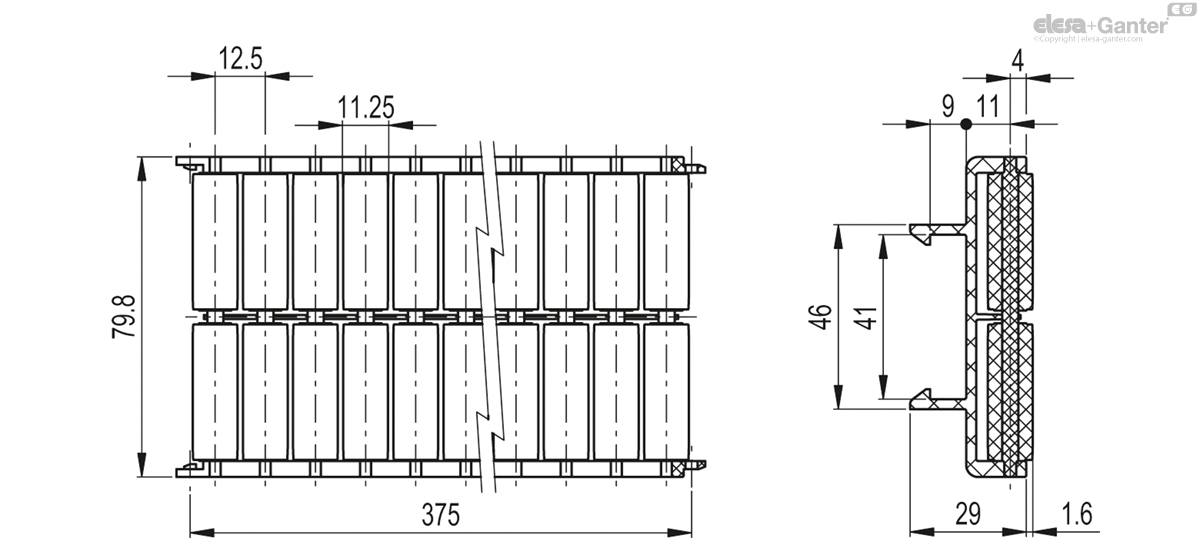

Supplied already assembled in modules of 375 mm length, for profiles 40x8 mm.
Special executions on request
- Side guides with self-supporting structure and rollers in different colours.
- Side guides with pins in acetal resin based (POM) technopolymer.
