7072.30-42-B18
GN 7072.30 Rondelles d'amortissement
Délai: 1-2 semaines Toutes les tailles et variantes de GN 7072.30
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte

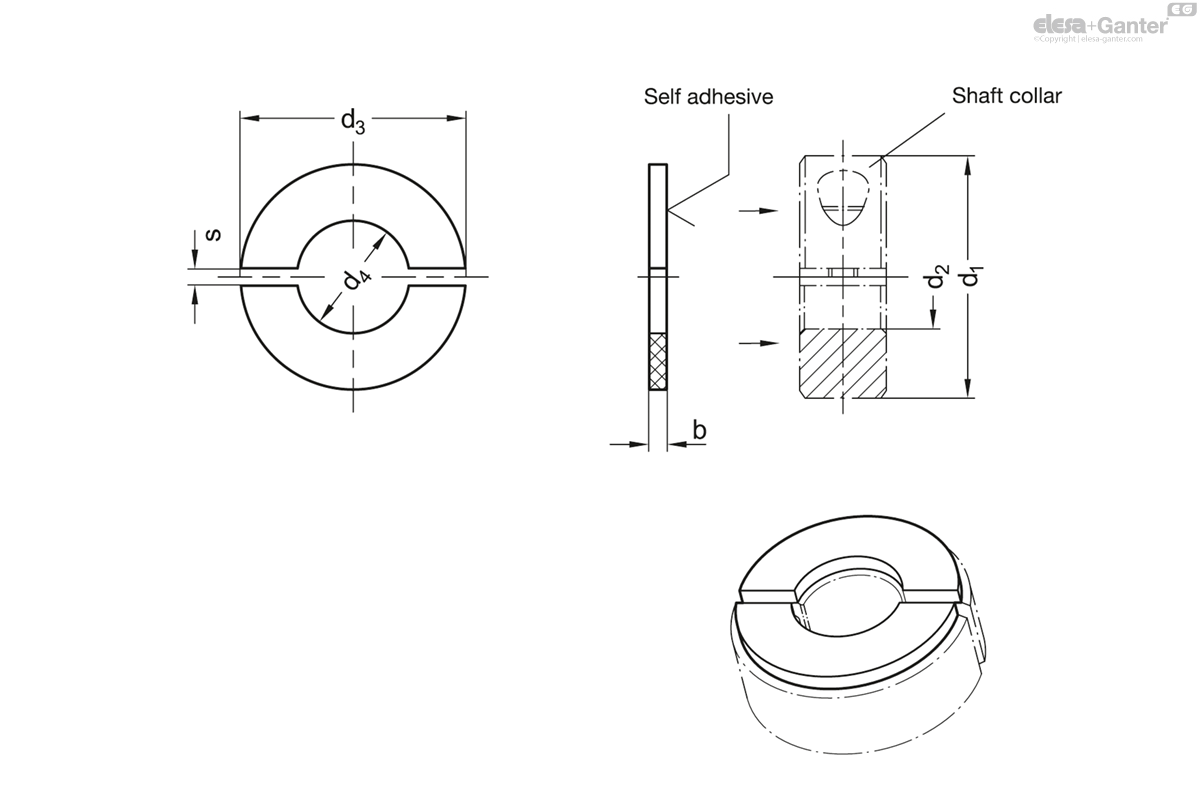

Fiche technique
Caractéristiques techniques
- Code
- GN 7072.30-42-B18
- d1
- 42
- d2
- B 18
- d3
- 39
- d4
- 19.5
- b ±0.2
- 3
- s
- 3
- 4
Elastomer (PUR)
- 70 Shore A
- temperature resistant up to 80 °C
- transparent
Adhesive film
- acrylate dispersion, solvent-free
- strong adhesion
Damping washers GN 7072.30 are designed as accessories for split and semi-split set collars and are attached with the help of an adhesive film, preferably on the groove-less side of the set collar. They absorb mild shocks and have a sound-dampening effect when the set collars come into contact with other components.
Generally, after the protective film is removed, the damping washers can be attached to any suitable and clean surface.
Split Stainless Steel-Set collars GN 7072.3 are generally offered with assembled damping washers.
