7072.30-42-B18 GN 7072.30 Damping washers

7072.30-42-B18

GN 7072.30 Damping washers

for split set collars
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 7072.30

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 7072.30-42-B18
d1
42
d2
B 18
d3
39
d4
19.5
b ±0.2
3
s
3
4

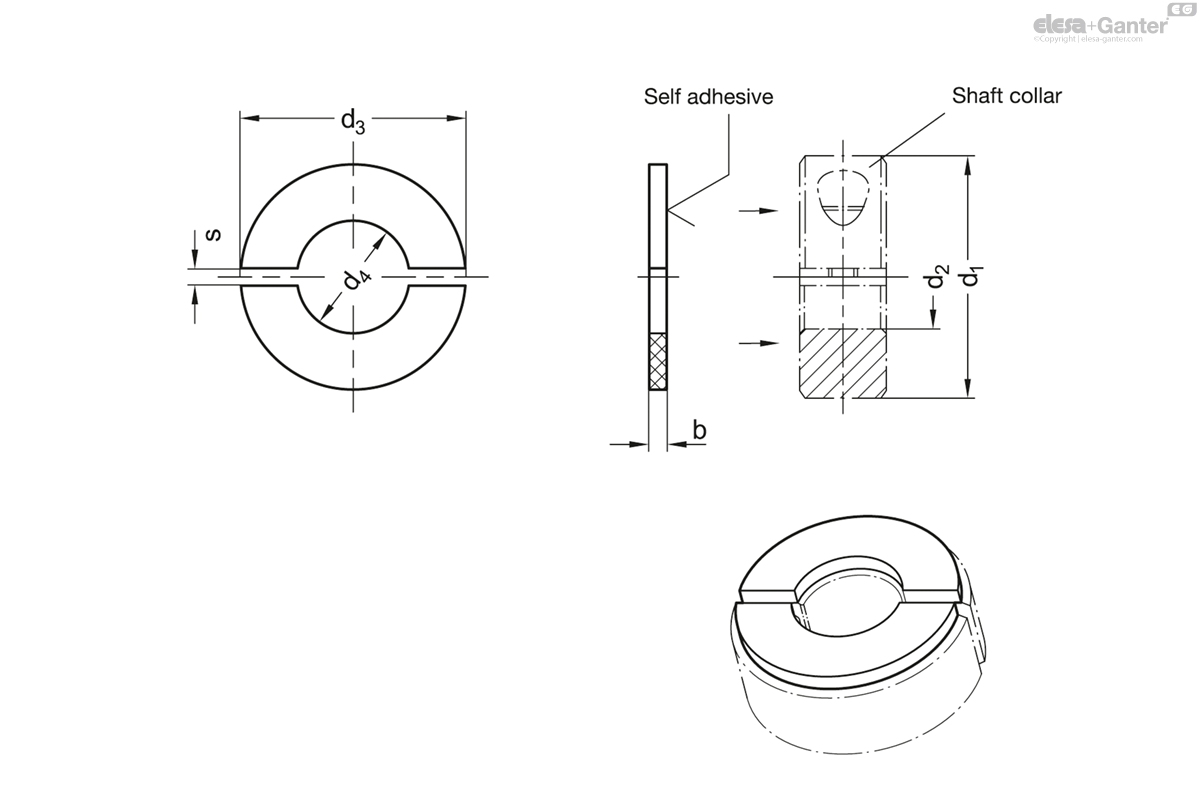

7072.30-42-B18 drawing

Elastomer (PUR)

  • 70 Shore A
  • temperature resistant up to 80 °C
  • transparent

Adhesive film

  • acrylate dispersion, solvent-free
  • strong adhesion

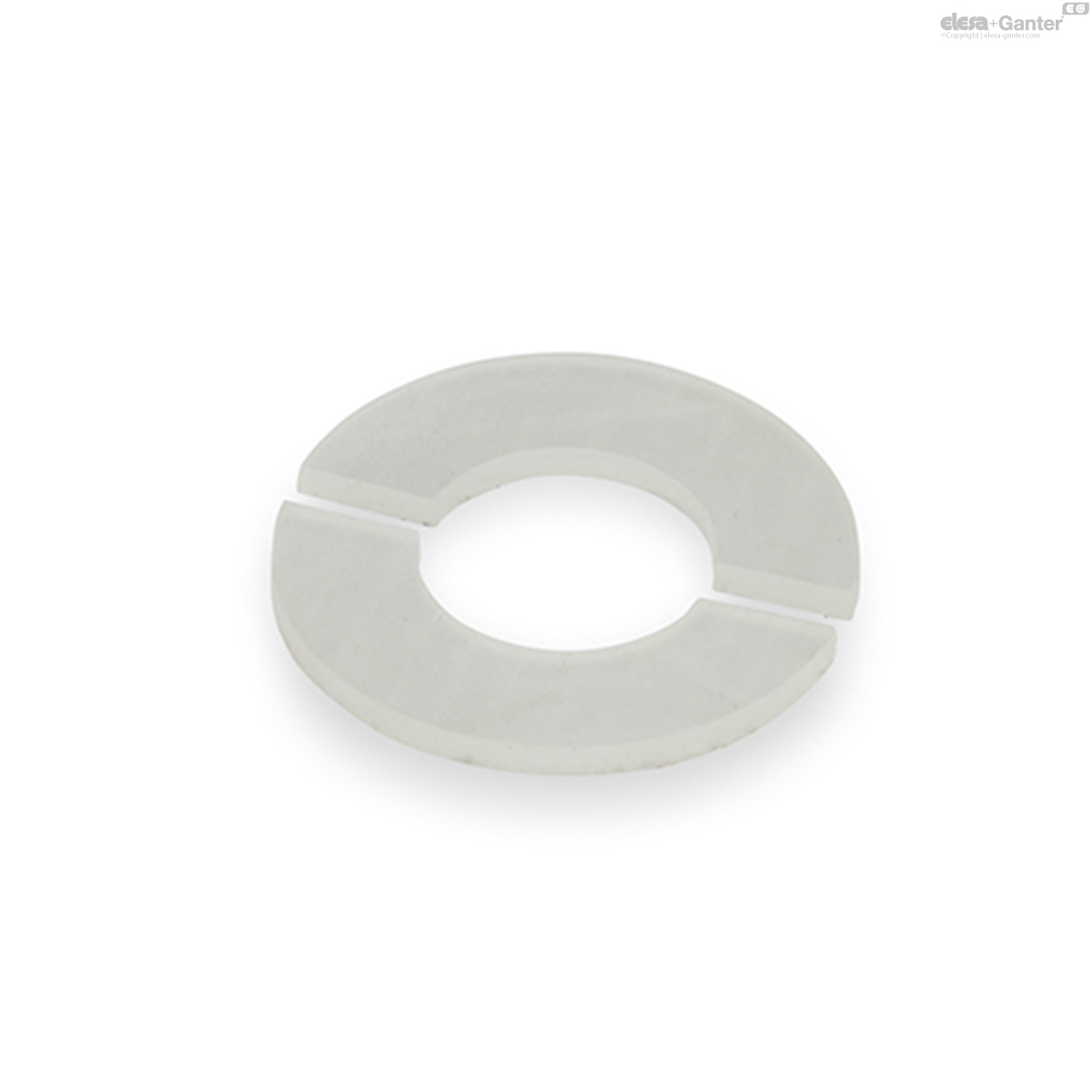

Damping washers GN 7072.30 are designed as accessories for split and semi-split set collars and are attached with the help of an adhesive film, preferably on the groove-less side of the set collar. They absorb mild shocks and have a sound-dampening effect when the set collars come into contact with other components.

Generally, after the protective film is removed, the damping washers can be attached to any suitable and clean surface.

Split Stainless Steel-Set collars GN 7072.3  are generally offered with assembled damping washers.
