7405-NI-G1/2-B-100 GN 7405 Raccords de tamis

7405-NI-G1/2-B-100

GN 7405 Raccords de tamis

100°C
  • Icons/__logo__INOX__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 7405

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 7405-NI-G1/2-B-100
d
G1/2
Mesh size
100
e
45
l1
40
l2
13
l3
23
l4
14
l5
49
s1
41
s2
26
Differential pressure ∆ 1 bar
Flow volume in l/min.
Water
100 µm
48
Differential pressure ∆ 1 bar
Flow volume in l/min.
Water
500 µm
61
Hydraulic oil (HPL 46)
100 µm
15.5
Hydraulic oil (HPL 46)
500 µm
38.5
188

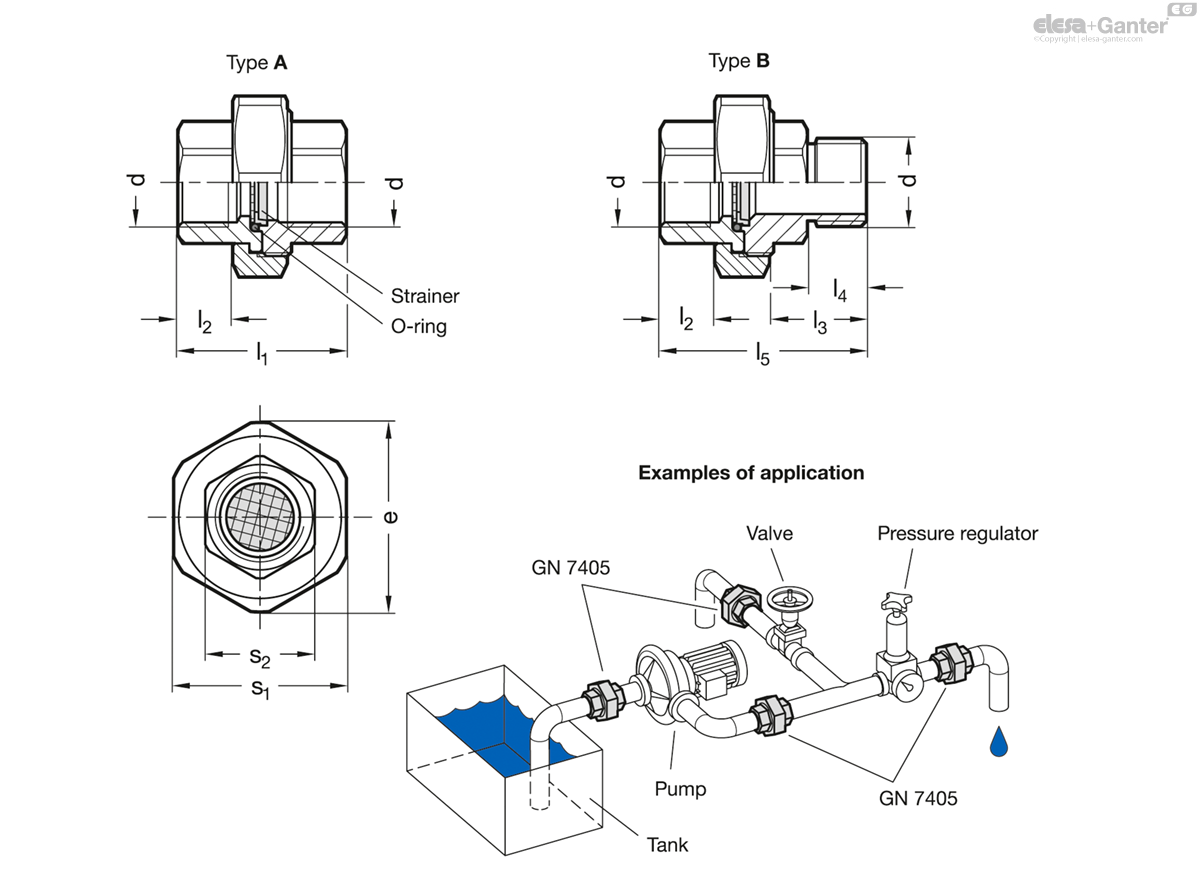

7405-NI-G1/2-B-100 drawing

Types

  • Type A: Fitting with female thread on both ends
  • Type B: Fitting with female / male thread

Housing

Stainless Steel AISI 304 NI

Strainer

Stainless Steel mesh

AISI 304

Strainer bezel

Plastic (Polyamide PA)

  • glass fibre reinforced
  • temperature resistant up to 100 °C

O-ring

Rubber NBR (Perbunan)

GN 7405 Stainless Steel-Strainer fittings are suited for assembly into piping systems as upstream or downstream protection devices. Depending on the mesh size, particles carried by liquid or gaseous media can be prevented from passing through. Units or housing interiors are thereby protected from foreign objects which can impair function or durability due to their size.

The housing is separately bolted through a union nut, making assembly/disassembly easier and allowing the strainer insert to be exchanged if necessary.

Replacement or maintenance Stainless Steel-Strainers are available under the GN 7403.1 standard.
