7403.1-NI-24-100
GN 7403.1 Tamis
Délai: 1-2 semaines Toutes les tailles et variantes de GN 7403.1
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 7403.1-NI-24-100
Nominal size- 24
- Mesh size
- 100
- b
- 4
- d1
- 26.6
- d2
- 25.7
- d3
- 20
- d4 +0.1
- 26.6
- d5 ±0.05
- 28.7
- s1 +0.1
- 4
- s2 -0.1
- 2
- Suitable
O-ring - 26x2
- Suitable for
nominal size
d1 of GN 7405 - G3/4
- 1
Strainer
Stainless Steel mesh NI
AISI 304
Strainer bezel
Plastic (Polyamide PA)
- glass fibre reinforced
- temperature resistant up to 100 °C

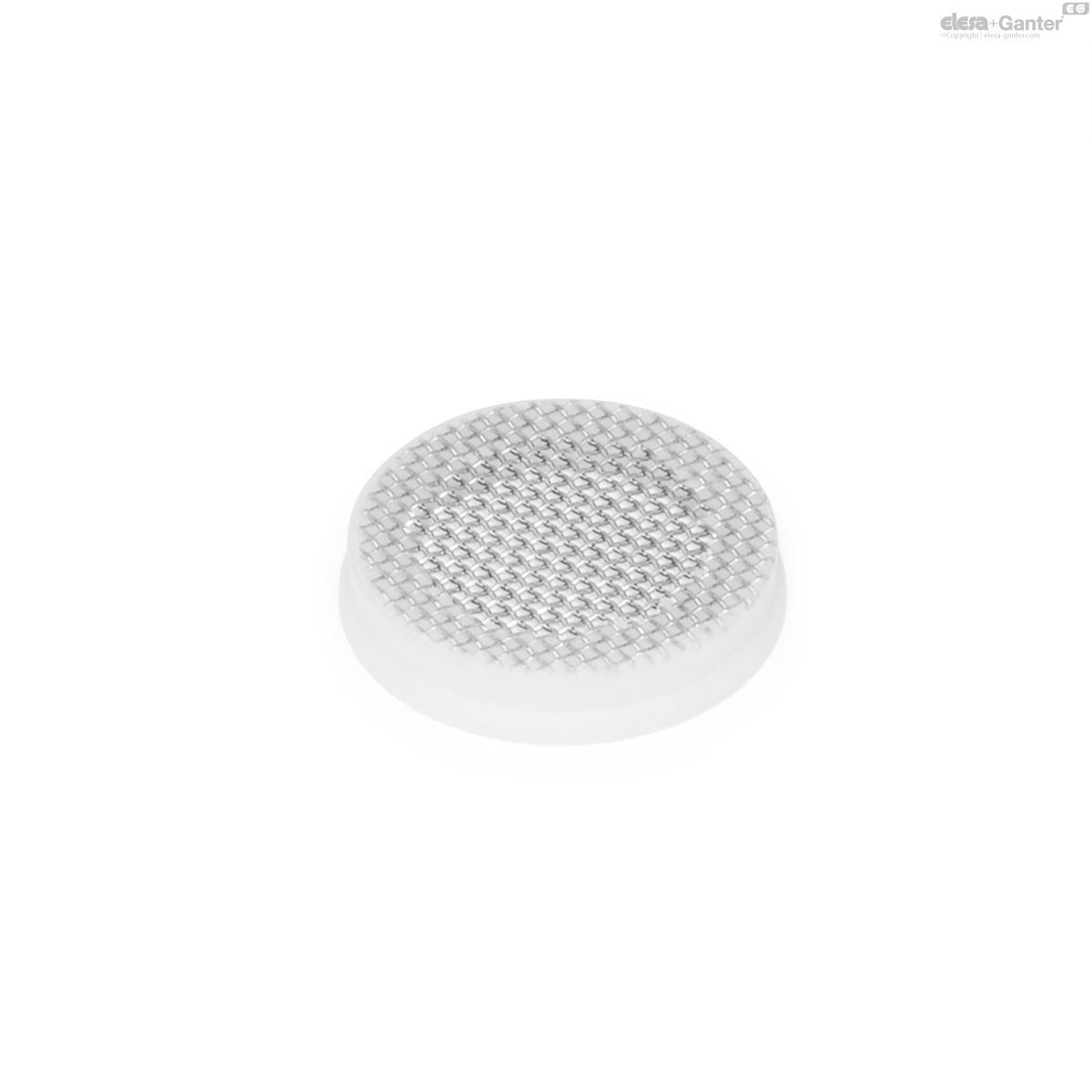

GN 7403.1 Stainless-Steel-Strainers are adapted for use as replacements for GN 7405-
Depending on the mesh size, particles carried by liquid or gaseous media can be prevented from passing through. Units or housing interiors are thereby protected from foreign objects which can impair function or durability due to their size.

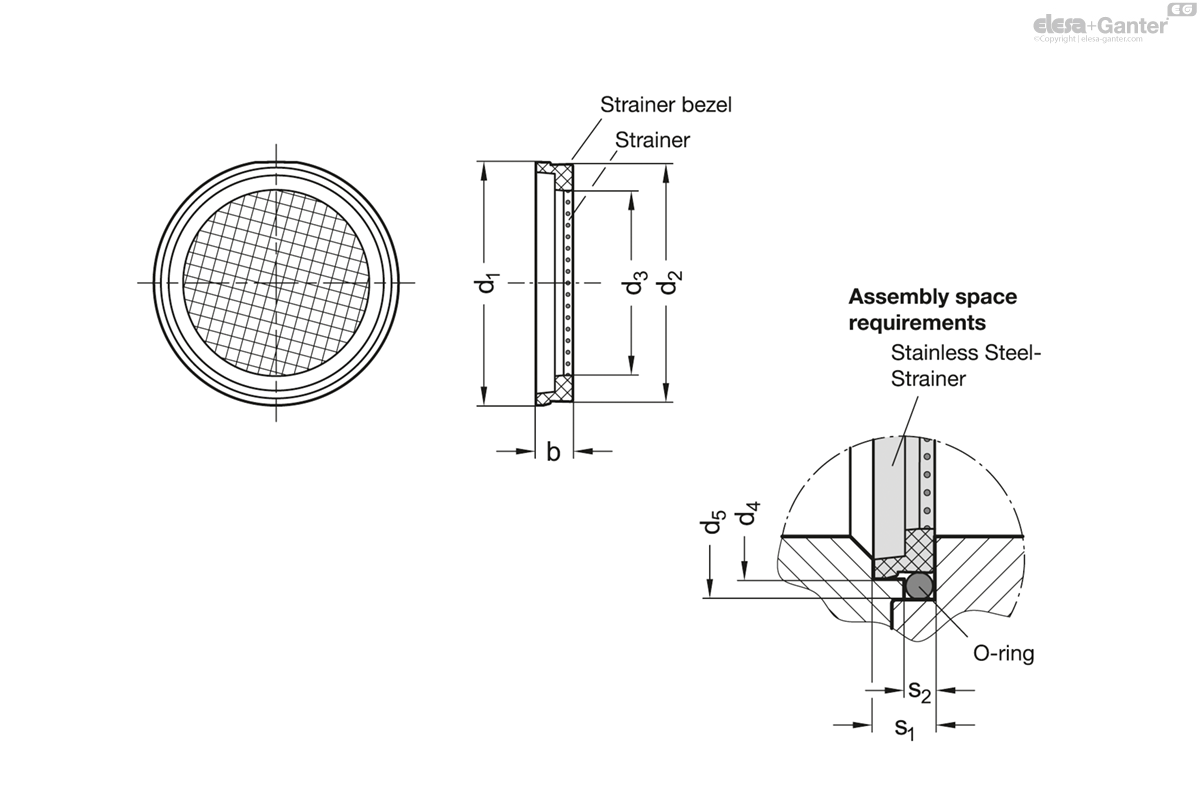

The assembly space required is shown in the drawing. An additional O-ring is generally mounted at the circumference as a seal.
- other mesh sizes
- Plastic strainer mesh
