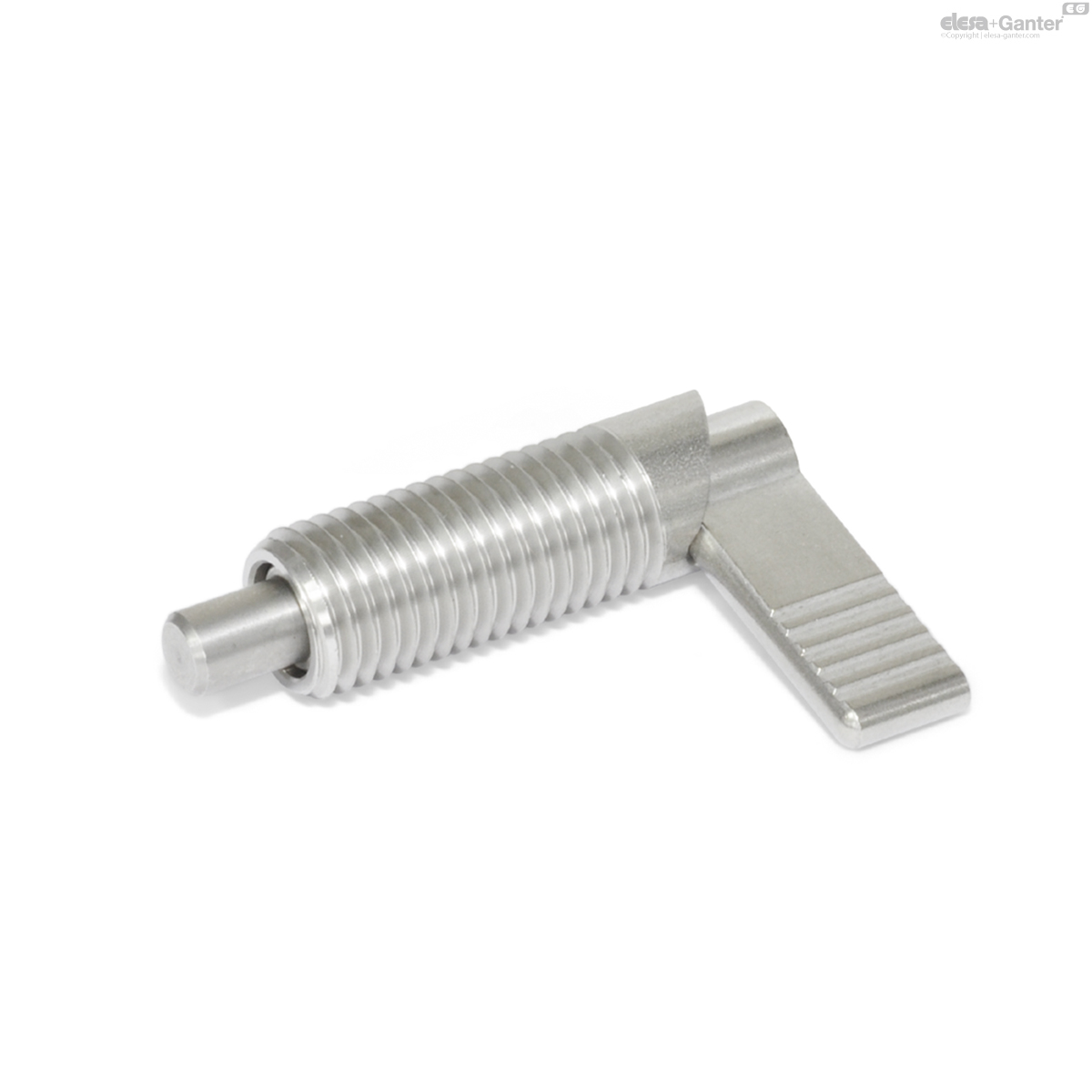

721.5-10-M20X1,5-LA
GN 721.5-LA Verrouillage à gauche
Inox , avec butée 180°, sans fonction de verrouillage
Délai: 1-2 semaines Toutes les tailles et variantes de GN 721.5
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 721.5-10-M20x1,5-LA
- d1 Pin -0.05/-0.08
Bore
H7 - 10
- d2
- M 20 x 1.5
- d3
- 20
- l1
- 69
- l2
- 12
- l3 +1.5
- 37
- l4
- 37
- l5
- 52
- Spring load
in N ≈
initial - 21
- Spring load
in N ≈
end - 57
- 129
Types
Types
- Type RA: Right-hand lock
- Type RB: Right-hand lock, with plastic cap
- Type RAK: Right-hand lock, with lock nut
- Type RBK: Right-hand lock, with plastic cap, with lock nut
- Type LA: Left-hand lock
- Type LB: Left-hand lock, with plastic cap
- Type LAK: Left-hand lock, with lock nut
- Type LBK: Left-hand lock, with plastic cap, with lock nut
Guide / Plunger pin / Latch arm
Guide / Plunger pin / Latch arm
Stainless steel AISI 303
Cap for type RB / RBK / LB / LBK
Cap for type RB / RBK / LB / LBK
Plastic, Polyamide (PA)
Black, matte finish
Pressure spring
Pressure spring
Stainless steel AISI 301
Lock nut ISO 8675
Lock nut ISO 8675
Stainless steel
For cam action indexing plungers GN 721.5 the indexing plunger pin is withdrawn by turning the lock by 180°.
For opposing cam action indexing plungers the left or right-handed types allow practical use, that is the same setting of the lock.
GN 909.5 Thin Hex Nuts
