721.5-10-M20X1,5-LA GN 721.5-LA Left-hand lock

721.5-10-M20X1,5-LA

GN 721.5-LA Left-hand lock

Stainless Steel, without Locking Function, with 180° Limit Stop
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 721.5

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 721.5-10-M20x1,5-LA
d1 Pin -0.05/-0.08
Bore
H7
10
d2
M 20 x 1.5
d3
20
l1
69
l2
12
l3 +1.5
37
l4
37
l5
52
Spring load
in N ≈
initial
21
Spring load
in N ≈
end
57
129

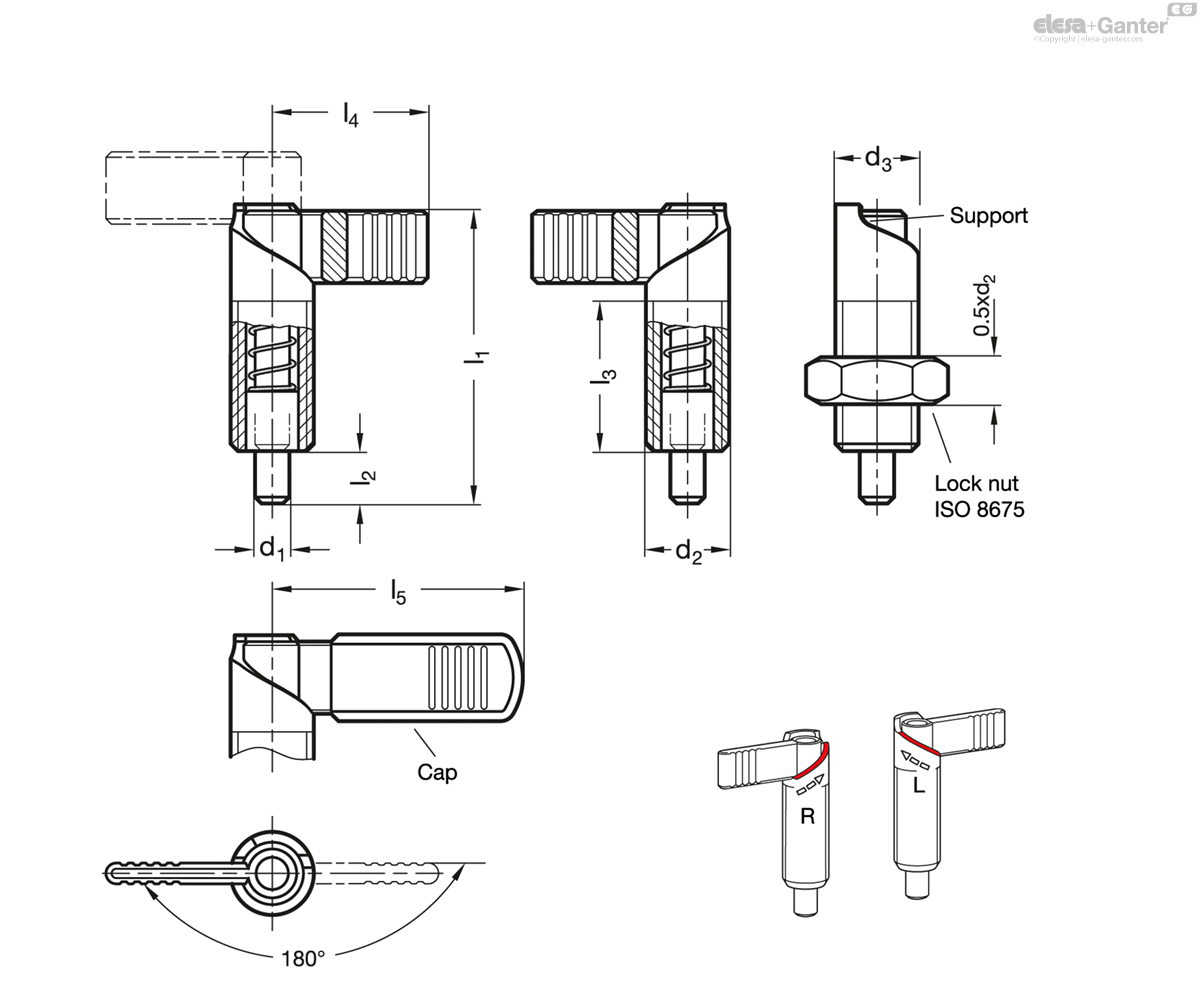

721.5-10-M20X1,5-LA drawing

Types

  • Type RA: Right-hand lock
  • Type RB: Right-hand lock, with plastic cap
  • Type RAK: Right-hand lock, with lock nut
  • Type RBK: Right-hand lock, with plastic cap, with lock nut
  • Type LA: Left-hand lock
  • Type LB: Left-hand lock, with plastic cap
  • Type LAK: Left-hand lock, with lock nut
  • Type LBK: Left-hand lock, with plastic cap, with lock nut

Guide / Plunger pin / Latch arm

Stainless steel AISI 303

Cap for type RB / RBK / LB / LBK

Plastic, Polyamide (PA)

Black, matte finish

Pressure spring

Stainless steel AISI 301

Lock nut ISO 8675

Stainless steel

For cam action indexing plungers GN 721.5 the indexing plunger pin is withdrawn by turning the lock by 180°.

For opposing cam action indexing plungers the left or right-handed types allow practical use, that is the same setting of the lock.

GN 909.5 Thin Hex Nuts
