313-10-DK-1-ST GN 313 Boulons à ressort , Acier

313-10-DK-1-ST

GN 313 Boulons à ressort , Acier

Acier / Acier inoxydable, Goupille rétractée en position normale
  • INOX
  • RoHS

Délai: 1-2 semaines Toutes les tailles et variantes de GN 313

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 313-10-DK-1-ST
d1 Pin -0.02/-0.05 Bore H7
10
d2
M 20 x 1.5
d4
28
l1
11
l2
43
l3 ≈
78
l4 ≈
57
Spring load in N ≈
initial
22
Spring load in N ≈
end
50
Code no.
Screw driver
GN 613.1-10
95

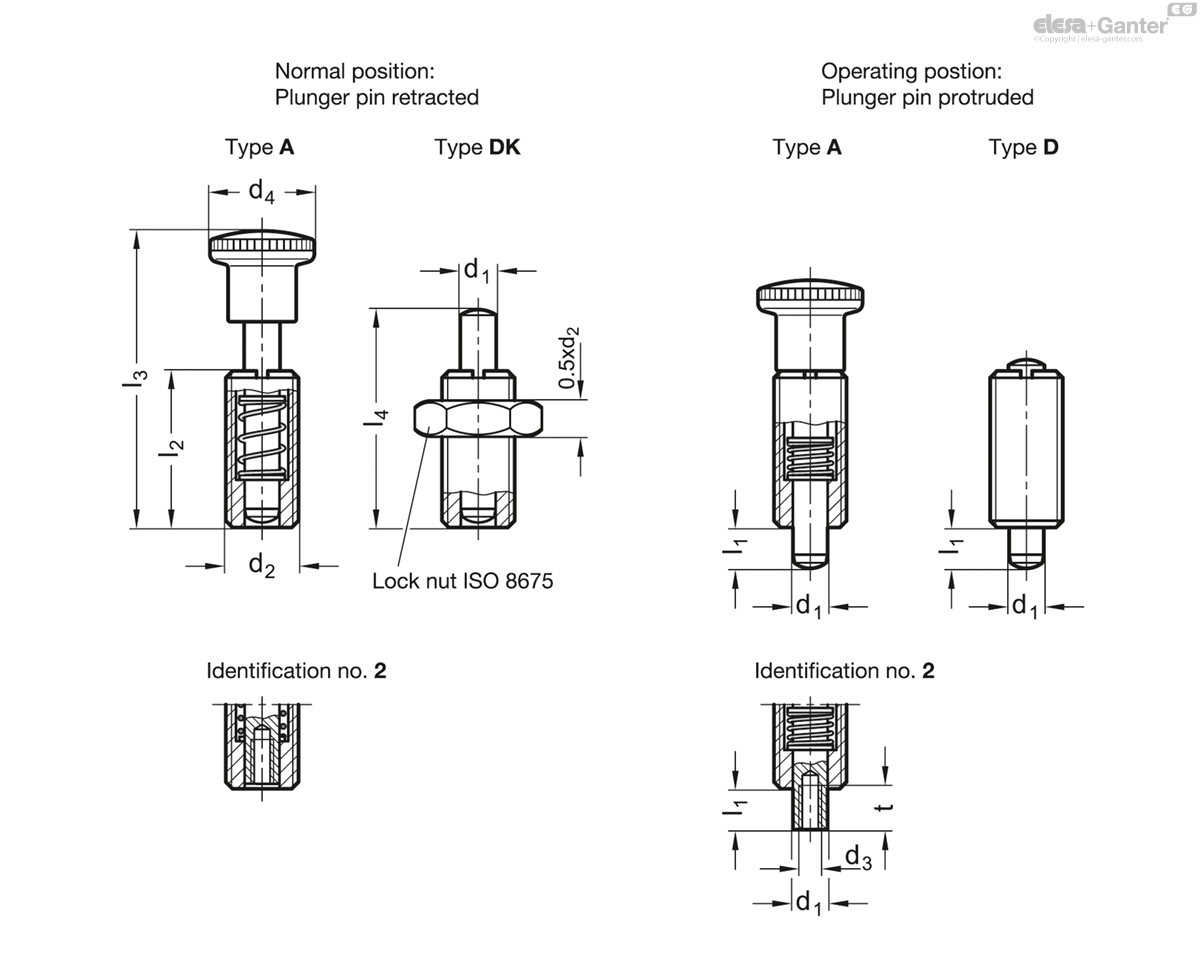

313-10-DK-1-ST drawing

Types

  • Type A: with knob, without lock nut
  • Type AK: with knob, with lock nut
  • Type D: without knob, without lock nut
  • Type DK: without knob, with lock nut

Identification no.

  • Version 1: Plunger without internal thread
  • Version 2: Plunger with internal thread

Guide (Threaded socket)

Steel ST

blackened

Guide (Threaded socket)

Stainless Steel AISI 303 NI

Pin

Stainless Steel

  • AISI 303
  • chemically nickel plated

Knob

Plastic (Polyamide PA)

  • black, matt
  • not removable

The pin of the spring bolts GN 313 does not protrude in the inoperative position.

It can be operated manually or in Type D and DK mechanically (pneumatic cylinder, cam plate, etc.) when it will protrude only as long as it is operated.

Using the internal thread at identification 2 on the pressure side, special pressure bolts or a rod arrangement can be operated, for instance.
