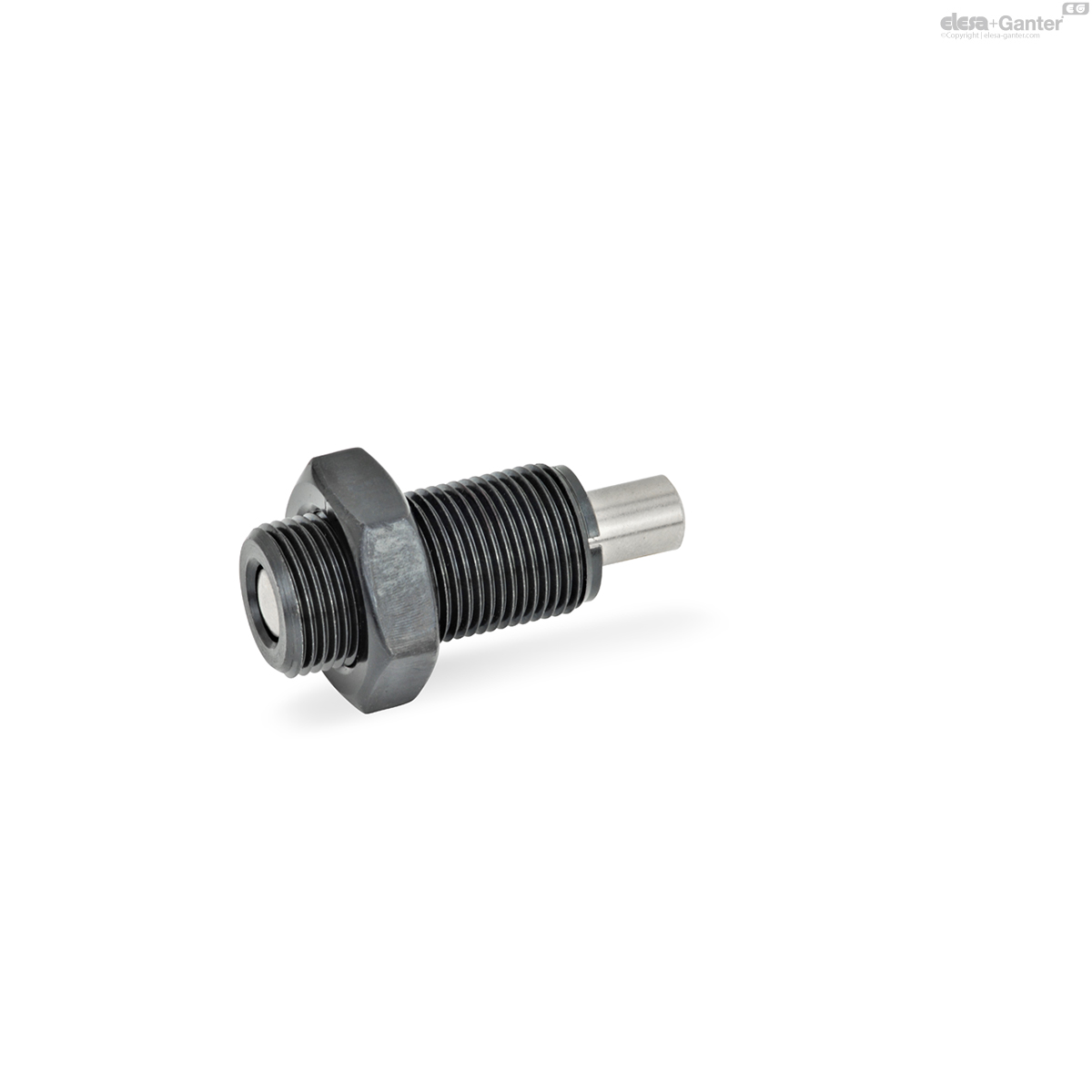

GN 313 Spring bolts, Steel
Steel / Stainless Steel, Pin retracted in normal position
Eta: 1-2 weeks All sizes and variants of GN 313
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 313-10-DK-1-ST
- d1 Pin -0.02/-0.05 Bore H7
- 10
- d2
- M 20 x 1.5
- d4
- 28
- l1
- 11
- l2
- 43
- l3 ≈
- 78
- l4 ≈
- 57
- Spring load in N ≈
initial - 22
- Spring load in N ≈
end - 50
- Code no.
Screw driver - GN 613.1-10
- 95
Types
- Type A: with knob, without lock nut
- Type AK: with knob, with lock nut
- Type D: without knob, without lock nut
- Type DK: without knob, with lock nut
Identification no.
- Version 1: Plunger without internal thread
- Version 2: Plunger with internal thread
Guide (Threaded socket)
Steel ST
blackened
Guide (Threaded socket)
Stainless Steel AISI 303 NI
Pin
Stainless Steel
- AISI 303
- chemically nickel plated
Knob
Plastic (Polyamide PA)
- black, matt
- not removable

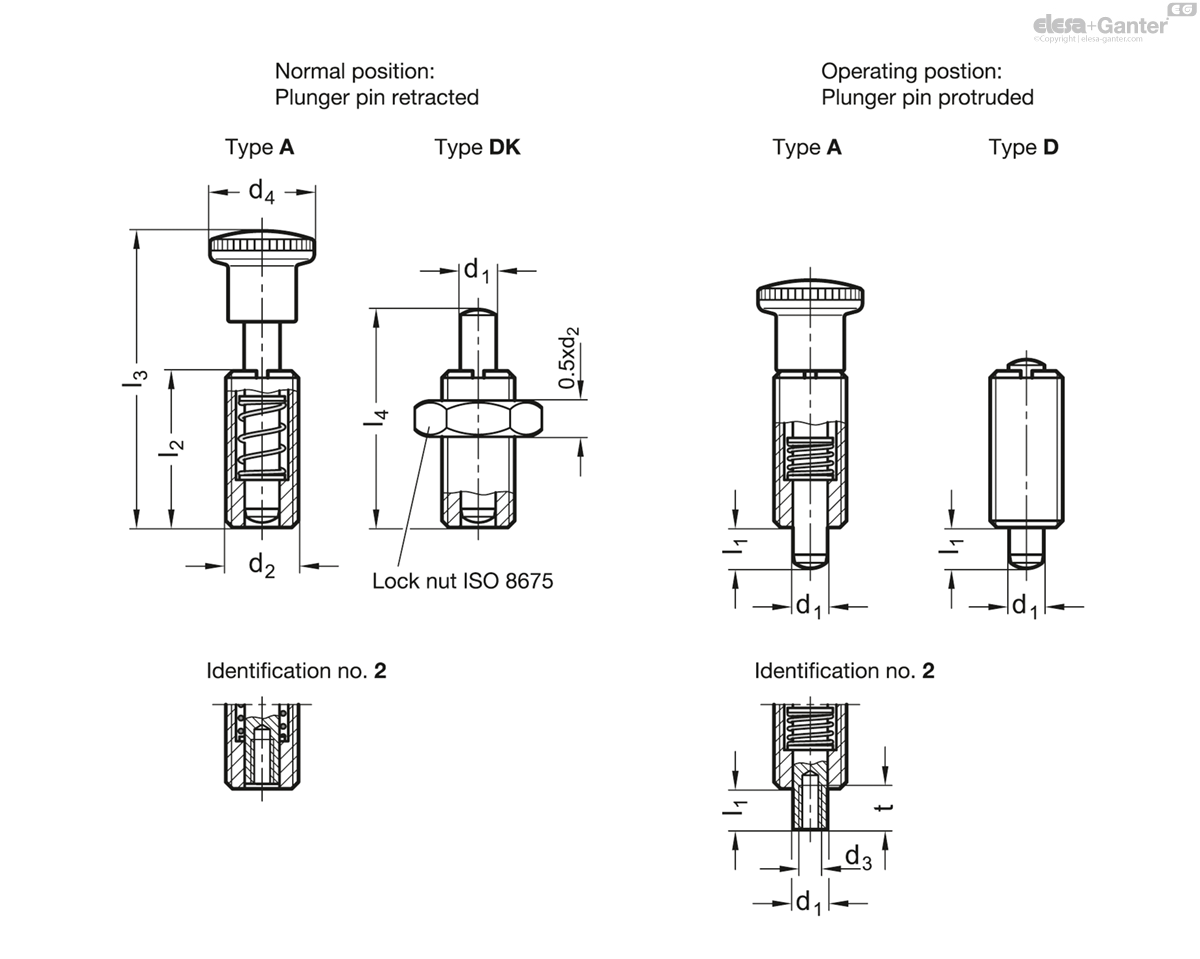

The pin of the spring bolts GN 313 does not protrude in the inoperative position.
It can be operated manually or in Type D and DK mechanically (pneumatic cylinder, cam plate, etc.) when it will protrude only as long as it is operated.
Using the internal thread at identification 2 on the pressure side, special pressure bolts or a rod arrangement can be operated, for instance.
