706.3-48-M24X1,5-ST
GN 706.3-ST Acier
Délai: 1-2 semaines Toutes les tailles et variantes de GN 706.3
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte

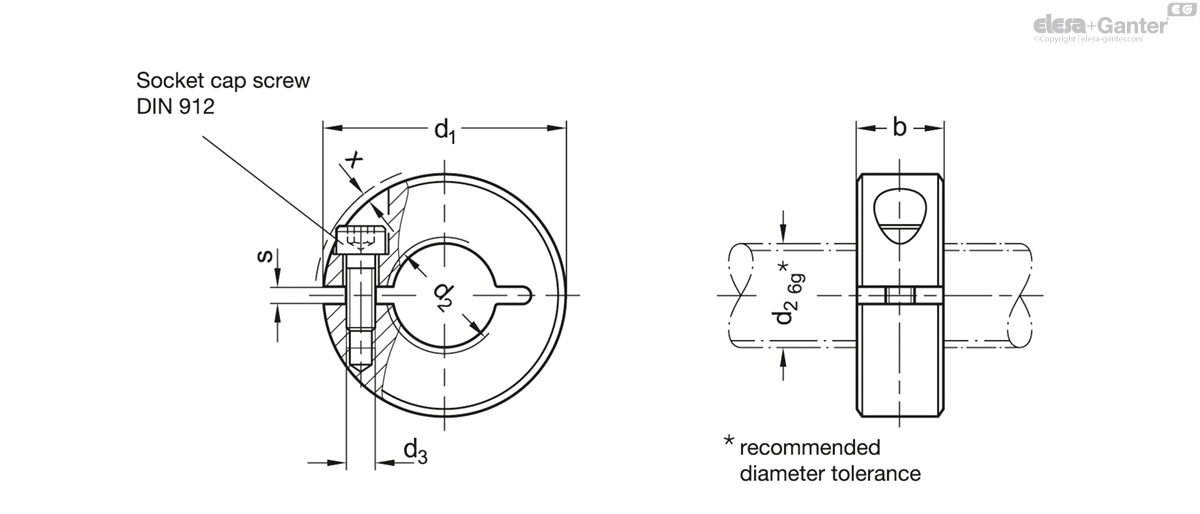

Fiche technique
Caractéristiques techniques
- Code
- GN 706.3-48-M24x1,5-ST
- d1
- 48
- d2 6H
- M 24 x 1.5
- b ±0.2
- 15
- d3
- M 5
- s
- 3
- x ≈ Max. protrusion
of cap screw - 0
- Adjustable hand lever for d3
- GN 311-45-M5-16-SW
- 135
Version in Steel
Steel ST
Sintered
Black oxidized with vapor
Socket cap screw DIN 912
Steel, plain
Version in Stainless Steel
Stainless steel AISI 316LHC NI
Socket cap screw DIN 912
Stainless steel AISI 304
Threaded shaft collars GN 706.3 correspond in outer dimensions to the semi-split shaft collars GN 706.2.
The bore has, however, an internal thread so that the clamping ring can be screwed in like a nut, for instance, to a spindle thread in order to limit the adjustment range or the screw-in depth.
The clamping is then done by reducing the slot height without damaging the thread.
The thread d3 for sizes d1 = 20 to 32 is designed as a through hole, from size d1 = 42 and larger, it is designed as blind hole.
