DIN 6321 Boulons de serrage / Chevilles à tête

  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de DIN 6321

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
DIN 6321-8-16-C
d1 F7
8
d1 g6
8
h1 ±0.1
16
d2 n6
6
h2
6
l
9
s ≈
1.6
5

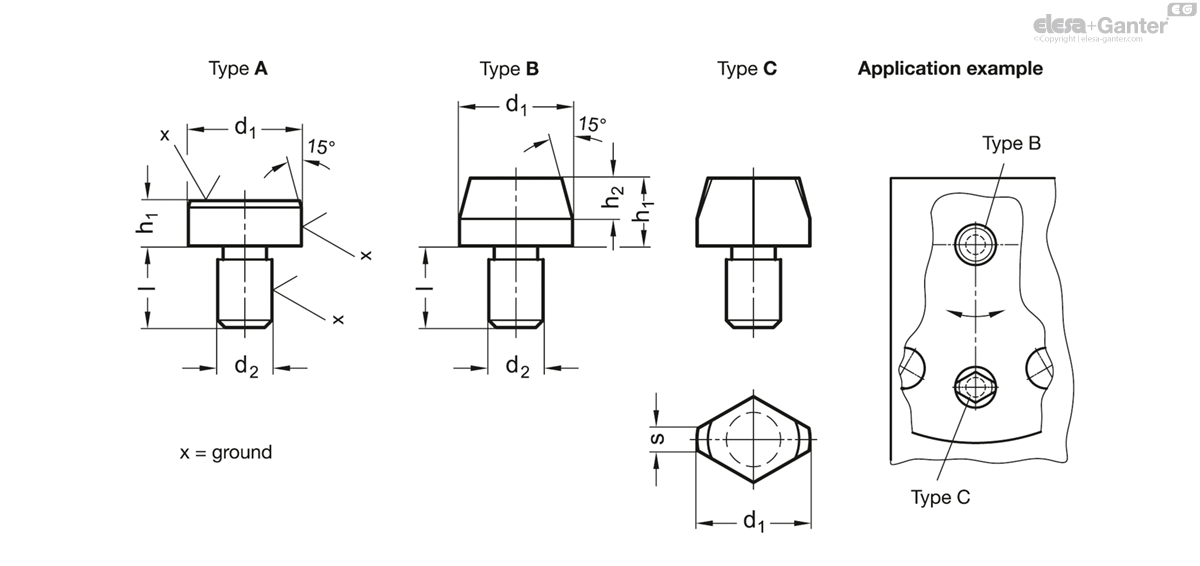

6321-8-16-C drawing

Types

  • Type A: Headed dowel, low type
  • Type B: Workholding bolt, high, cylindrical
  • Type C: Workholding bolt, high, flattened

Steel

  • hardened
  • blackened

Type A

with centre hole on the bottom

Type B / Type C

with centre hole, on both sides

Workholding bolts DIN 6321 are inserted into bores for positioning, assisted by the flattened design (Form C) to compensate tolerances in the spacing of two bores. Another application of this design is to fix parts to be positioned in one direction only.

Types A and B can also be used as bearing surfaces, stops or as foot.
