DIN 6321 Workholding bolts / Headed dowels

  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 6321

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 6321-8-16-C
d1 F7
8
d1 g6
8
h1 ±0.1
16
d2 n6
6
h2
6
l
9
s ≈
1.6
5

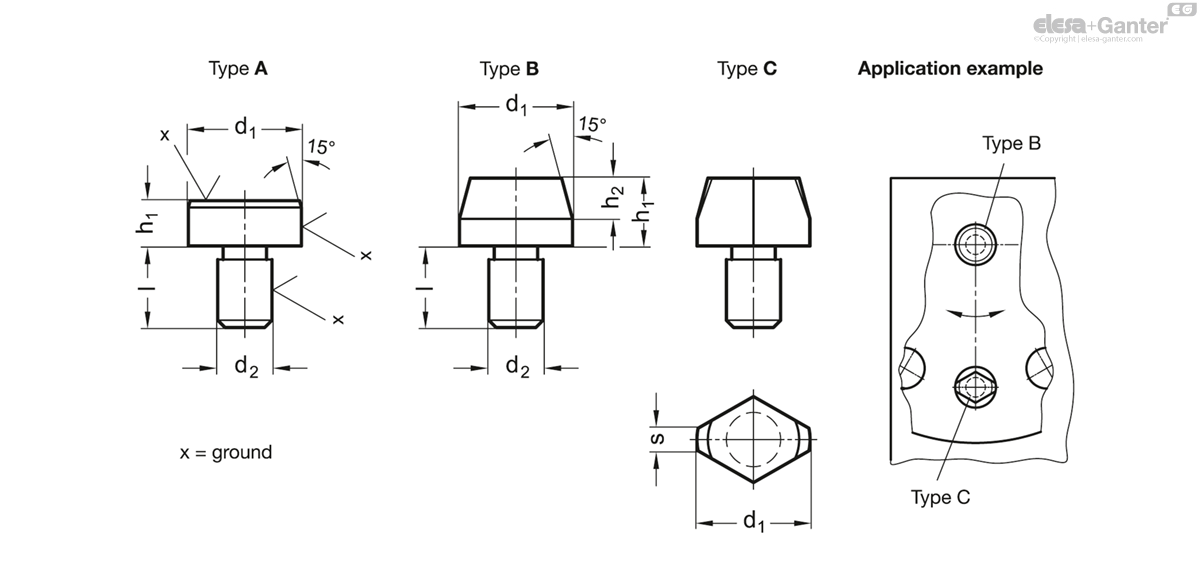

6321-8-16-C drawing

Types

  • Type A: Headed dowel, low type
  • Type B: Workholding bolt, high, cylindrical
  • Type C: Workholding bolt, high, flattened

Steel

  • hardened
  • blackened

Type A

with centre hole on the bottom

Type B / Type C

with centre hole, on both sides

Workholding bolts DIN 6321 are inserted into bores for positioning, assisted by the flattened design (Form C) to compensate tolerances in the spacing of two bores. Another application of this design is to fix parts to be positioned in one direction only.

Types A and B can also be used as bearing surfaces, stops or as foot.
