330-M12X1-8-W-5 GN 330 Câbles avec couplage de connecteur

330-M12X1-8-W-5

GN 330 Câbles avec couplage de connecteur

  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 330

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 330-M12x1-8-W-5
Connector
M 12 x 1
Number of contacts
8
l1 in m cable length
5
d2
15
l3
31.5
l4
26.5
250

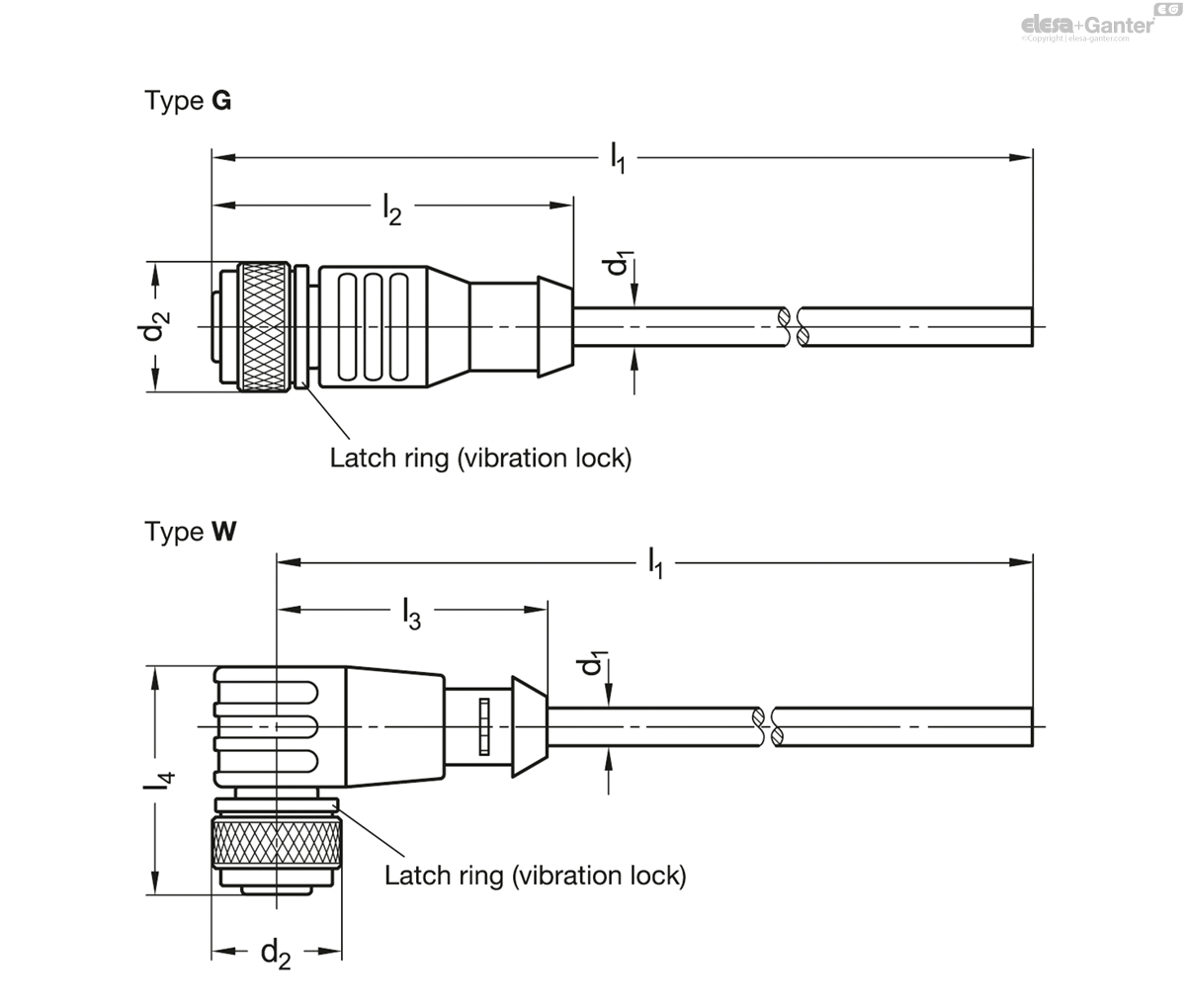

330-M12X1-8-W-5 drawing
video

Types

  • Type G: Connector coupling straight
  • Type W: Connector coupling 90° angled

Handle (Housing)

Plastic

Polyurethan-Elastomer TPU

Cable (Outer sheath)

Polyurethan PUR

black

Temperature resistance: -40 °C ... +90 °C

Insulating resistance: > 109 Ω

Degree of pollution: 3 / 2

according to EN 60664-1

Protection class: IP67

(in screwed condition)

according to EN 60529

Connecting nut M8x1 / M12x1

Brass, nickel plated

Cables with connector coupling GN 330 are used in conjunction with standard elements which have an electric switching function.

  • other cable lengths l1
Cable with plug-in connectord Outside diameterCross-sectionOperating voltage acc. to IEC 60 664-1Current load rating acc. to IEC 60512-3Contact assignment
3-pole (3-wire) with M8x143 x 0.25 mm2max. 60 V4 A____logo__330_SB-35084-0__
4-pole (4-wire) with M8x14.34 x 0.25 mm2max. 60 V4 A____logo__330_SB-38181-0__
4-pole (4-wire) with M12x154 x 0.34 mm2max. 250 V4 A____logo__330_SB-20715-0__
5-pole (5-wire) with M12x155 x 0.34 mm2max. 60 V4 A____logo__330_SB-20717-0__
8-pole (8-wire) with M12x168 x 0.25 mm2max. 30 V2 A____logo__330_SB-20716-0__
12-pole (12-wire) with M12x1612 x 0.14 mm2max. 30 V1.5 A____logo__330_SB-20704-0__

This adaptable cable, suitable for drag chains, features and outer jacket made of PUR and a core insulation made of polypropylene. It is free of PVC, silicon and halogens. UL and CSA approvals are available.




The cable is also resistant to oil, chemical, hydrolysis, microbes and welding sparks and flame retardant under IEC 60332-2-2 which makes the cable the perfect choice in many applications.
