ME.65 ME. Manivelles équilibrées

ME.65

ME. Manivelles équilibrées

Duroplaste
  • Icons/__logo__PA__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__PF__.png
  • Icons/__logo__g90__.png
  • Icons/__logo__g11020__.png
  • Icons/__logo__ELE_OD__.png
  • Icons/__logo__IF79__.png

Délai: 1-2 semaines Toutes les tailles et variantes de ME.

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
38001
dH7
8
L
65
d1
13
d2
14
l
23
l1
18
l2
22
l3
19
h
13
h1
1.5
h2
6.5
H
40
m
M6
R
23
97

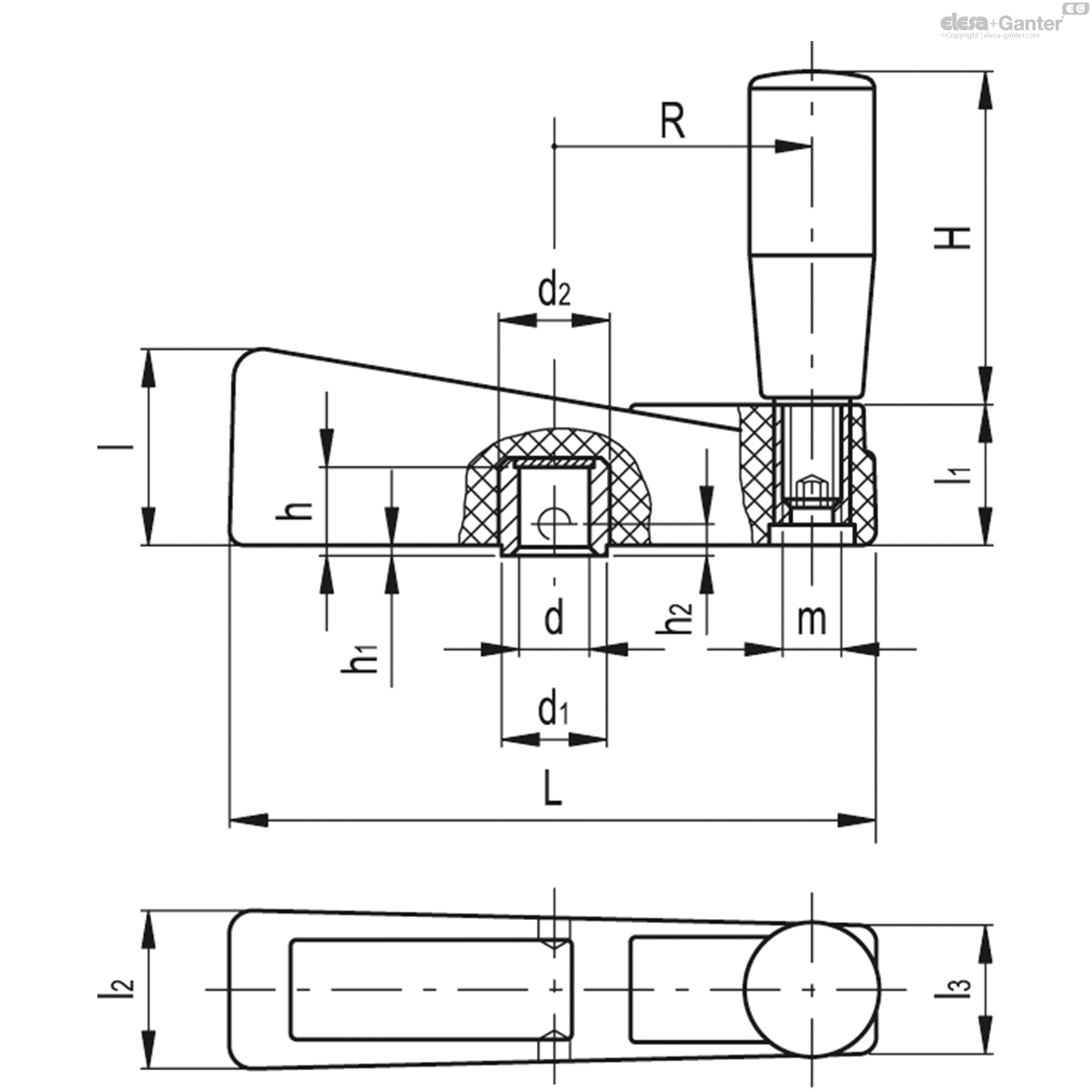

ME.65 drawing

Material

Reinforced phenolic based (PF) Duroplast. Polyamide based (PA) technopolymer for ME.95, black colour, glossy finish. Balancing by means of an incorporated counterweight

Front plate

Matte anodised aluminium (ELESA original design).

Standard execution

Black-oxide steel boss, H7 reamed hole. Reamed hole provided with centres already drilled for pinning to shaft. Use pins with smaller diameter than the one of the already drilled hole to avoid local stress.

Revolving handle I.301+x in Duroplast.
