ME.65 ME. Balanced crank handles

ME.65

ME. Balanced crank handles

Duroplast
  • Icons/__logo__PA__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__PF__.png
  • Icons/__logo__g90__.png
  • Icons/__logo__g11020__.png
  • Icons/__logo__ELE_OD__.png
  • Icons/__logo__IF79__.png

Eta: 1-2 weeks All sizes and variants of ME.

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
38001
dH7
8
L
65
d1
13
d2
14
l
23
l1
18
l2
22
l3
19
h
13
h1
1.5
h2
6.5
H
40
m
M6
R
23
97

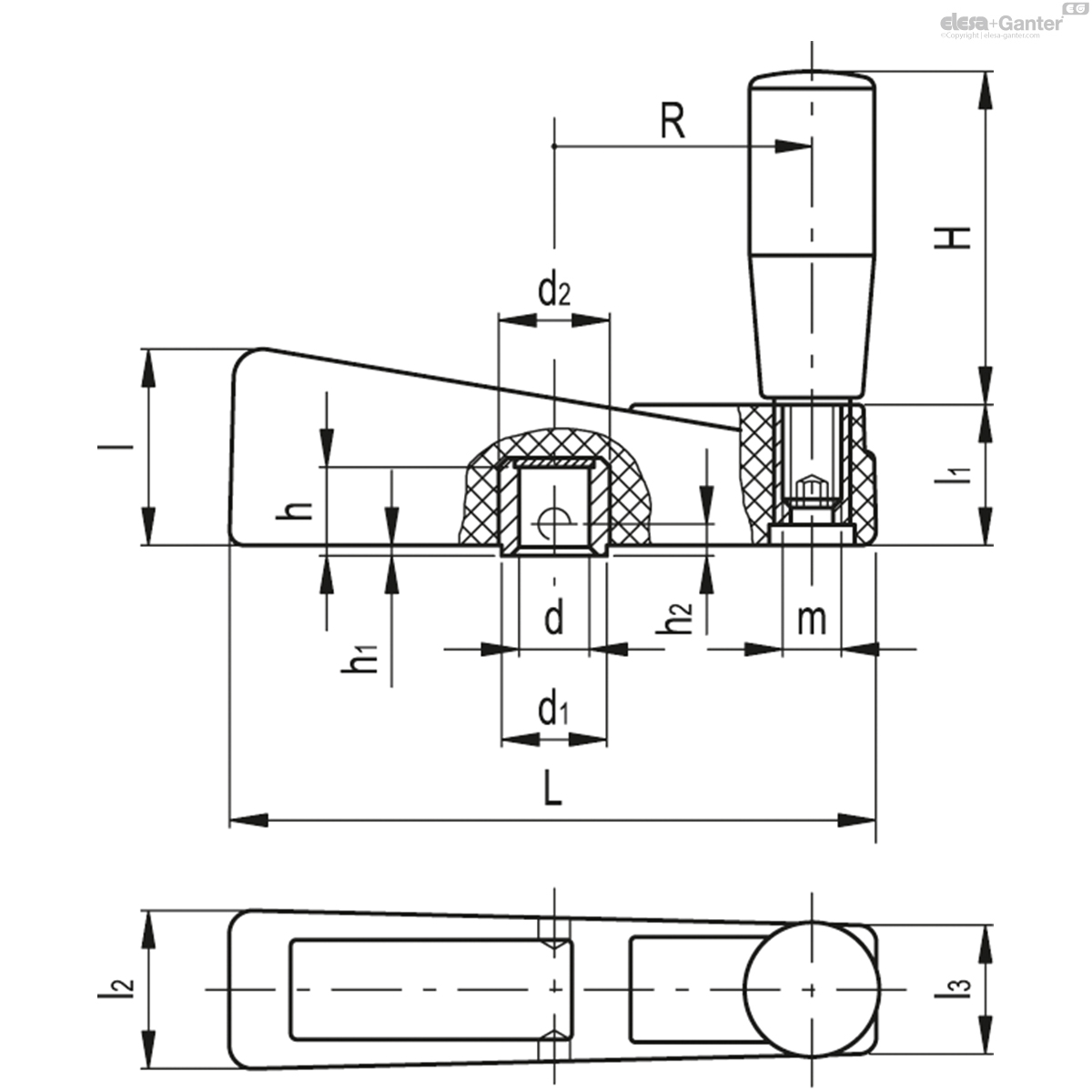

ME.65 drawing

Material

Reinforced phenolic based (PF) Duroplast. Polyamide based (PA) technopolymer for ME.95, black colour, glossy finish. Balancing by means of an incorporated counterweight

Front plate

Matte anodised aluminium (ELESA original design).

Standard execution

Black-oxide steel boss, H7 reamed hole. Reamed hole provided with centres already drilled for pinning to shaft. Use pins with smaller diameter than the one of the already drilled hole to avoid local stress.

Revolving handle I.301+x in Duroplast.
